Product Specifications
| Prod Model: |
CY47IINPS/CY56IINPS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Two Colors Offset Printing Machine |
| Printing Speed: |
8000 |
| Printing Color: |
Monochrome Machine |
| Type: |
Offset Printing Machine |
| Motor Power (',KM/HP): |
1.3 |
| Printing Paper Size: |
Sheet-Fed |
Product Description

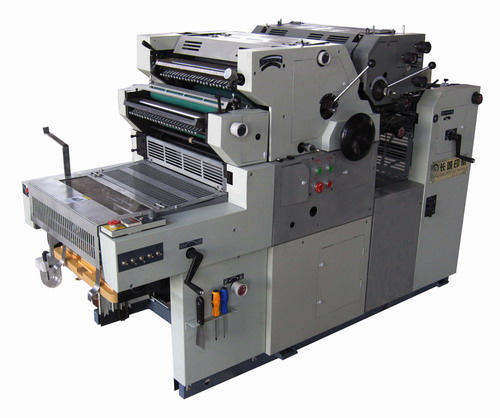

CY56IINPS two colors offset printing machine can be used by small or medium printing factory. Usage: Print test papers, notebooks, bills, flyers, pressure-sensitive adhesive and concise albums.
PROFILE OF CY47IINPS, CY56IINPS TWO COLORS OFFSET PRINTING MACHINE
1. Easy operation: Dampening, inking and pressing are operated by one handle at different level. The pressing cylinder on/off is controlled by Electric-Eye exactlyly and reliably.
2. Exact registration: Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment, plate cylinder registration of up/down.
3. Dampening and inking separated: Dampening system is separated from inking system, which can adjust dampening and inking flexibly and content the requirement of different printing items for dampening and ink.
4. Presetted counter: This machine adopts electromagnetic presetted counter. If the quantited printing work finishes, the paper feeding stops automatically.
5. Double sheets detection: It can avoid the problem such as double sheets, paper overlap and non-stop.
6. The whole machine is controlled by PLC with the function of automatic stop if paper jam.
7. Our company produces 47 series and 56 series offset printing machine, including A-type, II-type. The NP machine of various models. Most of macchines can be installed second color printing device.
8. Advanced quick plate clips.
|
Model |
CY47 II NPS |
CY56 II NPS |
|
Max. printing size |
460 × 345mm |
550 × 375mm |
|
Max. sheet size |
470 × 365mm |
560 × 390mm |
|
Min. sheet size |
210 × 297mm |
210 × 297mm |
|
Plate size |
470 × 380 × 0.15mm |
560 × 420 × 0.15mm |
|
Blanket size |
470 × 420 × 1.95mm |
560 × 460 × 1.95mm |
|
Usable paper |
28-250g/m² |
28-250g/m² |
|
Ink roller |
14pcs (3 forme inking rollers) |
14pcs (3 forme inking rollers) |
|
Dampening roller |
5pcs (2 forme dampening rollers) |
5pcs (2 forme dampeninging rollers) |
|
Numbering device |
Straight type(horizontal): 49 heads Max.
(7 heads on a ring × 7 rings on a shaft) |
Straight type(horizontal): 56 heads Max.
(7 heads on a ring × 8 rings on a shaft) |
Convex type(vertical): 40 heads Max.
(5 heads on a ring × 8 rings on a shaft) |
Convex type(vertical): 45 heads Max.
(5 heads on a ring × 9 rings on a shaft) |
|
Letter press device |
Cylinder type: 90 × 345mm Max. |
Cylinder type: 90 × 345mm Max. |
|
Mounting ring type: 30 × 40mm Max. |
Mounting ring type: 30 × 40mm Max. |
|
Perforating device |
Cross perforation:Min 25mm |
Cross perforation:Min 25mm |
Vertical perforation: 5mm(blade-perfo type)
2cm(rotary-perfo type) |
Vertical perforation:5mm(blade-perfo type)
20mm(rotary-perfo type) |
|
Ink rollers of NP device |
6pcs (2 forme rollers) |
6pcs(2 forme inking rollers) |
|
Printing speed |
2000-7000 sheet/hour |
2000-8000 sheet/hour |
|
Power supply |
Single-phase: 220v,50Hz |
Single-phase: 220v,50Hz |
|
Main motor |
0.75kw |
1.50kw |
|
Air pump motor |
0. 55kw |
0.55kw |
|
Machine dimension |
1730(L) × 900(W) × 1200(H)mm |
1760(L) × 970(W) × 1340(H)mm |
|
Net weight |
1000kg |
1200kg |
|
Package dimension |
2100(L) × 1000(W) × 1450(H)mm |
2100(L) × 1150(W) × 1450(H)mm |
|
Gross weight |
1070kg |
1300kg |
Weifang Changcheng Precision Machinery Co., Ltd. is the only professional manufacturer of making entinel- steel machinery for the Ministry of Construction Steel Structure Association. The company is located in Weifang econimic and technological development district, which covers 75 acres, 30 million Yuan in fixed assets, 300 stuffs including more than 120 professional and technical personnel. From last decade to now, the company is committed to the research and development of Offset Printing for China light industry, and has developed to produce more than 10 models of offset press printer such as CY47 series, CY56 series, CY62, CY1650, CY452C, CY1520, single-combined computer bill production lines. Our company has the supply capacity of 2000 units one year. We have set up sales offices and sell service sites. Composite index ranks top 10 in the same industry.
We adhere to the quality slogan that "leading technology to create high-quality brand of the Great Wall. Be more and more excellent to making products satisfied for customers". We have perfact quality management system, and passed the ISO9001: 2000 international quality management system certification. We pay more attention to Post-sale service, and we has set uo tech-training office which is free to general customers for training operation personnel.
Our company will be always to make contribution to all new and old customers' career success and the development of Chinese printing industry.
