Product Specifications
| Prod Model: |
CY247II / CY256II |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Two Colors Offset Printing Machine |
| Printing Speed: |
8000 |
| Type: |
Sheetfed Automatically Plane Offset Press |
| Printing Color: |
Double-Color Machine |
| Motor Power (',KM/HP): |
2.05 |
| Printing Paper Size: |
Sheet-Fed |
Product Description

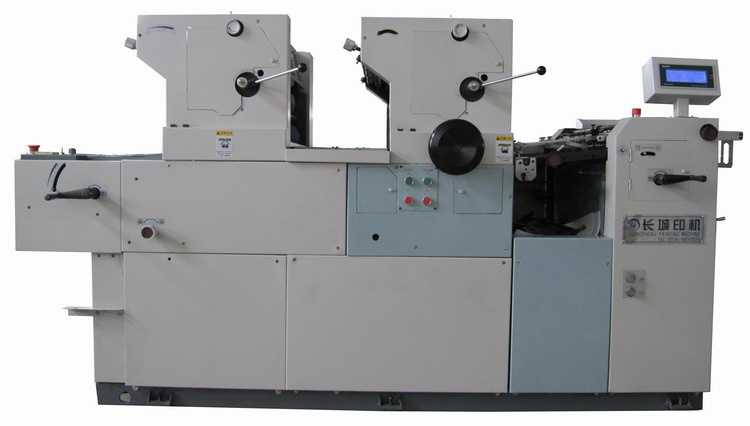

PROFILE OF CY247II / CY256II TWO COLOURS OFFSET PRINTER
1. Easy operation: The machine adopts pneumatic clutch supported by air pump. The touch screen let operation very easy.
2. Exact registration: Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment, plate cylinder registration of up/down.
3. Quick plate registeration: The plate can be moved axially, which make registration convenient.
4. Dampening and inking separated: Dampening system is separated from inking system, which can adjust dampening and inking flexibly and content the requirement of different printing items for dampening and ink. This is good for multicolours printing.
5. Presetted counter: This machine adopts electromagnetic presetted counter. If the quantited printing work finishes, the paper feeding stops automatically.
6. Double sheets detection: It can avoid the problem such as double sheets, paper overlap and non-stop.
7. The whole machine is controlled by PLC. There are functions such as auto press, auto stop while paper jam, powder jet, step forward and backward. Ink auto supply system let the colour of printing be more uniform.
8. II-class: There are forme 3 inking rollers and 2 forme dampening rollers. We improved the order of inking rollers. Three ink vibrators can drives fastly back and forth. Thus the inking supply can be transferred fastly and uniform.
|
Model |
CY247II |
CY256II |
|
Max. printing size |
460 × 345mm |
550 × 375mm |
|
Max. sheet size |
470 × 365mm |
560 × 390mm |
|
Plate size |
470 × 395 × 0. 15mm |
560 × 420 × 0. 15mm |
|
Blanket size |
470 × 420 × 1. 95mm |
560 × 460 × 1. 95mm |
|
Usable paper |
28-250g/m² |
28-250g/m² |
|
Ink roller |
14pcs (3 forme inking rollers) |
14pcs (3 forme inking rollers) |
|
Dampening roller |
5pcs (2 forme dampening rollers) |
5pcs (2 forme dampening rollers) |
|
Molleton |
thick: 76 stitches; thin: 44stitches |
thick: 76 stitches; thin: 44stitches |
|
Printing speed |
2000-8000 sheet/hour |
2000-8000 sheet/hour |
|
Power supply |
single-phase: 220v, 50hz |
single-phase: 220v, 50hz |
|
Main motor |
1. 5kw |
1. 5kw |
|
Air pump motor |
0. 55kw |
0. 55kw |
|
Machine dimension |
2350(L) × 880(W) × 1350(H)mm |
2350(L) × 950(W) × 1350(H)mm |
|
Net weight |
1150kg |
1330kg |
|
Packing case dimension |
2450(L) × 1000(W) × 1450(H)mm |
2450(L) × 1100(W) × 1450(H)mm |
|
Gross weight |
1250kg |
1430kg |
Weifang Changcheng Precision Machinery Co., Ltd. is the only professional manufacturer of making entinel- steel machinery for the Ministry of Construction Steel Structure Association. The company is located in Weifang econimic and technological development district, which covers 75 acres, 30 million Yuan in fixed assets, 300 stuffs including more than 120 professional and technical personnel. From last decade to now, the company is committed to the research and development of Offset Printing for China light industry, and has developed to produce more than 10 models of offset press printer such as CY47 series, CY56 series, CY62, CY1650, CY452C, CY1520, single-combined computer bill production lines. Our company has the supply capacity of 2000 units one year. We have set up sales offices and sell service sites. Composite index ranks top 10 in the same industry.
We adhere to the quality slogan that "leading technology to create high-quality brand of the Great Wall. Be more and more excellent to making products satisfied for customers". We have perfact quality management system, and passed the ISO9001: 2000 international quality management system certification. We pay more attention to Post-sale service, and we has set uo tech-training office which is free to general customers for training operation personnel.
Our company will be always to make contribution to all new and old customers' career success and the development of Chinese printing industry.
