Dongguan Yihui Optoelectronics Technology Co., Ltd. >> Two Dimensional Measuring Software (VMS-4030E)

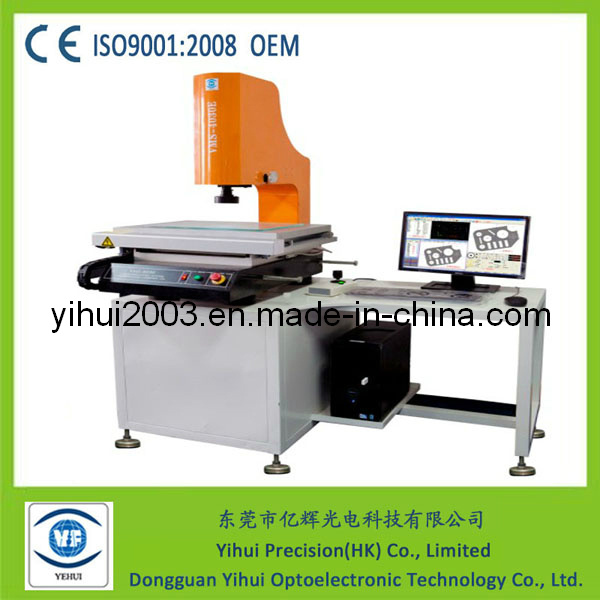

Two Dimensional Measuring Software (VMS-4030E)

Name: Two Dimensional Measuring Software (VMS-4030E)
Brand: china-manufacturer-directory.com
SKU: 710266555
Availability: InStock
Rating: 4.7 (62 reviews)

Supplier:	Dongguan Yihui Optoelectronics Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	VMS-4030E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Two Dimensional Measuring Software:	Use for Two Dimension Precision Measurement
Color:	Blue and Orange
Material:	Steel, Granite
Measuring Range:	400X300X150mm
Accuracy:	3+L/200um
Resolution:	0.0005mm
Warranty:	12 Months
Factory Location:	Dongguan
Certification:	ISO9001, CE
Weight:	100-500Kg
Power Source:	AC220V
Type:	Dimension Measurement

Product Description

Two Dimensional Measuring Software (VMS-4030E)

Usage:
*To measure two coordinates areas;
*Automatic measurement & suitable for batch inspect;
*Use to machinery, electronics, ironware, instruments, plastics industries and so on.

Feature:
1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.

2. It can rapid detection of large quantities of same workpieces to achieve a one-time complete the whole measurement, improve the measurement efficiency.

3. Measurement data directly input into AutoCAD and become a full work circle; The data also can be entered in Excel and Word to conduct statistical analysis.

Guarantee: 12 months warranty. Buy with confidence!

Welcome to contact us and visit our factory! ! !

Model		VMS-2515E	VMS-3020E	VMS-4030E	VMS-5030E
Worktable	The meta table's size(mm)	450 x 280	500x330	606x466	706x466
	The glass table's size(mm)	306x196	350x280	450x350	550x350
	Measuring range(mm)	250x150	300x200	400x300	500x300
Weight(Kg)		220	270	320	420
Dimensions(LWH)(mm)		670x660x950	720x950x900	760x950x900	720x950x1020
Measuring accuracy(um)		3+L/200um(L is the length of workpiece,unit: mm)
Resolution(mm)		0.0005mm
Measuring Targeting System(Standard Accessories)		Camera: original TEO 1 / 2''Color CCD Zoom lens: original U.S. NAVITAR lens Professional automatic 2D measurement software
		Zoom lens magnification: 0.7 ~ 4.5X WD:92mm
		Video Total Magnification: 30 ~ 190X Object view:7~1.1mm
		Full mouse / joystick operate Z-axis travel (mm):150mm
Lighting: Surface light and transmission light are used LED,brightness adjustable Power:220V(AC),50Hz,30W

Dongguan Yihui Optoelectronics Technology Co., Ltd. was established in 2003, which is a high-tech enterprise with the precision measuring equipment R&D, prodution and sales. Our main products are: Video measuring machine, optical projectors, CMM, tool microscope etc. It is widely used in electronics, plastics, mold, machinery, hardware, clocks and connectors, mobile and other industries.

At present, our company have passed ISO9001 and CE Certificate. What's more, we has more than 30 design patents, and got the sofware copyright registration certificate awarded by the state intellectual property office.

"Customer oriented, quality first, standardized management, continuous transformation" is our company's operating philosophy. Base on leading technology, excellent quality and scientific management makes our company recognized by our customers.

Our Target: No Difficult Products To Test In The World!
