Product Specifications
| Prod Model: |
xkp-560 two-roller crakcer mill |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Material Processing Machine |
| Type Of Tire Machinery: |
Rubber Regeneration Machinery |
| Product Name: |
Rubber Cracker Mill |
Product Description

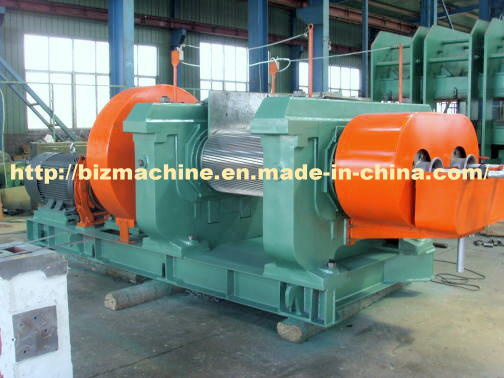

Usage: The cracker mill is mainly used to grinding waste rubber, tire, tube, flap and break the raw rubber materials.
Features:
1. The rolls are made of chilled cast iron, the surface is hard and wearable, the internal processing can make the temp. Of the roll surface well-proprotioned.
2. The machine has overload protection device. And the major components cannot be damaged because of overloading.
3. The machine is equpped with emergency braking device. When an emergent accident happens, draw the pull rod, and then the machine will stop at once. It is safe and reliable.
4. The transmission system adopts either hard tooth flank dual axis reducer or NGW hard tooth flank planet reducer, which has compact structure, low noise and high efficiency.
5. The base of the machine is a complete frame, so it. S very convenient for installation.
Technical specification:
Model xkp-450 xkp-560
Dia. Of front roll(mm): 450 560
Dia of rear roll(mm): 450(groove roll) 510
Working length of rolls (mm): 650mm 800
Linear speed of front roll(m/min): 23.2 25.56
Friction ratio: 1: 1.38 1: 1.30
Max. Gap: 8 15
Capacity: (kg/h): 600-800 ~1500
Motor power(kw): 55 75
Overall size LXWXH(mm): 4770x1846x1835 5064x2284x1978
Weight(kg): 12000 19000
Qingdao Biz International Trade Co., Ltd. is a professional manufacturer and exporter of rubber and plastic machinery in China. Through over ten years' efforts, we have built up complete kinds of products, bought up a lot of experienced technicians and skilled workers with proficient technology. During the past years, we have produced and exported over10000 sets of machines and equipment to clients from all over the world, and helped them obtain great profit and grasped wonderful business opportunities.
We mainly produce and supply the following goods:
Rubber machines: plate vulcanizing presses, vacuum presses, two-roller mixing mills, sheeting mills, refining mills, cracking mills, rubber & plastic dispersion mixers, internal mixers, hot & cold-feeding rubber extruders, rubber calender lines, batch-off coolers, tire production machines, rubber conveying belt production lines, rubber extrusion microwave vulcanizing production lines, rubber salt-bath vulcanizing production lines and other machines
Plastic machines: various kinds of plastic pipe extrusion lines, various kinds of window profile extrusion lines, various kinds of plastic sheets, boards and film extrusion lines, various kinds of single and twin screw extruders and other related goods
Rubber products: all kinds of sealing rings, belt, strips, tubes, and tires
Chemical materials: carbon black, and reclaimed rubber
We can design and produce rubber products and non-standard machines and equipment according to the drawings and requirements of clients.
We have built up a good reputation in international markets and in rubber and plastic industry fields.
It is always our goal to provide satisfactory service to our customers with reasonable price, high quality product, accurate delivery time and all necessary assistance.
We look forward to hearing from you and developing together with you.
