145kv gis switchgear
1,2001 won"leading new product certificate"
2,2002 won technology prize
3,High safety
4,GB

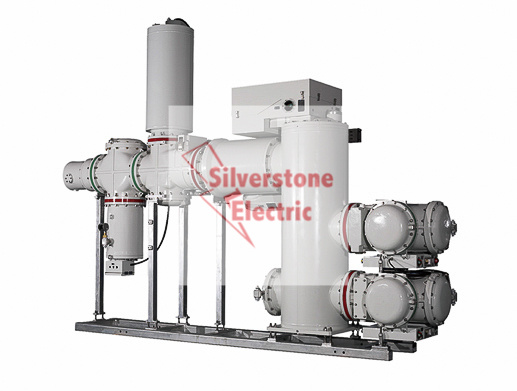

Type ZF23-126/T2000-40 Gas insulated metal-enclosed switchgear
Product Overview
Type ZF23-126/T2000-40 three-phase in one enclosure gas-insulated metal-enclosed switchgear is a kind of collective electric appliance which adopts SF6 as the insulation and arc-distinguishing medium.It consists of circuit breaker, combined disconnecting and grounding switch, high-speed grounding switch, current transformer, voltage transformer, arrester, inlet/outlet bushing, cable terminal and other high voltage electrical components.
Technical Parameters
No. |
Item |
Unit |
Parameter |
1 |
Rated voltage |
KV |
126 |
2 |
Rated frequency |
Hz |
50 |
3 |
Rated current |
A |
1250/1600/2000 |
4 |
Rated short circuit making current |
KA |
100 |
5 |
Rated short-circuit breaking current |
KA |
40 |
6 |
Rated short-time power frequency withstand voltage |
KV |
To earthing230,Across the isolating distance 230+73 |
7 |
Rated lightning impulse withstand voltage |
KV |
To earthing550,Across the isolating distance 550+103 |
8 |
4s rated heat-stabling current |
KA |
40 |
9 |
Rated dynamic stable current |
KA |
100 |
10 |
Rated operating sequence |
S |
O-0.3-CO-180 |
11 |
Rated SF6 pressure (22°C gage pressure) |
MPa |
Circuit breaker room:0.6,other room 0.5 |
12 |
Rated control voltage |
V |
DC 110 or 220 |
13 |
Machinery life |
Time |
Circuit breaker:10000,Disconnectors and earthing switches:2000 |
