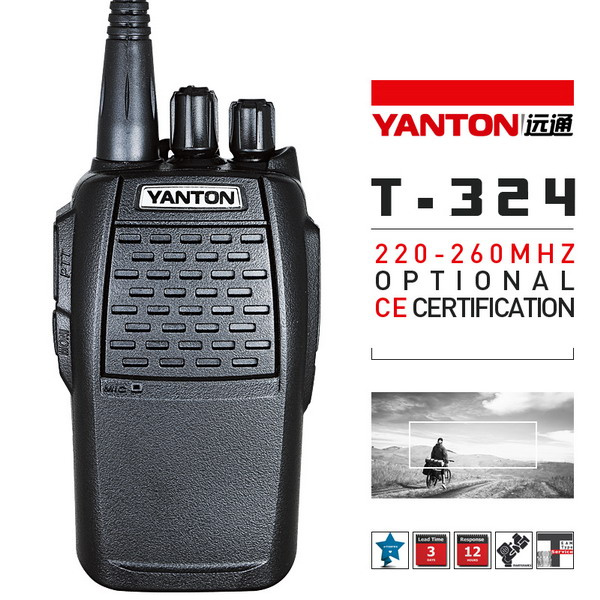

Professional two way radio manufacture-----------------more than 15year----------FCC, CE, KCC----------made in China YANTON------- UHF &VHF Frequency Range Two Way Radio (YANTON T-324)
**************************************************************
The main feacture of T-324 as follow:
1. Frequency Range: 136-174/220-260/ 400-480/450-520MHz.
2.16 channels
3. Output power: 5W
4. PC software programmable, Encrypted programming software
5. CTCSS/DCS
6. Chinese and English voice prompt
7. Power saving function
8. High/low power selective
9. Wide/narrow bandwidth selective
10. Busy channel lock
11. Transmitter time-out timer(TOT)
12. DTMF functions
13. Remote kill/stun
14.1500mAh battery
Shiping and payment as below:
1. Please contact us at first time for bulk order. Larger discount waits for you.
2. OEM service, we can design packing box and Logo mark as your requirement.
3. Sample time: 7 days
4. Payment: T/T, Western union, paypal.
5. Warranty: One year for main body radio, 6 month for accessories
6. Lead time: 3 days for 500 units, 15 days for 2000units
7. Shipment way: By sea or by air
Model | T-324 |
| GENERAL | Frequency Range | 400-480MHZ |
| Number of Channels | 16 |
| Working Voltage | 7.4V LI-ION |
| Working Temperature | -20°C~+60°C |
| Frequency Stability | ±2.5ppm |
| Size(H*L*W) | 111*54*34mm |
| Weight | 210kg |
| TRANSMR | Power Output | 5W |
| Modulation | F3E |
| Radiation | <-60dB |
| Power | >55/65dB |
| Modulation Limit | ±2.5/5KHz |
| Distortion | ≤5% |
| Noise Response | 34/40dB |
RECEIVER | Sensitivity | <0.20µV |
| Neighbour Channel Selectivity | ≥60/70dB |
| Noise Response | ≥65/70dB |
| Audio Power | 500mW |
| Audio Distortion | ≤5% |
| Intermodulation Distortion | ≥60dB
|
Detailed pictures:
Shipping and payment
1. Please contact us at first time for bulk order. Larger discount waits for you.
2.OEM service,we can design packing box and Logo mark as your requirement.
3.Sample time:7 days
4.Payment:T/T,Western union, paypal.
5.Warranty:One year for main body radio,6 months for accessories
6.Lead time:3 days for 500 units, 15 days for 2000units
7. Shipment way: By sea or by air
Why choose us?
1. Reply your inquiry in 24 working hours.
2. Well trained experienced staff reply all your questions.
3. Customized design is available, OEM are welcomed.
4. Fast delivery to customers all over the world after deposit.
5. 100% QC inspection before shipment.
6. One year warranty for radios, six month for accessories.
7. Excellent after-sales service.
Maintenance:
Radio transceiver should be treated with care. The suggestions below will help you to fulfill any warranty obligations and to enjoy this product for many years.
Do not attempt to open the unit. Non-expert dealing with the unit may damage it.
When using regulated power supply, take notice of power voltage must be between 6V and 8V to avoid damage the radio
Do not store the radio under the sunshine or in hot areas. High temperatures will shorten the life of electronic devices, and warp or melt certain plastics.
Do not put the radio in dusty, dirty areas.
If it appears that the radio diffuses peculiar smell or smoke, please turn off it immediately and take off charger or battery in the radio, then contact with YANTON agency.
Do not transmit without anten
Company Information
About us:
Quanzhou YANTON Electronics Co.,Ltd is a professional radio manufacturer and exporter ,which has integrated in R & D, production, sales and service for seven years. Because of products innovation and production efficiency,we win a lot of OEM and ODE orders.Some of products have been gained FCC, CE SIRIM certification,and we have gained high reputation from our customers.
Quanzhou YANTON Electronics Co., Ltd. Has been a professional two way radio manufacturer integrating in R&D, Production, sales and service for Seven years. Our company has created and owned its famous brands such as YANTON and LSENG.
Our company has introduced advanced equipments in the world such as American HP8921, Germany Rohde & Schwarz SMC-50. We own standard production workshop, product laboratory and R&D room. We offer the cost effective products, and help our customers win the competitive advantage in the price and quality in the market.
Our company has 10 people of QC staff, 15 people of R&D staff, and 5 people of IQC staff. They have more than 5 years of work experience. We focus on new product innovation and quality control, and we invest 40% of profit in new product development. We have got a lot of OEM/ODM orders because of product innovation and efficiency.
We strictly implement ISO9001 quality management system, and we strictly check from raw material purchase, production and finished product testing, which can ensure high stability and consistency of products. Our products has been awarded "radio transmitting equipment and model approval", and also has got FCC, CE, SIRIM Certification. We have agents in many city and has exported to Malaysia, Vietnam, Middle East, Europe, USA and other countries. We have obtained high reputation from our users, distributors, agents for our good products and good sale service.
Let us work together to create a better tomorrow!
