Product Specifications
Product Description
Brief introduction

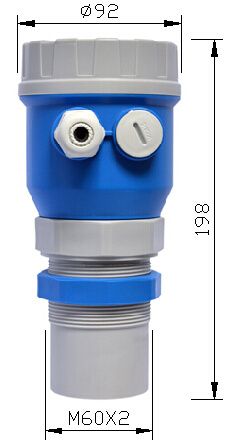

Ultrasonic level meter of two wires serial is a sealed transducer best suited for applications where harsh or hazardous environments are a problem. Been made of energy conservation components, Only two wires are enough to supply power and acquire the measured value. LED display is convenient for onsite setting.
Application
Wastewater treatment
Proximity Detection
Sedimentation pool
Coal washing process
Obstacle detection, collision avoidance
General-purpose distance detection
Features
High precise
Strong anti-interference
Automatic temperature compensation
Specification:
Full scale: 5m, 8m, 10m, 15m
Unusable area: <0.4m, <0.5 m
Frequency: 20 kHz~200.0 kHz
Output signal: 4~20mA
Power: DC 24V
Power consumption: <0.8W
Load impedance: 0-1Kω
Min display resolution: 1mm
Max measure error: 0.3%× Full scale
Ambient temperature: -10~60
Ambient pressure: Normal condition
Humidity: 0 to 95%
Admission cable: 1.5m
Keyboard: 3 sensitive metal piece key
Material: ABS for cover, PP for transducer
Fix model: M61
Protection degree: IP65
Since 2006, Chongqing Zhaozhou Technology Development Co., Ltd. has being used advanced technology to solve difficult sensing/control problems in a broad range of industries. We are specializing in ultrasonic instrument for industry manufacturing and automatic industry, and we have accumulated quite a lot of technology experience for products exploitation and some patents for special products. Our products including ultrasonic level meter, ultrasonic flow meter, ultrasonic consistence meter, etc. And the application area of our products include Paper producing, Mining, Reservoir, Petroleum, water treatment, Obstacle detection, collision avoidance etc. Our production are popular in China, Indian, USA, Indonesia...
