| Supplier: | Xiuyan Precision Instrument Factory |
|---|---|
| Price: | Negotiable/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CIF,EXW |
|
|
| Prod Model: | U-100L-E |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: | China |
| Model Number: | RV-100L-E |
| Range: | 0 ~ 20m From The Arbitrary Choice |
| Accuracy: | 0.25%, 0.5% |
| Power: | 24vdc, 220vac |

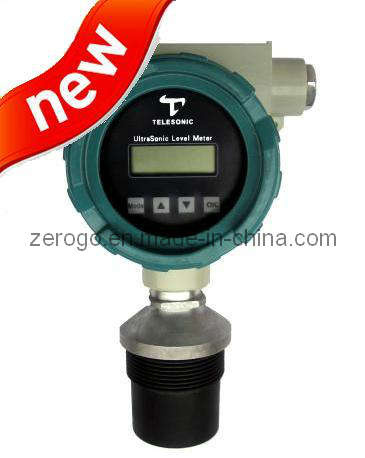

| The Specification of ultrasonic level meter explosion-proof | |
| Model | Ultrasonic level meter Explosion-proof |
| Range | 0 ~ 20m from the arbitrary choice |
| Blind spot | 0.3~0.5m |
| Accuracy | 0.25% |
| Display resolution | 1mm |
| Current output | 4-20mA, RS485 |
| Output Resolution | 0.03% of the actual range of |
| Output Load | 0 ~ 600Ω |
| Relay Output | Control limit and lower limit |
| Relay Specifications | 5A 250VAC/30VDC |
| Preferences | Thoughts on three key |
| Temperature | -20~55C |
| Pressure range | ± 0.1MPa, less than 4 MPa |
| Sound beam angle | 8o(3db) |
| Testing cycle | 1second |
| Shell material | Alumumium alloy |
| Sensor materials | PVC, PTFE |
| Protection class | IP67 |
| Installation | Flange or bracket, Thread |
| Power | 24VDC, 220VAC |
| Features |
* Cheap and cost effective. * Use of SMD technology to improve equipment reliability. * Automatic power adjustment, gain control, temperature compensation. * The advanced detection technology, rich software functionality to adapt to a variety of complex environments. * Waveforms calculated using the new technology to improve the instrument' s measurement accuracy. * Echo interference rejection capability with the measurement data to ensure true. * 16-Bit D / A conversion, increase current output of the precision and resolution. * Sensor PTFE material can be used for a variety of corrosive occasions. * A variety of output forms: programmable relay output, high precision 4-20mA current output, RS-485 digital communication output |
