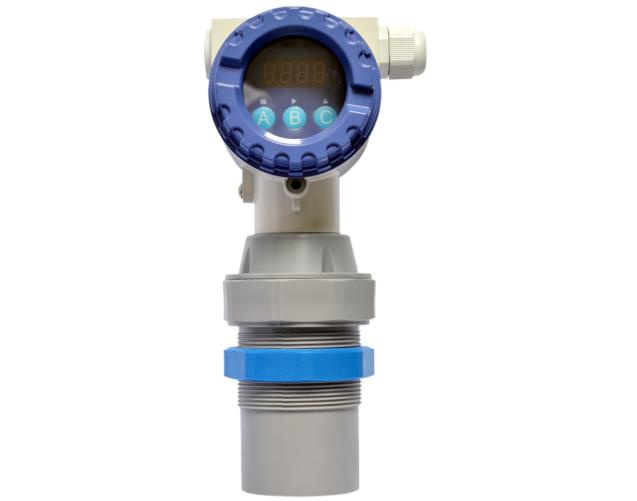

Ultrasonic Level Meter (MH-GA)
Product Specifications
| Prod Model: |
GD-GA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Range: |
0~15m |
| Unusable Area: |
<0.5m |
| Working Frequency: |
20kHz~200kHz |
| Shell Material: |
Cast Aluminum |
| Minimum Resolution: |
1mm |
| Install: |
Vertical |
| Medium Temperature: |
Cold Water |
| Level Measurement: |
B |
| Counter Instructions: |
Digital and Analogue |
| Nominal Diameter: |
50-100mm |
| Application: |
Industrial |
| Principle: |
Volumetric Meter |
| Medium Pressure: |
General Water Meter |
| Work Environment: |
Wet Water Meter |
Product Description
*Brief introduction
MHz ultrasonic level meter realizes high digital, communication between machine and human. The CPU applies import industry monolithic integrated circuit, digital temperature compensation and wide voltage input. You can select analog, switch or RS485 serial signal output. Owning the advantage that there is no need to contact the measured medium; it could supply more precise and longer work life.
*Applications:
Proximity Detection
Robot range finder
Sedimentation pool
Coal washing process
Obstacle detection, collision avoidance
General-purpose distance detection
Wastewater treatment
*Features
High precise
Non-invasive
Strong anti-interference
Automatic temperature compensation
Selectable output way
Substantially improved long-term stability
*Specification:
Full scale: 5m, 8m, 10m, 12m, 15m
Unusable area:≤0.4~0.5m
Max measure error: 0.3%×full scale
Power: 12-24VDC
Power consumption: <1.5W
Output signal: 4~20mA (other output is optional)
Max load impedance: 300Ω
Display panel: LED /LCD
Material: ABS
Fix model: M60X2 or ¢61MM
Dimension:Φ92mm×198mm×M60
Admission cable: 1.5m
Protection degree: IP65
Humidity: 0 to 95%
Ambient temperature:-10ºC~60ºC
Ambient pressure: normal condition
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd is a high-tech enterprise for researching, designing, developing and producing scientific and measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil tester, electric tester, laboratory instrument, road building instrument and geophysical equipment.
Though highly acclaimed and favorably accepted by numerous customers and possessed of the right to import and export, to ensure the high quality of our products, we conduct our manufacturing in strict accordance with various standards of ISO, ASTM D, IP, GB etc. We have developed sales channels in many countries and regions such as Thailand, Philippine, Iran, Indonesia, Spain, Iceland, Chile, Regions of Southeast Asia, Middle East, Europe, North and South America etc, and have gained strong advantage and high reputation in international market.
We have persisted on the business idea of "Integrity Basis and Quality First" for the stable and constant development. We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity. Client, quality and service are our supreme target!
