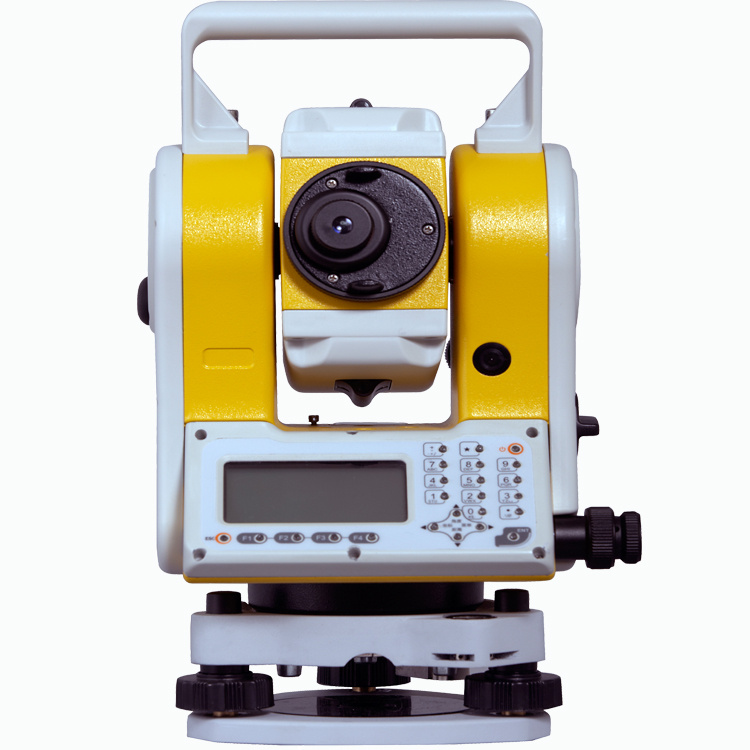

ZTS-360R Total Station
Compact and Lightweight Designed, easy to carry and setup. With powerful measurement module, Stable Dual-axis Compensation system, and Intelligent Calibration Software, ZTS-360R improves the speed and distance of measurement efficiently. Using STM32 architecture and high-grade dustproof and waterproof structure design, Comprehensively enhance the overall performance of ZTS-360R.
System Features
Compact, Lightweight Design
Rugged, compact design ensures the stability of every indicators of equipment and protect you from data loss on the harsh conditions.
Small size and light weight body make your work easily.
Quick Trigger Button
Measurement and record by pressing one quick trigger button, fast and convenient.
Stable Dual-axis Compensation
Simultaneous tilt compensation from horizontal and vertical angle makes sure the accurate measuring result, even when the body is rotating.
Vivid graphic electronic bubble display is available.
Upward Laser Pointing
Deviation from centre handle design makes upward laser pointing fast and easy, and no dead angle exists in upward measurement, which is significant for mining or tunneling application.
Powerful and Fast EDM Capability
600m Non-prism ranging.
Fine 0.8s, Track 0.3s in prism mode.
IP66 Dust and Water Protection
High standard IP66 performance provide protection from dust penetration and water driving.
Intelligent Calibration Software
The proprietary HI-TARGET Calibration software is accessible for real-time diagnosis to ensure trouble-free operation.
Software Compatibility
Compatible to the 3rd party data processing software, satisfying users' requirements for different data format.
| Technical Parameters |
| Angle Measurement | Method | Absolute encoder |
| Minimum Reading | 1″/5″/10″(selectable) |
| Angle Accuracy | 2″ |
| Telescope | Magnification | 30X |
| Field of View | 1°30′ |
| Shortest Focus Distance | 1.5m |
| Image | Erect |
| Compensation | System | Dual-axis |
| Working Range | ±3′ |
| Setting Accuracy | 1″ |
| Distance measurement | Reflector (IR) | Range | Single prism (good condition) | 3000m |
| Reflective sheet | 800m |
| Accuracy | 2mm±2ppm |
| Measuring | Repeat | 1s |
| Tracking | 0.5s |
| Reflector-less (RL) | Range | white board reflectivity 90% | 600m |
| Single Prism | >7500m |
| Accuracy | 3mm±2ppm |
| Measurement Time | 1.5s |
| General | Communication | Internal Data Memory | 20000 Points(SD card supported) |
| Interface | RS232, Mini-USB, USB |
| Data Format | ASCII |
| Operation system | Real-time English operating system |
| Display | 192×96 high-light LED screen, brightness adjustable in 3 level |
| Keyboard | 2 sides alphanumeric backlit crystal keyboard |
| Laser plummet | Type | Laser point, 4 brightness levels adjustable (Optical plummet is optional) |
| Centering Accuracy | 1 mm at 1.5m instrument height |
| Power supply | Battery Type | BT30 Li-ion battery |
| Voltage/Capacity | 7.4V 3400mAh |
| Operating time | 18 hours(continuous angle measurement every 30 seconds) |
| Measuring times | Approx. 12000 times |
| Weight | 3.8kg with battery |
| Environmental | Meteorological parameter modification | Manually(T-P senser is optional) |
| Operating temperature | -20ºC~+50ºC |
| Storage temperature | -40ºC~+70ºC |
Dust & Water proof
| IP66 |
| Characters | Zenith point measurement without removing the handle |
| Shortcut measurement key on the side, convenient for surveying |
| Small and light |
| Key define |
| Intelligent checking |
