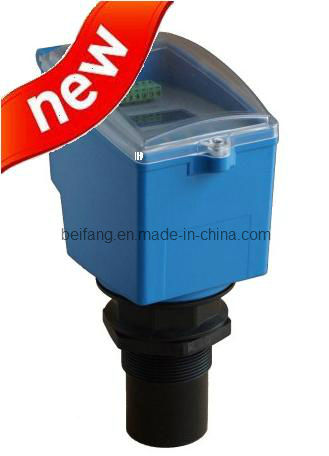

Ultrasonic Level Meter (U-100L)

Name: Ultrasonic Level Meter (U-100L)
Brand: China-Manufacturer-Directory.com
SKU: 684062972
Availability: InStock
Rating: 4.3 (40 reviews)

Supplier:	Xiuyan Precision Instrument Factory
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	U-100L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Ultrasonic level meter

1 Accuracy: 0.25%
2 Blind spot: 0.3~0.5m
3 Protection class: IP65
4 Range: 0---30m, 4-20mA

Including one-body type and splity type, Dual Point ultraosnic level meter

The Specification of Ultrasonic level meter
Model	Ultrasonic level meter
Range	0 ~ 20m from the arbitrary choice
Blind spot	0.3~0.5m
Accuracy	0.25%
Display resolution	1mm
Current output	4-20mA
Output Resolution	0.03% of the actual range of
Output Load	0 ~ 600Ω
Relay Output	Control limit and lower limit
Relay Specifications	5A 250VAC/30VDC
Preferences	Thoughts on three key
Temperature	-20~55C
Pressure range	± 0.1MPa, less than 4 MPa
Sound beam angle	8o(3db)
Testing cycle	1second
Shell material	ABS
Sensor materials	PVC
Protection class	IP65, IP68
Installation	Flange or bracket
Power	24VDC, 220VAC
Features	* Cheap and cost effective. * Use of SMD technology to improve equipment reliability. * Automatic power adjustment, gain control, temperature compensation. * The advanced detection technology, rich software functionality to adapt to a variety of complex environments. * Waveforms calculated using the new technology to improve the instrument' s measurement accuracy. * Echo interference rejection capability with the measurement data to ensure true. * 16-Bit D / A conversion, increase current output of the precision and resolution. * Sensor PTFE material can be used for a variety of corrosive occasions. * A variety of output forms: programmable relay output, high precision 4-20mA current output, RS-485 digital communication output
