Ultrasonic Open-Channel Flow Meter (A+E 80FG)
Product Specifications
| Prod Model: |
A+E 80FG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Range: |
0.1m3/S~10m3/S |
| Dead Zone: |
0.25m~0.5m |
| Resolution: |
1mm |
| Range: |
0~3m |
| Accuracy: |
>?à1% |
| Main Application: |
Wastewater |
| Sensor: |
Tube/Flange |
| Type: |
Ultrasonic Flow Meter |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Acoustics |
| Application: |
Industrial, Environmental |
Product Description

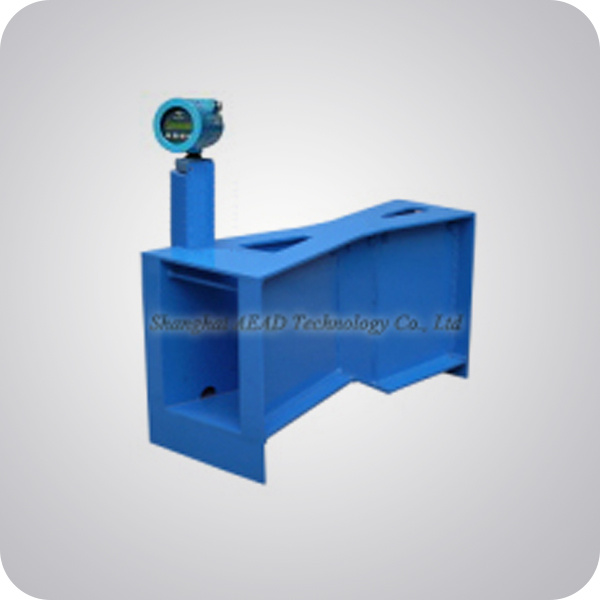

Ultrasonic Open-Channel Flow Meter (A+E 80FG)
A+E 80F G Series ultrasonic open-channel flow meter is used to supervise the sewage flow and its accumulative flow in the open channel, which is suitable for flow measurement under open-channel conditions in the industries of water conservancy, hydropower, environmental protection and other industries and agricultures.
There is built-in EEPROM in the meter, which enssures that the accumulative flow will not be lost when power off. The device is equipped with the explosion-proof anti-corrosion probe specially designed forpetroleum and chemical industries in order to meet the measurement requirement of sewage flow in the anti-explosion region of petroleum and chemical industries [the anti-explosion level is EX ia (d) ia II BT4], It is especially suitable for flow metering of oily wastewater.
We can provide our customers with matched Parshall Flume, Triangular Weir, Rectangular Weir, Display header or provide free design of weir plate.| Measuring Range | 0.1m3/s~10m3/s |
| Accumulative Flow | 99999999m3 |
| Ranging range | 0~3m |
| Ranging Accuracy | 0.3% |
| Flow Accuracy | 1%~5% (according to weir plate type. ) |
| Dead Zone | 0.25m~0.5m |
| Resolution | 1mm |
| Direction Angle | 4° ~6° (Full-shaped) |
| Display | LCD displays instantaneous flow and accumulative flow. |
| Analog Output: | 4~20mA output instantaneous flow |
| Digital Output | RS485 interface, ModBUS protocol or customization |
| Supply Voltage | DC24V/AC220V with built-in lightning protection device |
| Ambient Temp | -20~ +60 degree |
| Protection grade | IP67 |
| Anti-explosion Grade | EX ia (d) ia II BT4 |
| Installation | Bracket or flange mounting |
| Separation Distance | Smaller than 50 m (When split installed. ) |
|
Shanghai AEAD Technology Co., Ltd is a cooperation of Chinese and German technique which mainly performs in R&D, production and sales.
AEAD Technology was first founded in 2009 in Jiangsu, and established Shanghai Branch in May 18th, 2014. The new Shanghai factory would complete in DEC 2014, located in the Free Trade Zone. Before the business started in 2009, the General Manager Mr. R. H. Liu and Technical Director Mr. S. P. Zong had dedicated in instrumentation for more than 20 years. After 5 years development and achieving good reputation in domestic market, we become a leading manufacture in East China. Now we believe we are ready to overseas users.
The company adopts advanced production line from Germany, and the main products include A+E series products for exporting and A+D products for domestic sales in pressure, temperature, flow, level, calibration and valve which can cater for the needs from domestic and foreign markets. Products are organized and sold under fully dedicated divisions, each staffed with an experienced and highly trained team of dedicated technical sales, applications engineering and customer service support personnel. Products are applied to water treatment, petrochemical, chemicals, machinery, pharmacy, food, mine, metallurgy, etc.
AEAD Technology adheres to the development strategy of Internationalization, Technicalization, Industrialization, which can realize the high-end extension of the products from domestic market to international market. The value chain turns from providing single product to system solution, and the operation expands from linear-oriented to a comprehensive modern enterprise operation including merger and capital operation.
The company has already passed the ISO9001 Quality Management System Certification, ISO14001 Environmental System Certification, and Occupation Health Safety Management System Certification (OHSAS18000).
