Product Specifications
| Prod Model: |
UTG-2900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

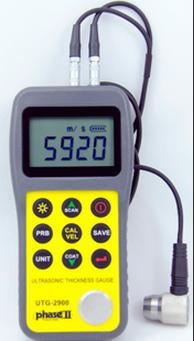

UTG-2900
Our new State of the art, digital ultrasonic thickness gauger is packed with features typically found on high end models only. This multi-functional ultrasonic thickness gauge offers everything from basic measurement, Thru Coating capabilities, Scanning Capabilities, Adjustable Sound Velocity, extended memory and USB output capabilities. This dynamic ultrasonic thickness gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave conductor as long as it has parallel top and bottom surfaces. The UTG-2900 ultrasonic thickness gauge will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.
Specifications:
|
Model No. UTG-2900 |
Display type |
4.5 -digit LCD w/Back Light |
Minimum display unit |
0.001"/0.01mm (selectable) |
Measuring Range |
Pulse-Echo: 0.025"-23.0" in steel Echo-Echo: 0.118" - 2.35" |
Accuracy |
+/- (0.5% thickness + .001") |
Sound velocity range |
3280-32805 ft/s (1000-9999m/s) |
Upper/Lower Limit Preset Alarm |
Yes |
Scanning Feature |
Yes, 16 measurements/second |
Operating temperature |
32-122 degrees F |
Frequency |
5MHz |
Update range |
4Hz |
Memory |
20 Groups (100 files/group) |
Output |
USB |
Power supply |
AA alkaline batteries (2pc) |
Battery life |
Approx. 100 hours (w/backlight off) |
Power consumption |
Working current is less than 3V |
Dimensions |
5.90" x 2.91" x 1.30" (150 x 74 x 33mm) |
Weight |
8.6oz (245g) |
