Product Specifications
| Prod Model: |
UTG-3000&UTg-4000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Enter Attribute Here (e.g.: Size): |
Enter Value Here (e.g.: 12 Inches) |
Product Description

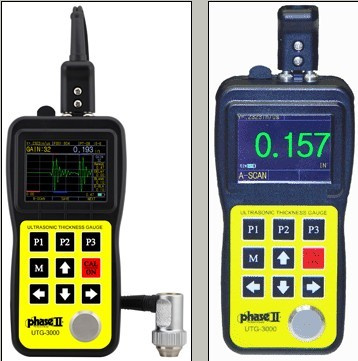

Model No. UTG-3000
Utilizing color waveform A-scan for absolute correctness, this new state of the art ultrasonic thickness gauge is packed with useful features allowing users to be confident of the displayed values on the most critical of applications. This multi-functional ultrasonic thickness gauge offers everything from basic measurement, Scan with Min/Max viewing, GO/NO GO display, Adjustable Gain, Blanking, Adjustable Gate and Adjustable Sound Velocity. Range adjustment, delay, and 4 waveform modes including RF, make this ultrasonic thickness gauge a true performer with confidence. This dynamic ultrasonic thickness gauge is designed to measure the thickness of metallic and non-metallic materials in critical situations that ordinary ultrasonic thickness gauges couldn't do.
The UTG-3000 ultrasonic thickness gauges will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.
Specifications: UTG-3000 ultrasonic thickness gauges
Operating Principle |
Ultrasonic pulse/echo method with dual element probe |
Display type |
2.4" Color Screen |
Resolution |
0.001", .01" /0.01mm (selectable) |
Measuring Range |
0.02-20.0" (10mm-145mm) Dependant upon probe & material |
Gain-Adjustable |
8 - 55dB (higher the gain, the higher the sensitivity is) |
Repeatability |
+/-.001" (+/-0.05mm) |
Sound velocity range |
0.0197-0.3937in/us (500-9999m/s) |
Measuring Error: |
0.001"(up to 0.984")
0.007"(up to 3.03"
0.019"( 4" and above) |
Display Modes: |
Digital Thickness Readout
A-scan or Waveform
Min/Max Capture
D-Value / Reduction |
V-Path Correction |
Automatic |
Gate-Adjustable |
Gate ranges from 1-50mm (for A-scan only) |
Refresh rate |
4/second |
Operating temperature |
14-122ºF (-10ºC - +50ºC) |
Auto Shut-Off |
After 5 minutes |
Power supply |
3v AA alkaline batteries (2pc) |
Operating Time |
Approx. 36 hours |
Dimensions |
6.02" x 2.99" x 1.45" (153 x 76 x 37mm) |
Weight |
9.9oz (280g) |
Phase II is a leading manufacturer of Material Testing Instrumentation, machine tool accessories and precision tools. Founded in 1981 with emphasis on providing the highest quality products, Phase II has established a "World-Class" reputation for quality and service. We take pride in offering more than just a product. We have "In-House" Application Specialists who can guide you through product selection and maintenance. They are fully trained and qualified to give whatever technical support is needed. We also maintain a full range of replacement parts for our products.
Phase II is continuously adding on new items to its product line. Our Metrology/Material Testing division is a prime example of our dedication to bringing you the latest in technology at competitive prices. Visit our website frequently for updates on new items.
Phase II exhibits in major tradeshows throughout the USA, Canada and Mexico. If you are in the area, stop by our booth and see first hand why Phase II is your source of quality.
With the introduction of our Beijing office, Phase II now has sales offices in the USA (Headquarters), China, Mexico and Venezuela.
We look forward to working with you and expect that you will find the Phase II level of quality and service nothing less than outstanding.
