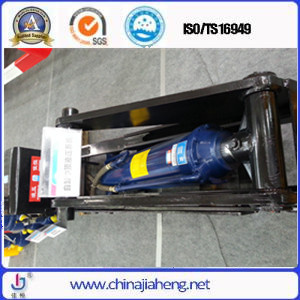

Dump truck Hydraulic Cylinder with Mounting Frame
Your hydraulic cylinder specialist!
Specifications
Hydraulic lifting RAM/ under body cylinders:
1. Parker, NOK, Hallite seals
2. Hard chrome plated rod
3. Precision honed tube
4. Passed SGS, ISO/TS16949
About us
Jiaheng is the best hydraulic and penumatic components manufacturer in China. We have customers in more than 30 country and districts, covered America, South America, Austrilia, Europe and Southeast Asia.
Our hydraulic cylinders undergo a series of cylinder testing to simulate their operating conditions and even it's service life.
We work hard and try best to provide our customers reliable quality and competitive price, with quick response to all end users and distributors, to make sure our customers go ahead in every competetive market.
Features:
The standard Jiaheng Cylinder includes Front-end Cylinders with Outer Cover, with Eye type, named Guillaume cylinders. Double acting cylinders are also available. Tipping capacity ranges to 160T. In addition to our standard features, Jiaheng offers an incorporated damper, imported seal kits, several surface treatments. All of Jiaheng Cylinders are hard chromed.
The standard front-end cylinders with a diameter of 80 to 230mm and a stroke ranging from 900 to 8370mm, the standard Guillaume cylinders with a diameter from 90 to 230mm and a stroke from 3000 to 6180mm. Tippers with sloping headboard generally are fitted with an Guillume cylinder or front-end with a short cover.
|
Model |
Tipping.Max
(T) |
Press
(MPa) |
Close.height (mm) |
Tanker.Vol
(L) |
Carriage
(mm) |
Rear overhang |
Lifting.angle
(degree) |
|
4TG-E200×5390 |
50.3 |
16 |
1695 |
128 |
6800-7200 |
900 |
48-52 |
|
4TG-E200×5780 |
50.3 |
16 |
1792 |
137 |
7200-7600 |
900 |
48-52 |
|
4TG-E200×6000 |
50.3 |
16 |
1853 |
143 |
7600-7800 |
900 |
48-52 |
|
4TG-E200×6180 |
50.3 |
16 |
1897 |
147 |
7800-8200 |
900 |
48-52 |
|
5TG-E200×5780 |
46.5 |
16 |
1511 |
123 |
7000-7400 |
900 |
48-52 |
|
5TG-E200×6000 |
46.5 |
16 |
1551 |
128 |
7400-7600 |
900 |
48-52 |
|
5TG-E200×6180 |
46.5 |
16 |
1599 |
133 |
7600-8000 |
900 |
48o-52o |
Hubei Jiaheng Technology Co., Ltd located at Yunxian economic development. Our company is keen to develop and produce all kinds of hydraulic system products, hydraulic cylinder set, pump truck hydraulic(arm support and pump over), truck mounted crane cylinder, mining hydraulic prop, enlarge frame set and hydraulic system.
Our annual output value above 800 million yuan, anual production capacity of 220000 sets, front telescopic hydraulic cylinders achieve the ability 400units/day, with an annual 120000 units, abdominal lift hydraulic cylinder 40000units, verious types of pump amplitude, telescopic outrigger hydraulic cylinder 10000units, various types of loader, excavator hydraulic cylinders 50000sets.
"Jiaheng" brand hydraulic products has leapt to the leading position in domestic industry three consecutive years. Products reconginzed and praised by more than 100 China several well-known medium and heavy vehicle refitting enterpriese, established a strategic partnership, like XCMG, ZOOMLION, CIMC, SUNHUNK, FOTON, DONGFENG, CAMC, SINOTRUCK, LOXA, Iveco (Shanghai), North Benz. Jiaheng products has spread more than 30 provinces and exported to Russia, Ukraine, Philippines, Thailand, Pakistan, Kazakhstan, Korea and some Middle East countries.
Jiaheng welcome your inquire and visit.
