Product Specifications
| Prod Model: |
HC-TG125 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black, Red, Yellow, Blue |
| Pressure: |
16mpa |
| Rod Diameter: |
160mm |
| Stroke: |
800mm |
| Installation Distance: |
135mm |
| Lifting Capacity: |
20~40t |
| OEM: |
Yes |
| Standard: |
Standard or Nonstandard |
| Power: |
Hydraulic |
| Structure: |
General Cylinder |
| Pressure Direction: |
Single-acting Cylinder |
| Material: |
27simn Drawn Tube |

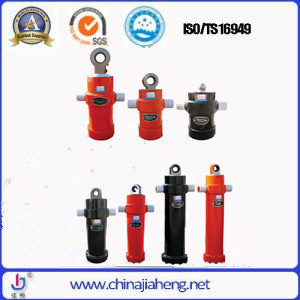

Product Description
Application: Dump truck, trailer, tipper, tractor, garbage truck
Designed For: Single-acting,
Stage: 2-5 stage cylinder
Seal Type: Parker, NOK, BUSAK SHAMBAN or as customer's requirement
Piston Rod: Chrome or nickel plated, ground & polished piston rod
Tube: High tensile cold drawn tube, precision honed for extended seal life
1. It has a wide range of product series and can meet the demand of all customized small model vehicle cylinder series.
2. The strict control of cylinder dimensions can ensure the sincerity of two or multiple cylinders and lower the faulty risk of over-tipping caused by lifting deviation.
3. The repair rate is less than 0.3% for the past three years.
About us:
Hubei Jiaheng Technology Co., Ltd is a professional hydraulic cylinders manufacturer over 12 years. We can offer wide range hydraulic cylinders, tie rod hydraulic cylinders, welded hydraulic cylinders, custom hydraulic cylinders, hydraulic pumps and hydraulic spare parts, which are ISOTS16949 certified and patent products.
Selling Points of Our Hydraulic Telescopic Cylinder:
1. Using new rolling technology to ensure high precision for the inside hole of cylinder
2. The thickness of cylinder is up to 16mm, it can meet the strength requirement when the truck is overloaded
3. The diameter of piston rod reach 90mm, it will not bending under normal use
4. Using 3 seal-rings to seal piston rod, it can be lifetime used
Quality ControI:
1. Cylinder products have to pass strict quality control from purchasing materials, processing, assembling. (We passed the certification of ISO/ TS 16949: 2009)
2. Automated cleaning equipment to ensure the cleanliness of fuel tank assembly.
3. Welding with CO2 arc and automatically girth welding, which can ensure the welding quality of the seal parts
4. Full Cylinder inspection, all products need to100% pass the comprehensive test before deliver out from factory.
|
Model |
Cylinder.
Dia
(mm) |
Stroke
(mm) |
Install
(mm) |
Pressure
(Mpa) |
Thrust
(T) |
Loading
(T) |
|
2TG-D110×900NC |
110 |
900 |
150 |
10 |
9.5 |
5-10 |
|
2TG-D110×980ZY |
110 |
980 |
150 |
10 |
9.5 |
5-10 |
|
2TG-D110×1020ST |
110 |
1020 |
140 |
10 |
9.5 |
5-10 |
|
3TG-D110×1020ST |
110 |
1020 |
150 |
10 |
9.5 |
5-10 |
|
3TG-D110×1170ST |
110 |
1170 |
150 |
10 |
9.5 |
5-10 |
|
3TG-D110×1350ST |
110 |
1350 |
150 |
10 |
9.5 |
5-10 |
|
3TG-D110×1530ST |
110 |
1530 |
150 |
10 |
9.5 |
5-10 |
|
3TG-D125×1050ST |
125 |
1050 |
145 |
10 |
12.3 |
8-15 |
|
4TG-D125×1500YQ |
125 |
1500 |
285(485) |
16 |
19.5 |
25-50 |
|
3TG-D125×1530ST |
125 |
1530 |
145 |
10 |
12.3 |
8-15 |
|
4TG-D130×640ST |
130 |
640 |
125 |
10 |
12.3 |
8-15 |
|
4TG-D130×740HJ |
130 |
740 |
140 |
10 |
12.3 |
8-15 |
|
4TG-D130×770SQ |
130 |
770 |
140 |
10 |
12.3 |
8-15 |
|
4TG-D130×1500YQ |
130 |
1500 |
285(485) |
16 |
19.5 |
25-50 |
|
4TG-E140×800HJ |
140 |
800 |
140 |
16 |
24.2 |
25-50 |
|
5TG-E140×800HW |
140 |
800 |
120 |
16 |
24.2 |
25-50 |
|
4TG-E140×2460SG |
140 |
2460 |
165 |
16 |
24.2 |
25-50 |
|
4TG-E150×800HM |
150 |
800 |
160 |
16 |
28.3 |
25-50 |
|
4TG-E150×830SQ |
150 |
830 |
160 |
16 |
28.3 |
25-50 |
|
4TG-E150×1500YQ |
150 |
1500 |
285(485) |
16 |
28.3 |
25-50 |
|
5TG-E150×800NM |
150 |
800 |
135 |
16 |
28.3 |
25-50 |
|
5TG-E160×800MS |
160 |
800 |
135 |
16 |
32.1 |
20-40 |
Hubei Jiaheng Technology Co., Ltd located at Yunxian economic development. Our company is keen to develop and produce all kinds of hydraulic system products, hydraulic cylinder set, pump truck hydraulic(arm support and pump over), truck mounted crane cylinder, mining hydraulic prop, enlarge frame set and hydraulic system.
Our annual output value above 800 million yuan, anual production capacity of 220000 sets, front telescopic hydraulic cylinders achieve the ability 400units/day, with an annual 120000 units, abdominal lift hydraulic cylinder 40000units, verious types of pump amplitude, telescopic outrigger hydraulic cylinder 10000units, various types of loader, excavator hydraulic cylinders 50000sets.
"Jiaheng" brand hydraulic products has leapt to the leading position in domestic industry three consecutive years. Products reconginzed and praised by more than 100 China several well-known medium and heavy vehicle refitting enterpriese, established a strategic partnership, like XCMG, ZOOMLION, CIMC, SUNHUNK, FOTON, DONGFENG, CAMC, SINOTRUCK, LOXA, Iveco (Shanghai), North Benz. Jiaheng products has spread more than 30 provinces and exported to Russia, Ukraine, Philippines, Thailand, Pakistan, Kazakhstan, Korea and some Middle East countries.
Jiaheng welcome your inquire and visit.
