Underfloor Heating Electric

Name: Underfloor Heating Electric
Brand: China-Manufacturer-Directory.com
SKU: 763653945
Availability: InStock
Rating: 4.3 (127 reviews)

Supplier:	Jiangyin Senphus Electrical Material Co., Ltd.
Price:	US $ 25/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	SHHM-130
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mat Thickness:	2mm
Heating Wire Diameter:	3.8mm to 4.2mm
Power Line Color:	Black
Voltage:	220V To240V
Length:	10m to 220m
Power:	10 to 20W/M
Warranty:	18 Years
Temperature:	High Temperature
Heat Source:	Heat & Power Plant
System Structure:	Conduct, Insulation and Mat
Type:	Heating Mat
Material:	Copper Nickel Alloy

Product Description

Underfloor Heating Electric

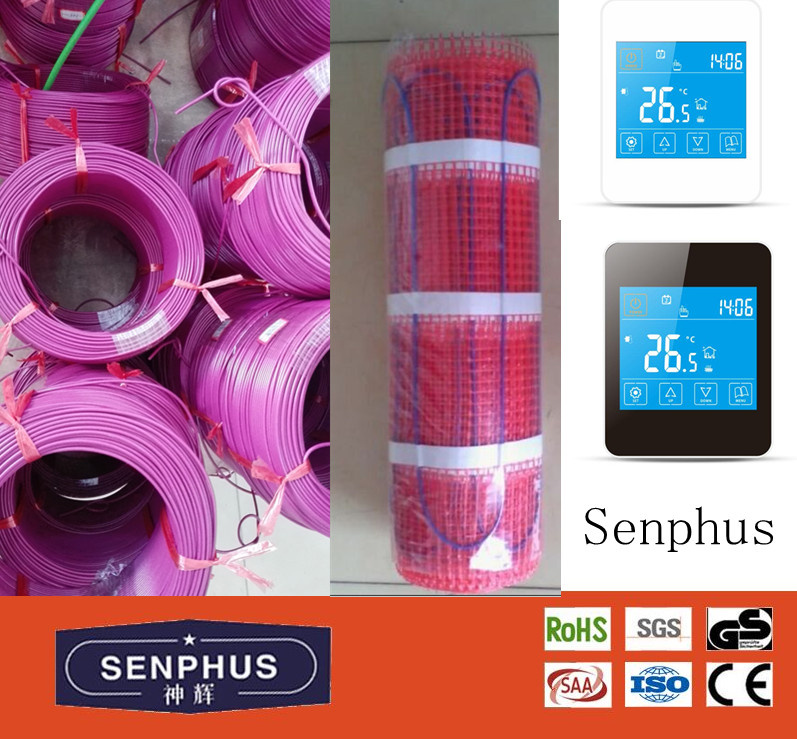

Senphus Underfloor Heating Electric include the underfloor heating cable and underfloor heating mats.

Senphus Underfloor Heating Electric Characteristic
1.we are specilized in the alloy wire, we have many different equipment to test and control the quality of the alloy wire/core wire/heating wire.
2.We are specilized in all kinds of Underfloor Heating Electric, flat heating wire, round heating wire, thin heating cable, thick heating cable, stranded and winding wire etc. The customized are accepted.

Underfloor Heating Mat Specification

Voltage	Size	Power	Ohm	Length(m)
230V	SHHM-130-1.0M2(P)	130	406.9	11.1	1
230V	SHHM-130-1.5M2(P)	195	271.3	16.65	1.5
230V	SHHM-130-2.0M2(P)	260	203.5	22.2	2
230V	SHHM-100-2.5M2(P)	325	162.8	27.75	2.5
230V	SHHM-130-3.0M2(P)	390	135.6	33.3	3
230V	SHHM-130-3.5M2(P)	455	116.3	38.85	3.5
230V	SHHM-130-4.0M2(P)	520	101.7	44.4	4
230V	SHHM-130-4.5M2(P)	585	90.4	49.95	4.5
230V	SHHM-130-5.0M2(P)	650	81.4	55.5	5
230V	SHHM-130-6.0M2(P)	780	67.8	66.6	6
230V	SHHM-130-7.0M2(P)	910	58.1	77.7	7
230V	SHHM-130-8.0M2(P)	1040	50.9	88.8	8
230V	SHHM-130-9.0M2(P)	1170	45.2	99.9	9
230V	SHHM-130-10.0M2(P)	1300	40.7	111	10
230V	SHHM-130-12.0M2(P)	1560	33.9	133.2	12
230V	SHHM-130-15.0M2(P)	1950	27.1	166.5	15

Advantages of Senphus Underfloor Heating Mat
· Provides invisible comfort and safety.
· Can be placed directly underneath any floor covering, from tiles to wood or laminate.
· Is Ideal for larger floor areas.
· Offers ultimate flexibility; tight corners or add shaped rooms are no problem at all.
· Ideal for renovation projects as it can be laid directly on top of existing floor coverings, with no need to dig up the floor.
· Less air movement means less dust.
· Ideal for new builds.
· Easy to plan and install.

Installation of electric underfloor heating under tiles

Laying the insulation
(1)    The insulation for under tiles always comes in the form insulation board. This board needs to fixed to a clean subfloor with a suitable flexible tile adhesive.  The normal method of applying tiles adhesive is to use a trowel with ridges to get a flat surface.
(2)    Once all the insulation has been fixed then perform a full electrical test on all the electric underfloor heating mats.
(3)    Next is to roll out and fix the electric under floor matting onto the floor according to your floor plan.  Make sure you always buy from a company that will provide a full floor plan to avoid any problems. Rayotec provides free floor plans with all purchases.
(4)    Fully test all the mats again.
(5)    Install your thermostat.
(6)    Lay your tiles/stone floor onto using a flexible tile adhesive.

Underfloor Heating Cable

Voltage	Size	Power/W	Ohm	Length(m)	w/m
230	SHDN-11-10M(P)	110	480.91	10	11
230	SHDN-11-11M(P)	165	320.61	15	11
230	SHDN-11-25M(P)	275	192.36	25	11
230	SHDN-11-30M(P)	330	160.30	30	11
230	SHDN-11-35M(P)	385	137.40	35	11
230	SHDN-11-42.5M(P)	467.5	113.16	42.5	11
230	SHDN-11-60M(P)	660	80.15	60	11
230	SHDN-11-80M(P)	880	60.11	80	11
230	SHDN-11-90M(P)	990	53.43	90	11
230	SHDN-11-100M(P)	1100	48.09	100	11
230	SHDN-11-120M(P)	1320	40.08	120	11
230	SHDN-11-140M(P)	1540	34.35	140	11
230	SHDN-11-160M(P)	1760	30.06	160	11

Jiangyin Senphus Electrical Material Co., Ltd is a new Hi-tech enterprise of heating alloy, heating cable/mat, heating wire, silicone rubber heater, drum silicone rubber heater, thermostat, which is engaging in R&D, manufacture and sale.

We have our own alloy smelting factory, possessing first-class production and advanced research facilities, so that we guarantee the top quality of our products. We have already passed ISO9001 quality management system and achieved the examination report of National Center for quality Supervision & Test of Electric Wire & Cable, and gained the European Union CE certification, UL certificate, GS Certificate, electromagnetic radiation certification, SGS and REACH certification.

Heating cable/wire and temperature controller system are widely used in wind power blades, construction heating, pipeline heating, outdoor snow melting, soil heating field and so on. Silicone rubber heater are widely used in electrical household appliance, spaceflight, petroleum, metallurgy, military project, chemical, electric power, medical appliance, mechanism, outdoor communication, automobile, etc. Industry.

Our products have been exported to America and Europe, Africa, Southeast Asia, like USA, Canada, England, France, Holand, Poland, Peru, South Africa, Italy, Greece, Thailand, India, Hongkong, etc. More than thirty countries and areas.

Our company always persist in"reputation first, quality high and customers supreme" management ideal. We will use great products, competitive price, professional service to cooperate with you and gain win-win!

OEM is welcome! !
