Product Specifications
| Prod Model: |
UT151 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Ut151 |
| Power: |
9V Battery(6f22) |
| LCD Size: |
63mm X 29mm |
| Product Color: |
Red and Grey |
| Product Net Weight: |
300g |
| Product Size: |
186mm X 91mm X39mm |
| Standard Accessories: |
Battery,Test Lead |
| Standard Individual Packing: |
Gift Box,English Manual |
| Standard Quantity Per Carton: |
40 PCS |
| Standard Carton Gross Weight: |
22.8 Kg |
| Installation: |
Portable |
| Display Mode: |
Digital |
| Theory: |
Electronic Meter |
| Power Source: |
AC and DC |
Product Description

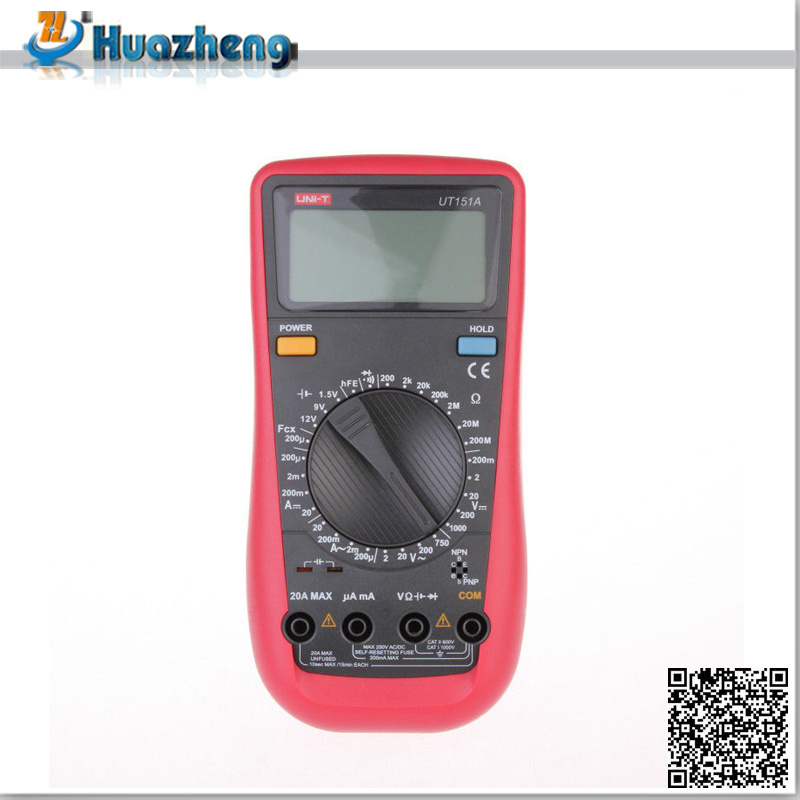

UT151 Intelligent Handheld Digital Multimeters
I. Product Description of UT151 Intelligent Handheld Digital Multimeters
1. stable performance, high reliability handheld 3 1/2 digit digital multimeter.
2. The whole circuit is designed to LSI, double integral A / D converter core.
3. fully functional overload protection.
3. can be used to measure the DC voltage and current, AC voltage and current, resistance, capacitance, diode, transistor, frequency and circuit continuity.
4. AC voltage and current True RMS measurements with AC + DC function.
5. mA file using resettable fuse, enabling users to operate even if an error occurs in the mA files do not have to replace the fuse.
Can be used to measure the family, school, smelting, telecommunications, manufacturing, petroleum, defense, power, chemical and other industries, is the ideal tool for circuit / electrical equipment maintenance and repair.
II. Parameter of UT151 Intelligent Handheld Digital Multimeters
| Specifications | Range | Best Accuracy |
| Model |
| UT151A | UT151B |
| DC Voltage (V) | 200mV/ 2V/ 20V/ 200V/ 1000V | ±(0.5%+1) | ±(0.5%+1) |
| AC Voltage (V) | 2V/ 20V/ 200V/ 750V | ± (0.8%+3) | ± (0.8%+3) |
| DC Current (A) | 200μA/ 2mA/ 200mA/ 20A | ± (0.8%+1) | ± (0.8%+1) |
| AC Current (A) | 200μA/ 2mA/ 200mA/ 20A | ± (1%+3) | ± (1%+3) |
| Resistance (Ω) | 200Ω/ 2KΩ/ 20KΩ/ 200KΩ/ 2MΩ/ 20MΩ/ 200MΩ | ±(1%+2) | ±(1%+2) |
| Capacitance (F) | 20μF/200μF | ±(5%+4)>100μF Reference Only |
|
| 2nF/ 20nF/200nF/ 2μF/ 100μF |
| ±(4%+3) |
| Features | |
| Display Count |
| 1999 | 1999 |
| General Characteristic |
| Power | 9V Battery(6F22) |
| LCD Size | 63mm X 29mm |
| Product Color | Red and Grey |
| Product Net Weight | 300g |
| Product Size | 186mm X 91mm X39mm |
| Standard Accessories | Battery,Test Lead |
| Standard Individual Packing | Gift Box,English Manual |
| Standard Quantity Per Carton | 40 PCs |
| Standard Carton Measurement | 645mm X 450mm X 340mm (0.099 CBM Per Standard Carton) |
| Standard Carton Gross Weight | 22.8 Kg |
