Uyigao Technology Co., Ltd. >> Uyigao Ua203 33/4 AC/DC Current LCD Intelligent Digital Clamp Meter with Resistance Backlight Voltage

Uyigao Ua203 33/4 AC/DC Current LCD Intelligent Digital Clamp Meter with Resistance Backlight Voltage

Name: Uyigao Ua203 33/4 AC/DC Current LCD Intelligent Digital Clamp Meter with Resistance Backlight Voltage
Brand: china-manufacturer-directory.com
SKU: 698656612
Availability: InStock
Rating: 4.5 (74 reviews)

Supplier:	Uyigao Technology Co., Ltd.
Price:	US $ 12.6/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	UA203
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display:	Digital

Product Description

Products overview:

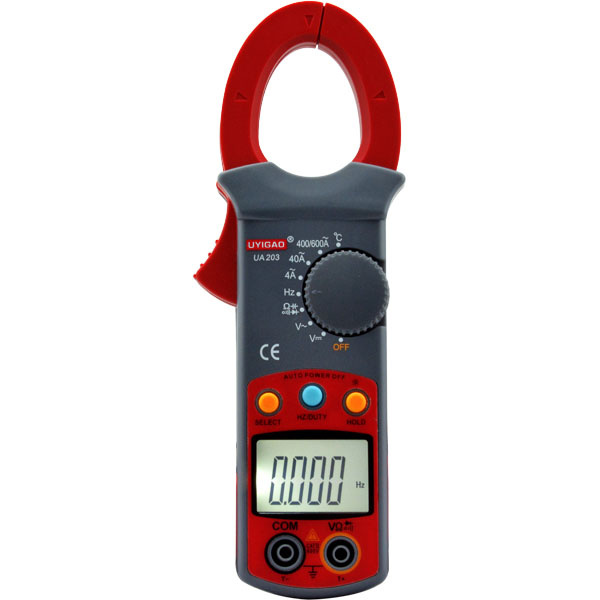

UA203 clip-on DMMS design by 9 v batteries, 3 3/4 a LCD screen display. Can be used to measure ac and dc voltage, ac current, resistance and on-off test, temperature and capacity, etc. With automatic shutdown data maintaining .

Basic Function	Range	Basic precision
Basic Function	Range	UA203
DC Voltage	400mV-600V	±(0.8%+5)
AC Voltage	4V-600V	±(1.5%+5)
AC Current	4A/40A/400A/600A	±(3%+10)
Resistance	400Ω/4kΩ/40kΩ/400 kΩ/4MΩ/20MΩ	±(0.8%+5)
Capacitance	40nF/400nF/40uF/100uF	±(3%+5)
Temperature	-40ºC~1000ºC	±(1%+3)
Frequency	10Hz-10MHz	±(0.1%+5)
Duty Ratio	0.1-99.9%	√
Special Function
True RMS	AC	-
Relative Measurement		√
Diode test		√
Continuity Buzzer		√
Full Icon Display		√
Dormancy Function		√
Low Battery Display		√
Input Impedance for DCV	10MΩ	√
Data Hold		√
Auto Range		√
Backlight		√
Shock Protection		√
MAX Display	3999
Auto Power Off		√
Power	9V battery(6F22)	√

About Shenzhen UYIGAO Electronic Technology(China) Co., Ltd

We are specializing in development, design, production and sales of various measuring instrument in the integration of high-tech enterprises. Always adhere to the targeting of instrument and meter industry elite at home and abroad, the product has its own characteristics. Has been constantly absorbing and introduction, innovation and development from the company was founded till now.

We are committed to optimal instrument high-tech brand promotion at home and abroad, production of infrared thermometer, illuminance meter, digital multimeters, and AC/DC clamp table has been sold at home and abroad. Our production enjoyed high quality reputation since the company was founded six years.

About UYIGAO's Goal

Optimal instrument high-tech goal: To set up national brand image and become the social responsibility of enterprises.

Optimal instrument high-tech quality goal: Quality is the life of the enterprise.

Only insist to put quality in long-term, the enterprise can sustainable development, growing and finally realize the company's goals.

About UYIGAO's Culture

Person Is the root of Enterprise, They are the basis of optimal instrument technology now, the guarantee of the future. The company will and colleagues from all walks of life to achieve a win-win situation, explore new areas and create advanced products in constantly.

About UYIGAO's Trade strategy

Welcome friends from home and abroad in sincerely, we can OEM and have our own brand. Welcome to visit our factory to visit, thank you!

Contact Us

If you are interested in any of our products, please feel free to contact us for further information. We look forward to cooperating with you in the future.
