Vacuum Molded 120kv/1.0A High Frequency High Voltage Diode Assembly

Name: Vacuum Molded 120kv/1.0A High Frequency High Voltage Diode Assembly
Brand: china-manufacturer-directory.com
SKU: 701541362
Availability: InStock
Rating: 4.9 (47 reviews)

Supplier:	Anshan Leadsun Electronics Co., Ltd.
Price:	US $ 61.66-71.66/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	2CLG120KV/1.0A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LHB:	205306
Tj:	-40oc~+120oc
Used:	Electrostatic Cleaning
Features:	More Sizes Availible
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Through-Hole
Application:	Leadsun
Model:	2clg120kv/1.0A
Brand:	Leadsun

Product Description

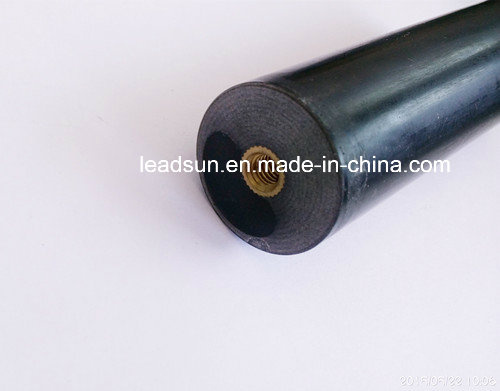

2CLG120KV/1.0A High voltage rectifier block adopts high reliable mesa structure and diffusion craftwork, epoxy resin molded in a compact structure.
Product features
1. Avalanche characteristic
2. More sizes available
3. Vacuum molded, non-corrosive epoxy resin case
4. Tj: -40ºC-+120ºC
Application
1. High voltage rectifier used in electrostatic cleaning
2. High voltage testing equipment
3. General purpose high voltage rectifier
Limiting Values(Absolute Maximum Rating)

Item	Symbol	Unit	Condition	Voltage
Repetitive Peak Reverse Voltage	VRRM	KV	Ta=25ºC IR=0.5μA	120.0
Peak Working Reverse Voltage	VRWM	KV	Ta=25ºC IR=0.5μA	120.0
Non-Repetitive Peak ReverseVoltage	VRsM	KV	Ta=25ºC IR=0.5μA	132.0
Average Forward Current	IF(AV)	A	50Hz Half-sine Wave , Resistance load @Tbreak=50ºC	1.0
Reverse Recovery Time	trr	nS	IF=2mA IR=4mA IRR=1mA	100
Surge Forward Current	IFSM	A	0.01S @ Half-Sine wave 50Hz	20
Junction and Storage Temperature	T stg	ºC		-40~+120
Virtual Junction Temperature	T(vj)	ºC		-40~+120

Electrical Characteristics (Ta=25ºC)

Item	Symbol	Unit	Conditions	Voltage
Forward Peak Voltage	VFM	V	@ Ta=25ºC IF=0.05A	162.0
Peak Reverse Current	IRRM1	μA	@ Ta=25ºC VRM=VRRM	2.0
Peak Reverse Current	IRRM2	μA	@ Ta=100ºC VRM=VRRM	50.0

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
