Vacuum Molded 20kv/200mA Hv Rectifier Assembly

Name: Vacuum Molded 20kv/200mA Hv Rectifier Assembly
Brand: China-Manufacturer-Directory.com
SKU: 701175042
Availability: InStock
Rating: 4.6 (100 reviews)

Supplier:	Anshan Leadsun Electronics Co., Ltd.
Price:	US $ 3.83-8.83/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	2CLG20K/0.2A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Trr:	100ns
LHB:	801010
Tj:	-40oc-+120oc
Used:	Electrostatic Cleaning
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Through-Hole
Application:	Rectification
Model:	2clg20k/0.2A
Brand:	Leadsun

Product Description

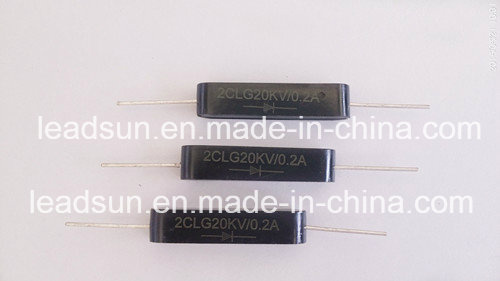

2CLG20K/0.2A High voltage rectifier block adopts high reliable mesa structure and diffusion craftwork, epoxy resin molded in a compact structure.
Product features
1. Avalanche characteristic
2. More sizes available
3. Vacuum molded, non-corrosive epoxy resin case
4. Tj: -40ºC-+120ºC
Application
1. High voltage rectifier used in electrostatic cleaning
2. High voltage testing equipment
3. General purpose high voltage rectifier
Limiting Values(Absolute Maximum Rating)

Item	Symbol	Unit	Rating	Conditions
Repetitive Peak Reverse Voltage	VRRM	KV	20
Average Forward Current	IF (AV)	mA	200	50HZ Sine-half Wave Rectification Average Value
Forward Surge Current	IFSM	A	10A	50HZ Sine-half Wave,One Shot
Maximum Junction Temperature	Tjmax	ºC	130
Storage Temperature	Tstg	ºC	-40~+130

Electrical Characteristics(Tamb=25 oC,unless otherwise specified)

Item	Symbol	Unit	Rating	Test conditions
Forward Voltage Drop	VFM	V	35max	IF(AV)=200mA
Normal Temperature Reverse Current	IRM1	μA	5.0max	VRM=20KV
High Temperature Reverse Current	IRM2	μA	50max	Tamb=100oC VRM=20KV
Reverse Breakdown Voltage	VZ	KV	21min	IR=100uA
Reverse Recovery Time	trr	μS	0.10 max	IF=10 mA, IR=20 mA.

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
