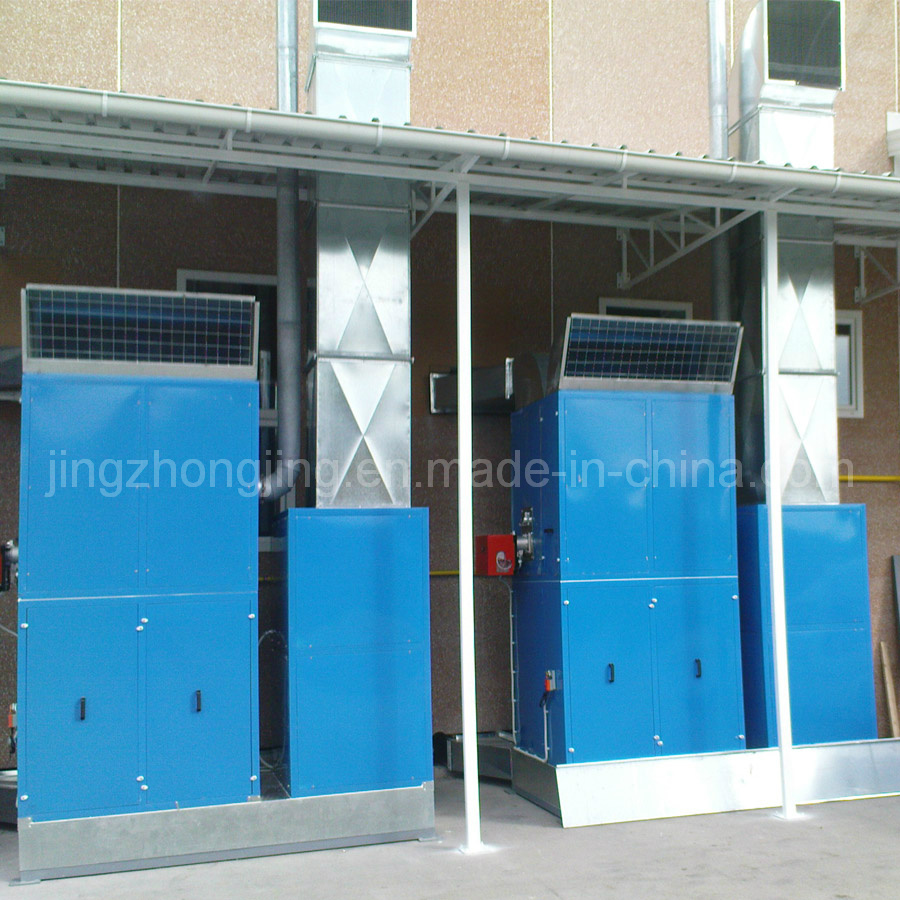

Ventilation System Install Outside (JZJ-9400)

Name: Ventilation System Install Outside (JZJ-9400)
Brand: China-Manufacturer-Directory.com
SKU: 726467365
Availability: InStock
Rating: 4.6 (91 reviews)

Supplier:	Jiangsu Jingzhongjing Industry Coating Equipment Co., Ltd.
Price:	US $ 6000-13000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	JZJ-9400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Sea Blue, Red, Orange, White
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Certification:	ISO9001
Condition:	New

Product Description

Company Introduction
JZJ is one spray booth manufacturer with 20 years designing and producing equipment of car spray booth, industria spray booth, prep-staion, paint mixing room, coating line. with the high quality standard, we guarantee our customers 24 months free service.

Product Description
Model: JZJ-9400 Automobile Spray Booth

Product Pictures

Features
1. CE Certificate.
2. External lighting.
3. Proof-explosion motors.
4. ISO Certificate.

Specifications

Outside Dimension (mm)	700655563450(LWH)	Inside Dimension(mm)	690040002650(LWH)
Front Door(mm)	30002600(WH)	Service door (mm)	1800650(WH)
Total Power	18KW
Cabin system	Wall panel	50mm EPS sandwich panel, steel sheet thickness: 0.426mm
	Ceiling panel	0.8mm Galvanized steel sheet.
	Ramps	Three pieces 2000*900mm ramps
	Basement	300mm depth, middle with grids, side with checkered plates.
	Glass	4mm safety tempered glass
	Windows	Square glass windows
Air Make-up System	Air Inlet fan system	2*4kw centrifugal fan
	Exhausted fan system	1*7.5KW centrifugal fan
	Ai capacity for fresh air	24000m3/h
	Air Flowing speed	0.25m/s in empty booth
	Exhausted ducting	4meters straight ducting, one 90°elbow and one 30°elbow.
Purification System	Pre-filter	G3 grade
	Ceiling filter	EU5 / F5
	Floor filter	fiber glass filter / G3 grade
	Exhausted fan Filters	fiber glass filter and active carbon
Heating System	Heat Exchanger	SUS304 material, argon arc welding.
	Heating burner:	RielloG20 diesel oil burner(gas burner for option)
	Heating productivity	180000Kcal/h
	Spray to baking switch	20N BELIMO brand electrical damper
	Chimney ducting	3 meters stainless ducting and one chimney elbow
	Max heating temperature	80degrees
	fuel consumption	6-8L/vehicle
Lighting System	Ceiling lights	8 Units, each 4 * 36W Philips lamps, Total 1152 W
	Side lights	8 Units, each2 * 36W Philips lamps, Total 576W
	Illumination	1200LUX
Controlling system	Micro-computer programming system	Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge

Our Service
1. 24 months warranty time
2. Customization accepted
3. OEM accepted
4. Detailed installation drawings and video will be provided. If needed, we also have special experienced installing staff can go abroad to help customers install and check spray booth.
5. Prompt after-sale service. We have established perfect after-sale service system. If needed, our staff will arrive in 72 hours to repair products.
