Ventilation Type Aging Testing Chamber Lx-8826
Product Specifications
| Prod Model: |
LX-8826 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Material Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
Product Description

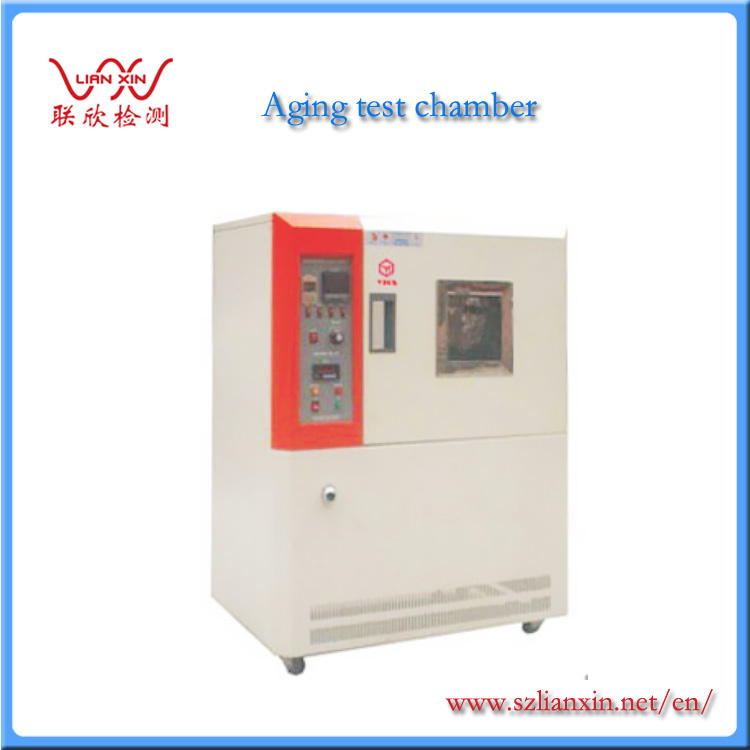

LX-8826 Ventilation type aging test chamber
Range of application:The ageing oven is used to test specimens of wire and cable insulation or coating rubber,to compare the sample piece of tensile strength and elongation before/after aging.This machine is in hot air circulation way,Allowing the specimens aging, box sealing is strong,With ChouHuan air box inside the device, the overtemperature automatic cut off protection device, conform to the requirements of the UL - 1581 test .
Main parameter:1. Using PID temperature control
2. Temperature range:RT+5~3000C 8
3. Temperature fluctuation degree:0.5%(With the highest temperature is calculated)
4. Temperature uniformity:1%(With the highest temperature is calculated)
5. Heating time: 60 minutes
6. Ventilation: biggest 300 / hour (adjustable)
Power:7KW
Rotary speed:5-10 RPM
Studio size:55*55*55cm
The stainless steel tank, shell cold-rolled static point prints
Overall dimensions:116*148*85cm
Optional power, automatic switch function
Shenzhen Lianxin testing equipment Co., Ltd(Referred to as "LianXin detection", )with HongKong LianXin testing equipment is a global professional wire and cable, Mobile phones and environmental testing equipment research and development, Production and sales of high-tech enterprises. With excellent working environment and the advanced production equipment, Also introduced a number of highly qualified knowledge and technical personnel and marketing elite, For the company has been rapid development has laid a solid foundation.
The company's products are widely used in wire and cable, connectors, LED, photoelectric, electric power, electronic and network communications and other industries and departments, Mainly includes:
1. All kinds of environmental simulation test equipment(Constant temperature and humidity, thermal shock, Rapid temperature change, aging, UV, etc);
2. All kinds of DC wire tester, AC double head plug wire tester;
3. All kinds of wire and cable equipment and appliances experiment equipment(Swing machine, salt spray machine, pulling machine, insertion force testing machine, etc);
4. All kinds of mobile phone simulation test equipment(Flip, slide, falling, click on the line, such as key life test etc. );
5. All kinds of safety equipment(High pressure/pressure gauge, low resistance, insulation resistance, digital bridge, etc);
6. All kinds of environment the calibration equipment.
Our company with domestic and foreign large and well-known enterprise or its affiliated companies to maintain good, the good faith cooperation. Such as "the same continents, BYD, Samsung Group, " and so on, Is the most powerful in the same industry at home and abroad with the size of the testing instrument producer.
Products are exported to all over the world, deeply the customer high praise. Company in Vietnam, South Korea, India, Hong Kong, Shanghai, zhejiang, changsha, Beijing, guangzhou, zhuhai, foshan, dongguan, such as setting up branch office, Forming technology service network, for users across the country to provide professional technical services. Company to fully implement the customer is supreme principle, Set up to the quality strives for the development, the service strives for the survival of development policy, with customers to establish long-term friendly relations of cooperation.
