Product Specifications
| Prod Model: |
XTY-300LJ12080 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Voltage: |
200-415V |
| Power: |
4kw |
| Place Of Origin: |
Jiangsu China |
| Brand Name: |
Xtpack |
| Certification: |
CE |
| Output Per Hour In Bales: |
8-12 Bales/H |
| Package Type: |
Wooden Package |
Product Description

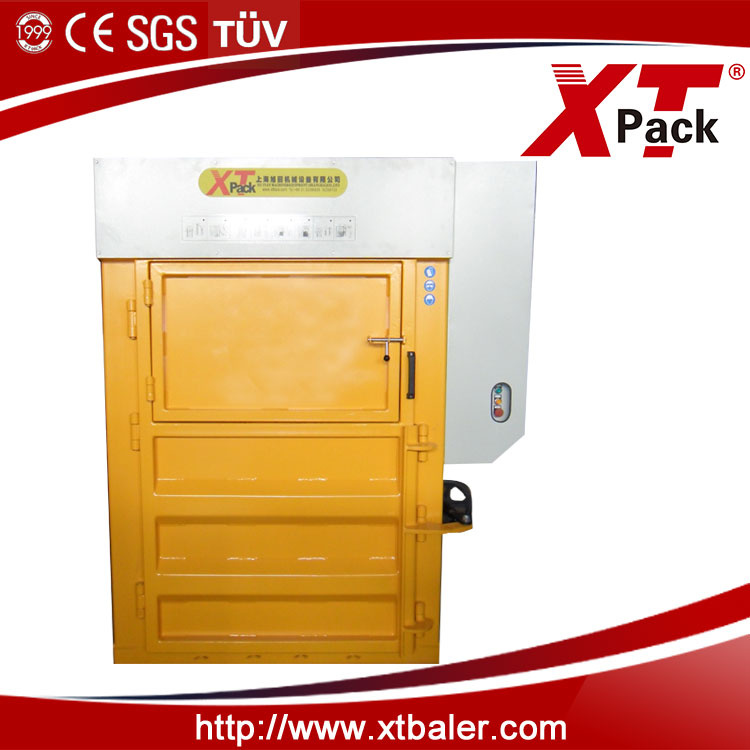

Vertical Baler with Crossed Cylinders
Usage
Specialized in compressing cardboards, paper, plastic scraps etc. Cross-cylinder design reduces the height of the balers, conveniently for transportation, installation and maintenance.
Machine's Main Features:
1. Automatic bale ejector for quickly and easily ejecting the bales from the machine
2. Cross-cylinder design reduces the height of the balers, conveniently for transportation, installation and maintenance
3. The RAM will stop running downwards when the feeding gate is opened which ensures the safety of the operation
4. Two hands are required for pressing the buttons when eject the bales out from the machine, ensures the safety of the operator
5. Equipped with independent emergency stop for safe operation
6. Equipped with Euro and U. S standard anti-rebound gate structure which makes sure the safety of operation
7. PLC control system ensures the uniform bale weight
8. Special RAM guides design makes the platen not slope because of uneven materials feedings during compression
9. Equipped with NOK seals that from Japan means longer lifespan of the seals
10. Equipped with A. M. C. Oil pipe joints that from Japan ensures the machine far away from oil leakage problems
11. Equipped with cartridge valves that from USA, less space required for the installation
12. Low noise design, ensures the noise no more than 70dB
Delivery time: Fifty days after receiving 30% deposit!
Technical parameter:
| Model | XTY-300LJ12080 | XTY-500LJ12080 |
| Pressure | 30tons | 50tons |
| Feed Opening Size(L*H) | 1050*550mm | 1050*550mm |
| Baling Chamber Height | 1600mm | 1600mm |
| Bale Size(L*W*H,H is adjustable) | 1200*800*(500-1100)mm | 1200*800*(500-1100)mm |
| Bale Weight | 200-400kgs | 250-500kgs |
| Power | 4kw | 5.5kw |
| Machine Weight | 2100kgs | 2500kgs |
| Machine Overall Dimension | 1800*1400*2300mm | 1900*1500*2350mm |
Jiangsu Xutian Environmental Protection Machinery Co., Ltd has been designing and manufacturing the waste materials compressing equipments for over 10 years, the company has established the good relationship with customers from all over the world.
The machine we produced can be applied for scraps, cartons, newspaper, PET bottles, plastic films, straws, non-woven fabrics, hard plastic baskets and other loose materials' pressing. XTPACK baling are CE certified and can supply you specialist solution for compressing waste materials by up to 95% into sorted, easily transportable bales.
In XTPACK plant, the motivated and highly-skilled professionals are dedicated to give you satisfied service. We delivery quality and also responsible for this after sale. We take services seriously and are committed to helping our customers in best way possible.
Following are series of our main products:
Small-sized & air-absorbing automatic balers.
Medium-sized automatic balers.
Large automatic balers.
30-60T horizontal baler with closed gate.
100T horizontal baler with closed gate.
Semi-auto horizontal baler for carton factory.
Vertical chamber lifting baler.
Vertical carton baler.
Small vertical baler.
Welcome to order, we will serve you.
