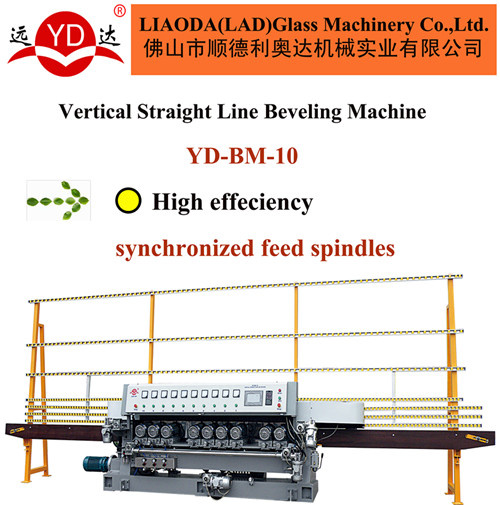

Vertical Straight Line Beveling Machine
Specifications
Glass Machine
(1). 10 wheels with pneumatic polishing
(2). PLC controller
(3). High effeciency synchronized feed spindles
Glass machine

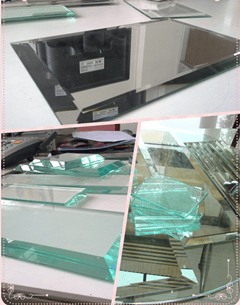

1. Thanks to pneumatic adjusting for polishing wheel, the machine can polish glass with fine and clear surface.
2. With PLC controller, all processing data are set and adjusted on the screen, which greatly facilitate production. Here are the basic information:
Module: YD-BM-10
Wheel number: 10pcs
Min. Glass size: 150x150mm
Glass thickness: 5-19mm
Bevel angle: 3-30 degree
Max. bevel width: 35 mm
Glass speed: 0.8-3 m/min
Compress air consumption: 1It/min
Pressure: 6kg/cm2
Power: 23.5KW
Out dimension: 7.2x1.2x2.6m
Weight: 3500kg
LIAODA(LAD) Glass Machinery Co., Ltd. is the consignee of Yuanda Glass, which is one of the leading glass machinery designer and fabricator in China in manufacturing popular glass cold and hot processing machinery.
Since 1988 we have worked out first Chinese glass edging machine, with our continuous research and development, in 2000, our first horizontal flat glass tempering furnace has came into being, now hundreds of our intelligent and diligent machines have been running at the sites of domestic and overseas.
All our engineers have years of working experiences in glass fabricating and glass machine manufacturing. On the base of absorbing the latest technologies, we know very well the advantages and disadvantages of all types of existing glass machines, therefore our compact design and sophisticated manufacturing center enable us to construct the most top quality of glass machines at the possible lowest cost.
A LITTLE MORE PRACTICAL, A LITTLE MORE INNOVATIVE is our Motto, on the way of modernization and globalization, we will commit ourselves to satisfy your requirements and our full experiences will absolutely be beneficial to any kind of your needs in flat glass processing.
