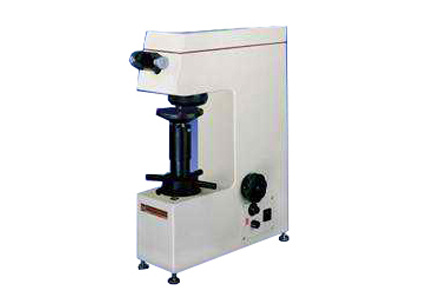

Product Specifications
| Prod Model: |
HV30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Main Features
* Automatic loading and releasing mechanism
* Adjustment of lighting source via hardware
* Adjustment of pressure holding time (0~30s)
* Unique measurement conversion device and unique micro eyepiece one- time measurement readout device, ensuring easy use and high accuracy
* The tester is specially designed for testing minute, thin samples or parts after surface coating or general mechanic cal part
Technical specifications
Test Load: 19.6N(2kgf), 29.4N(5kgf), 98.0N(10kgf), 196N(20kgf), 294N(30kgf), 490N(50.0kgf)
Hardness value symbol: HV2, HV3, HV5, HV10, HV20, HV30
Error range in display: ± 3.0%
Hardness value range in measure: 10HV2~2500HV30~2.0%
Pressure loading & unloading method: Automatic
Magnification of microscope: 100X
Pressure holding time: 0~30s (5 second as input increment)µ M
Minimum measurable unit: 1µ M
Maximum height of sample: 150mm
Distance from indenter's center to outer wall: 130mm
Main unit weight: Approx. 38Kg
Power source: AC220V/110V 50Hz/60Hz
Machine size(L x W x H): 452 x 200 x 620mm
Standard delivery
Vickers indenter 1
Weight 3
Power cable 1
Lamp 2
Certificate 1
Manual 1
Test table (big, medium, small) 1each
Horizontal regulating screw 4
Vickers test block (high, medium) 1 each
Measuring microscope 1
Object lens 10X, 25X 1 each
Optional accessories
Forcipate test table
Cylindrical test table
X-Y plotter
Gradienter
Knoop indenter
Digital camera
Shutter line
Magazine
Special single page magazine
Photographic eye piece
Fine specimen measuring test table
Main body of photographic instrument linker
