Product Specifications
| Prod Model: |
MHV5103050 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Main Features:

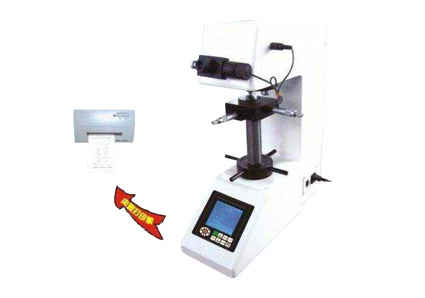

This Digital Vickers Hardness Tester made with a unique and precise design in the fields of mechanics, optics and light source is able to produce a clearer indentation and hence a more precise measurement. By means of 10x lens, 20x lens or 20x lens and 40x lens, the tester has a wider measurement field and broader usage range. The set of lens (2 pieces lens ) can be selected according to the user's requirement. Due to adopt a large LCD screen, operation seems more directly and clearly. It shows the measuring method, the test force, the indentation length, the hardness values, the dwell time of the test force as well as the number of measurements - all shown on its LCD screen. Besides, it has such function as registering the date, and measuring results, treating the data, outputting the information with the printer, and carrying out the operations of directly showing the measure number, exchanging the scales among the 17 scales, putting the data into the bank and linking RS232 interface, With a threaded interface supplied to link with a digital camera and a CCD pickup camrea, it also can be connected with video measuring devices and indentation automatically meausring device without switching optical path. Uniquely adopts cold light source, the usage life of light source reach 100000 hours. By means of closed - circuit system for control, CPU controls testing force to load; Dwell and unload, the sensor feedback information, therefore the lost of testing force value can be automatically compensated during testing and hence the testing force more accuracy. The instrument represents today's world advanced level among the products of the same kind in China.
After equipped up a camera device, the tester can take a photograph for testing indentation and material's metallographic composition.
Usage Range
Ferrous metals, non-ferrous metals, IC thin section, coating, ply-metals;
Glass, ceramics, agate, precious stone, thin plastic sections, etc.
Hardness testing such as that on the depth and the trapezium of the carbonized layers and quenched layers.
Technical Features and Standard accessories
Type: MHV-5: MHV-10: MHV-30: MHV-50
Testing Forces
N: 1.961\2.942\4.903\9.807\19.61\24.52\29.42\49.03: 2.942\4.903\9.807\19.61\24.52\29.42\49.03\98.07: 4.903\9.807\19.61\24.52\29.42\49.03\98.07\196.1\294.2: 9.807\19.61\24.52\29.42\49.03\98.07\196.1\249.2\490.3
KGF: 0.2\0.3\0.5\1\2\2.5\5: 0.3\0.5\1\2\2.5\3\5\10: 0.5\1\2\2.5\3\5\10\20\30: 1\2\2.5\3\5\10\20\30\50
Carriage Control: Automatic(loading/holding-up of loading /unloading)
Holding Time: (0~60)s
Amplification of the microscope: 200X\400X: 100X\400X: 100X\400X: 100X\200X
Min. Graduation value of the test drum wheel: 0.0625um: 0.125um
Testing field: 1HV~2967HV
Lens/Indenter switch: With Motorized Turret
Dimension of the X-Y table: 100X100mm: Without
Movement field of the X-Y table: 25X25mm: Without
Max. Height of the specimen: 170mm
Max. Width of the specimen: 130mm
Light source: Cold light source
Power: 110V/220V, 60/50Hz
Objective: The objective 10x\20x\40x can be selected according to user's requirement
Standard accessories: X-Y stage test able: Largest test table\"V"Shape test table
: 10X Digital Micro Lens\Level\Adjustable Screw\Vicker Hardness Block\RS232 Interface Line (supply according to modle of instrument)
Dimension: 535X225X580mm
Weight: Gross weight: 60Kg Net weight: 50Kg
