Product Specifications
| Prod Model: |
ONT650 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Class: |
Class Iiia |
| Central Wavelength: |
650±10nm @20 Oc |
| Typical Output Power: |
>1 MW (62.5/125um Mm or 9/125um Sm) |
| Modulation: |
Cw, 2 Hz |
| Connect Interface: |
FC, Sc, St (Universal) |
| Range: |
Visibility Beyond 5km |
| Power Supply: |
2 X1.5V AAA |
| Operating Temp.( Oc): |
-10~+40 |
| Storage Temp ( Oc): |
-20~+50 |
| Weight (G): |
50 |
Product Description

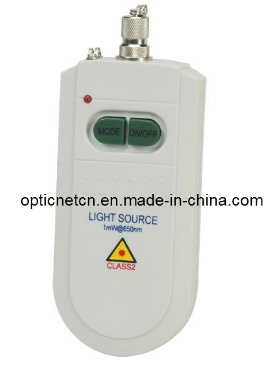

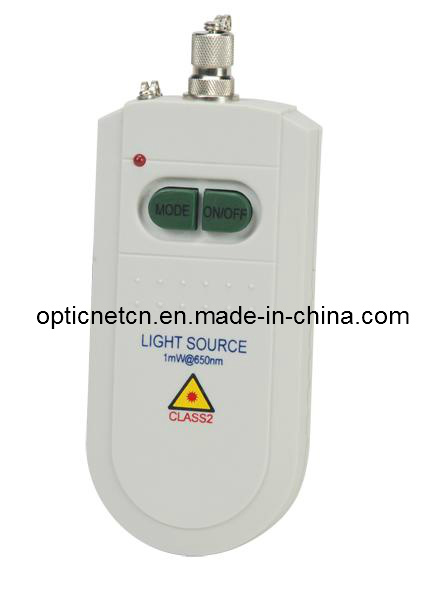

DescriptionThe Model ONT650 Visual Fault Locator is a rugged, handheld, and easy-to-use optical visual fault locator for singlemode and multimode applications. Commonlyknown as a VFL, the Model ONT650 features a universal "fast connect" interface that accepts any connector style with a 2.5mm ferrule. It operates on2 1.5V AAA battery with 30hours continues working time. The VFL outputis from 650nm visible red laser providing visibilitybeyond 5km, assuring 1mW output power.
The ONT650 features a choice of continuous wave or flashing output. The "fast connect" interface eliminates the inconvenienceof having to use apatch cable for direct connection to fiber undertest if connector styles are dissimilar.
The model ONT650 VFL is an ideal assistant in installation, testing and finding breaks in LANs, verifying short lengths of installed fiber, or looking for cracked fiber in splice cases, bad connectors, tight bends in fiber cable, backbone breaks or anywhere light connunity needs checking. Connectors, tight bends in fiber cable, backbone breaks or anywhere light connunity needs checking.
Features. Singlemode and Multimode Operation
. Universal "fast connect" Interface, SC, ST, FC Available
. Two AAA Batteries, 30hours of Continuous Operation
. Continuous Wave Output Or Flashing Output (2Hz)
| Model No. | ONT650 |
| Laser Class | Class IIIA |
| Central Wavelength | 650±10nm @20 ºC |
| Typical output Power | >1 mW (62.5/125um MM or 9/125um SM) |
| Modulation | CW, 2 HZ |
| Connect Interface | FC, SC, ST (Universal) |
| Range | Visibility beyond 5km |
| Power Supply | 2 X1.5V AAA |
| Operating Temp.( ºC) | -10~+40 |
| Storage Temp ( ºC) | -20~+50 |
| Weight (g) | 50 |
| Dimensions(mm) | 100x50x25 |
| Notes: SC, or ST, FC Separate Connector is on request. |
