Product Description

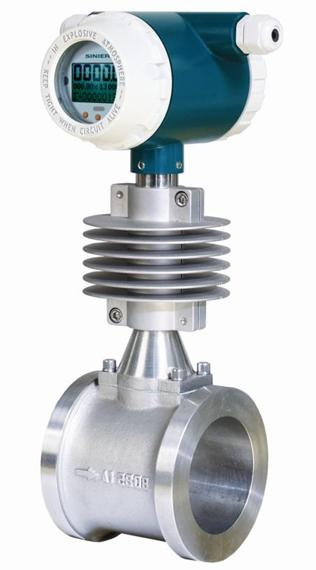

STLU Vortex Flow meter
Fluid: Liquid, Gas, Steam
Not for: Fluid with high viscosity
STLU series smart vortex flow meter is mainly used for measuring flow of industrial pipeline fluid, such as gas, liquid and steam, etc. It has little pressure loss, broad span range and high accuracy. It is not under influence of density, pressure, temperature and viscosity when measuring volumetric flow. It has no movable mechanical parts with high reliability and little maintenance.
General Introduction
STLU series smart vortex flow meter is mainly used for measuring flow of industrial pipeline fluid, such as gas, liquid and steam, etc. It has little pressure loss, broad span range and high accuracy. It is not under influence of density, pressure, temperature and viscosity when measuring volumetric flow. It has no movable mechanical parts with high reliability and little maintenance.
Technical Parameter Table
Installation Type Measured Fluid Accuracy Repeatability
Pipe Type Gas (incl. Steam) ± 1.5 %
± 1.0% 0.50%
0.33%
Inserted Type Gas
Liquid ± 3.0%
± 2.5% 1.00%
0.83%
Measuring Range Gas (incl. Steam): 7~55 m/s (7~50 m/s for DN≥ 200)
Liquid: 0.7~5.5 m/s
Rated Pressure GB 1.6Mpa, 2.5Mpa, 4.0Mpa, 6.4Mpa
DIN PN16, PN25, PN40
JIS 10K, 20K, 40K
ANSI Class 150, Class 300, Class 600
Fluid Temperature -40~+250(-40~+120 for inserted)
+100~+350 (high temp)
Installation Type Pipe Vortex Flow Transducer
Inserted
Parts Name Material
Transducer Body 304 SS
Bluff Body 304SS
Detecting Probe
Connecting Rod 316SS
304SS
Radiattor A-alloy
Gasket High Temperature Resistance Asbestos
NBR
Graphite
Power Suply 24V DC
3.6V Lithium Battery (Local display)
Double Power Supply (24VDC, 3.6V Lithium Battery)
Output Signal Pulse, 4~20mA, RS-485, Hart, Modbus
Electric Terminal M20*1.5
Protection Grade Flameproof Exd II BT3-6
Insteinsical Safe Exia II CT3-6
Body Process SS Sand-blast for Transducer Body
And Plastic Coating for Amplifier Cover
Ambient
Temperature -35~60 (No LCD)
-5~60 (with LCD)
Relative Humidity 5~95%
