Product Specifications
| Prod Model: |
W11 SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color:Customized: |
Power: Mechanical |
| Automation: |
Automatic |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Medical |
Product Description
Main characters:
1 Plate-rolling form
2 Mechanical driven
3 Three drive rollers
4 High productivity
5 Easy to operate
6 Excellent product precision
7 Rich bending shapes.
8 CNC control
9 Best after-sale
Specification
W11-10*2500
Max thickness of coiled plate: 10mm
Max width of coiled plate: 2500mm
Yielding limit of sheet metal: 245m
Coiling speed: 4m/min
Min full loading diameter of coiled plate: 600mm
Diameter of top sharft: 250mm
Diameter of bottom sharft: 190mm
Central distance between bottom sharfts: 320mm
Motor power: 11kw
Size: 4680*1250*1450mm
Weight: 4800kg

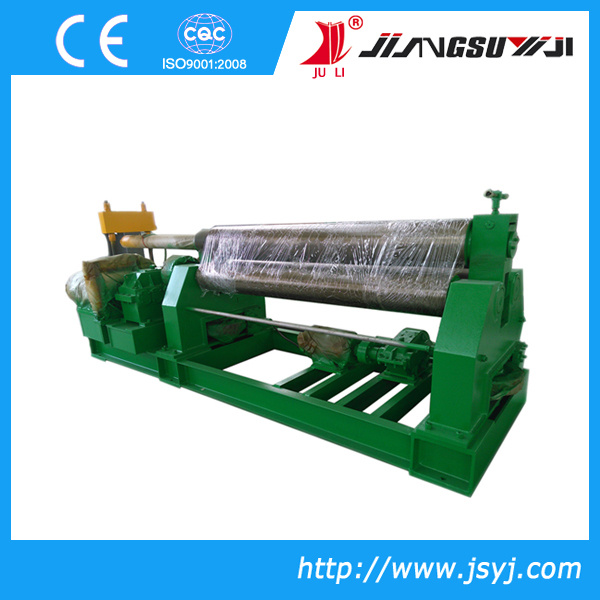

The machine adopts 3-roller symmetrical structure with the upper roller moving vertically in the center between the two lower rollers, which is achieved through the drive of the screw, the nuts, the worm and the lead screw, the two lower rollers rotates, and provides the plate materials with torque through the engagement of the output gear of the moderator with the gear of the lower rollers. The disadvantage of the machine is that the ends of the plate materials need to have the help from other equipment for prebending.
SpecificationMax Thickness of coiled plate (mm)Max width of coiled plate (mm)Yielding limit of sheet metal(mpa)Coiling speed(m/min)Min full loading dismeterof coiled plate(mm)Diameter of top shaft(mm)Diameter of bottom shaft(mm)Central distance between bottom shaft(mm)Motor power(kw)
Anna/Overseas Sales
MP: +86-188-6272-7666
Tel: +86-513-8869-1388
Fax: +86-513-8026-0000
|
Extra Services |
Exported to Countries USA, Australia, Brazil, Saudi Arabia, etc. |
|
Material of the roller: |
42CrMo |
|
Transducer: |
Omron |
|
Control: |
CNC |
|
Pump: |
Gear pump |
|
PLC: |
MITSUBISHI |
|
Operation: |
Touch Screen |
|
Seal parts: |
AILATE |
|
Axletree: |
Wafangdian axletree |
|
System: |
Hydraulic |
|
Seal |
NDK |
Our company is specialized in producing series of industrial sweeper machine, shearing machine, bending machine, rolling machine and plate unrolling leveling shearing production line of "Juli" brand. The products are widely applied to light industry, aviation industry, marine industry, metallurgy, instrument industry, electrical equipment, stainless steel product, construction and decoration industry, etc. The products are exported to Europe, Southeast Asia, the Middle East, etc.
Our company has several top-class experts with professional knowledge in cutting, bending, rolling and plate unrolling leveling shearing production line. The quality and technology are ranked as the first class in this field. Our company is constantly developing the leading-edge products with advanced consciousness, new concept, innovation and the overseas technology, which will lay the solid foundation for "Juli" to be a famous brand in the world in machine tool industry. All the staff members are devoted themselves to serving the company with meticulous professional dedication and solidarity. We are sincerely looking forward to cooperating with friends all over the world to create greater success.
Welcome you to visit at any time.
