Jiangsu Yiji Mechanical Technology Co., Ltd. >> W11-4*2000 Mechanical Symmetrical Three-Roller Plate Bending Machine

W11-4*2000 Mechanical Symmetrical Three-Roller Plate Bending Machine

Name: W11-4*2000 Mechanical Symmetrical Three-Roller Plate Bending Machine
Brand: china-manufacturer-directory.com
SKU: 725269045
Availability: InStock
Rating: 4.8 (125 reviews)

Supplier:	Jiangsu Yiji Mechanical Technology Co., Ltd.
Price:	US $ 5000-100000/Piece
Min Order:	1SET
Quantity::
Trade Terms:	FOB,CIF,DAP

Product Specifications

Prod Model:	W11 SERIES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:Customized:	Min Order:1set
Automation:Manual:	Extra Services:End Forming
Automation:	Automatic
Type For Cutting Machine:	CNC Cutting Machine
Type For Fold-bending Machine:	CNC Fold-bend Machine
Application:	Medical
Type:	Pipe and Tube Bending Machine

Product Description

Specifications

1)bending machine,
2)metallic processing machine,
3)pratical use, good quality.

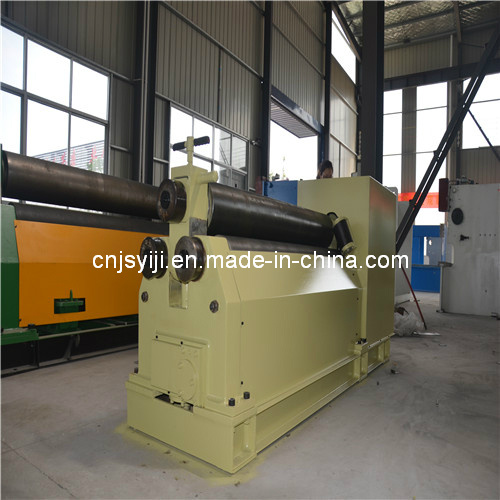

The machine adopts 3-roller symmetrical structure with the upper roller moving vertically in the center between the two lower rollers, which is achieved through the drive of the screw, the nuts, the worm and the lead screw, the two lower rollers rotates, and provides the plate materials with torque through the engagement of the output gear of the moderator with the gear of the lower rollers.The disadvantage of the machine is that the ends of the plate materials need to have the help from other equipment for prebending.

Our website:Www.Cnjsyiji.Com
Anna
+86-188-62713816

Model	Max plate thickness(mm)	Max plate width(mm)	Yielding limit of sheet metal(mpa	Coiling speed (m/min)	Main full loading diameter of coiled plate(mm)	Diameter of top roler(mm)	Diameter of bottom roll(mm)	Central distance between lower rollers(mm)	Motor power(kw)
W11-4x1500	4	1500	245	5	300	150	140	185	3
W11-6x1500	6	1500	245	5	380	160	140	220	4
W11-6x2000	6	2000	245	4.5	380	170	160	260	5.5
W11-8x2000	8	2000	245	4.5	400	185	170	260	5.5
W11-8x2500	8	2500	245	4.5	550	240	180	280	7.5
W11-12x2500	12	2500	245	4.5	600	260	220	320	11
W11-12x3000	12	3000	245	4	700	280	240	360	11
W11-16x2500	16	2500	245	4	700	280	240	360	11
W11-16x3200	16	3200	245	4	850	340	260	430	15
W11-20x2000	20	2000	245	4	700	280	240	360	11
W11-20x2500	20	2500	245	4	850	340	260	430	15
W11-25x2000	25	2000	245	4	850	330	270	430	15
W11-30x2500	30	2500	245	4	1200	420	360	550	30
W11-30x3000	30	3000	245	4	1200	450	390	600	37

Our company is specialized in producing series of industrial sweeper machine, shearing machine, bending machine, rolling machine and plate unrolling leveling shearing production line of "Juli" brand. The products are widely applied to light industry, aviation industry, marine industry, metallurgy, instrument industry, electrical equipment, stainless steel product, construction and decoration industry, etc. The products are exported to Europe, Southeast Asia, the Middle East, etc.

Our company has several top-class experts with professional knowledge in cutting, bending, rolling and plate unrolling leveling shearing production line. The quality and technology are ranked as the first class in this field. Our company is constantly developing the leading-edge products with advanced consciousness, new concept, innovation and the overseas technology, which will lay the solid foundation for "Juli" to be a famous brand in the world in machine tool industry. All the staff members are devoted themselves to serving the company with meticulous professional dedication and solidarity. We are sincerely looking forward to cooperating with friends all over the world to create greater success.

Welcome you to visit at any time.
