Water Bottling Filling Machine------------------6000bph

Product Specifications

Prod Model:	QGF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automatic Grade:	Fully Automatic
Structure:	Rotary
Feed Cylinder Structure:	Single-Room Feeding
Material Type:	Liquid
Type:	Volumetric Filling Machine
Filling Valve Head:	Multi-Head
Packaging Container Lifting Structure:	Pneumatic Lifting
Filling Principle:	Pressure
Packaging Type:	Bottle
Dosing Device:	Rotor
Packaging Material:	Plastic

Product Description

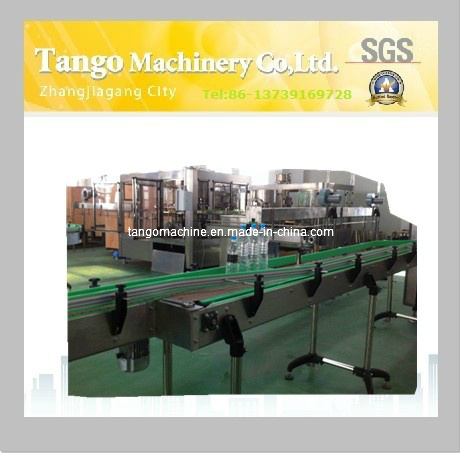

Water bottling filling machine

Summary:

CGF18/18/6 type PET washing/filling/capping 3-in-1 unnit machine. Whole machine clamp bottle bottle neck transport, steadily conveyor reliable, deduce machine stop failure, just need exchange very few exchange parts, can apply to multi-kind bottle type productyion requirement, ecliminate to abrasion to bottle body, steadily transport. Filling method is micro grative type filling, en-heighten filling speed, filling precision and production capacity. Capping method adopt to France import that is catch cap, then capping. It is special for pure water filling, whole fracture is new design, strong application, safe reliable manipulation, high auto degree.

Fracture character:

Bottle entry part:

1)air conveyor tunnel with bottle entry thumble wheel straight connecion bottle entry method.

2)Bottle entry thumble wheel adopt to new design that have bottle separation function bottle mouth clamp fracture, cancel bottle entry screw pole and conveyor chain, exchange bottle typ no need exchange and adjust any part.

3.2.2 Rotary type washing part

1) Bottle clamp quantity is 18PCS, washing water filter system.

2) Rotary plate full use SUS304 stainless steel weld.

3) Big size panel with wheel gear bearing, steadily move, reliable.

4) Adopt to special new design reverse rotary type bottle clamp, bottle clamp block bottle neck part, avoide traditional glue rubber to do bottle neck nestle to do polluate, bottle clamp adopt to SUS304 stainless steel making, enduration, sanitation.

5) Nozzle is high efficiency spray nozzle, can wash bottle inside wall any parts, can let washing efficiency more better, and can save washing usage water.

6) Bottle clamp and demote and promote fracture slide set all dopt to anti-corrasion, no need maintain bearing.

7) Bottle washing drive via machine frame inside transission system via wheel gear transit.

Rotary type filling part:

1) Filling valve is 18PCS, the can contact product part is SUS304.

2) Micro pressure filloing is more high filling precision, steadily filling. Liquid tank part adopt to sealing design, beatiful.

3) Rotary plate full adopt to stainless steel SUS304 making. Filling drive via machine frame inside tranission system via wheel grear transit. Support bearing is big size panel all bearing, steaidly operate, reliable. Bearing part set sealing circle, proof-water ect multi-tunnel proof water fracture, can efficiency avoid panel water leak to bearing inside.

3.2.4 Rotary type capping part:

Rotary is most high precision single machine, it greaty effect on machine operate reliable, producton defective ratio greatly effect. Our company production capping character ect:

1) Capping head-6PCS;

2) Advanced from Italy catch then capping technology during international level inside our country, and combine with asepsis filling machine production experience advance, let capping operate more steadily,
Capping torsion more precision, capping effect more reliable, can better reducer capping defective rate.

3) Set capping machine entry bottle inspection switch, cap drop guid rail and thumble cap connection site cap lock cylinder control cap lock controlling cap exhuast, ensure no bottle no feeding cap, reduce user cap consumption.

4) Cap drop guid install one group of photocell switch, when cap drop guid no cap, will auto stop machine operate and alarm, can efficiency avoid no cap no bottle.

3.2.5 Cap un-scrambler part:

1) Set electro no cap inspection system, auto controlcap supply and whole machine operate speed.

2) 304 stainless steel cap warehouse, import compressor air pipeline component, deduce bottle cap second time pollute, SUS304 stainless steel down cap warehouse, cap cover warehouse, with electrons no cap inspection system, auto control supply cap and whole machine operate spee.
