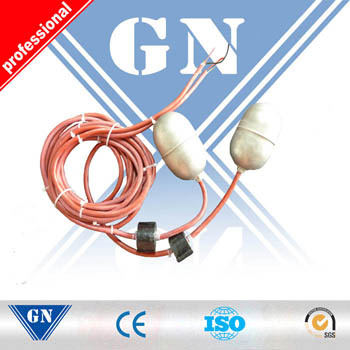

Water Level Meter (CX-FLM)
Product Specifications
| Prod Model: |
CX-FLM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO,CE,SGS |
| Output: |
Switch Type and Analog Output |
| Protection: |
IP68 |
| Temp: |
200c |
| Explosion-Proof: |
Yes |
| Anti-Corrosive: |
Yes |
| Experience: |
More 20 Years |
| Exported: |
More 80 Countries |
| Technology: |
Advanced |
| Quanlity: |
World Class |
Product Description
We specialize in designing and manufacturing kinds of magnetic switches and sensors, such as high-end Reed Switch (Agent), Plastic Mould Reed Switch, Magnetic Proximity Switch/Sensor, Flow Switch, Flow Sensor, Liquid Level Float Switch/Sensor, Temperature control Switch, Electrode, etc.
Float type level sensor/switch is made by housed in a fixed pole of reed switches and in the ball float of permanent magnet, the float surround in a fixed pole. When float along with the change of the liquid level rising or falling, the permanent magnets in the float generated magnetic field near or far away from reed switches, which make closed or disconnected outputting corresponding switch signals. Float and fixed pole made by non-magnetic metal or engineering plastic.
Float type level sensor/switch can be used for water, gas, diesel, oil and water mixture, printing ink, alcohol and other chemical liquids. Control liquid surface precision can reach ± 3 mm.
Another vehicle fuel level sensor outputs resistance signal, resistance change between 5 W-100 W or 20W- 200W or other customize for continuous liquid level.We specialize in designing and manufacturing kinds of magnetic switches and sensors, such as high-end Reed Switch (Agent), Plastic Mould Reed Switch, Magnetic Proximity Switch/Sensor, Flow Switch, Flow Sensor, Liquid Level Float Switch/Sensor, Temperature control Switch, Electrode, etc.
| Type | CX-FLM-BUQK-01 | CX-FLM-BUQK-02 | CX-FLM-BUQK-03 |
| Anti-explosion class | DIIBT4 |
| Medium pressure | 4.0 MPa |
| Medium temperature | Normal:≤150ºC ,High-temp:≤350ºC |
| Contact capacity and | AC:220V,1.5A,110V,2.5A ;DC:24V,2.5A,240V,0.5A |
| Flange | DN80,Outer diameter 200mm |
| Working life | 5×102 |
|
|
| Switch difference | ≤14 | 25~550 | 8~1000 |
| Tuning method | Not adjustable | Class adjustable | No-class adjustable |
| Installation type | Horizontal | Horizontal | Vertical |
| Rating current and voltage | CX-FLM-FYK-3 |
| Rating current and voltage | 10(8A)250V-10(4A)380V |
| Rating power | 1KW |
| Working temperature | 20C-80C |
| Accuracy | 0.05m |
| Working pressure | 1atm |
| Medium | rinsing, sewage ,oil |
| Cable length | standard 3m ,4m , 5m ,10m(can be customized in other length) |
| CX-FLM-FYKG |
| Rating current and voltage | 10(8A)250V-10(4A)380V |
| Rating power | 1KW |
| Working temperature | -20C-150C |
| Contact capacity | 10A/250VAC |
| Accuracy | ±0.05m |
| Medium | Rinsing, sewage ,oil |
| Cable length | Standard is 5m (can customize in other length) |
| CX-FLM-FYKS |
| Rating current and voltage | 10(8A)250V-10(4A)380V |
| Rating power | 1KW |
| Working temperature | -20C-80C |
| Accuracy | ±0.05m |
| Medium | Rinsing, sewage ,oil |
| Cable length | Standard :3m ,4m , 5m ,10m( (can customize in other length) |
| CX-FLM-KEY |
| Working voltage | 250V~380V |
| Working current | 10(8A)~10(4A) |
| Working temperature | 0~80ºC |
| Power life | 1×100000 times |
| Machine life | 5×100000 times |
| Cable length | 3m 4m 5m 10m etc.. And can customize according to requests |
| CX-FLM-RF-20F |
| Installation | vertical ,bottom installation (like vertical+/-02) M8 |
| contact capacity | 50w |
| Switch Voltage | 220VAC |
| Switch current | 0.5A |
| Insulated resistance | >10MΩ |
| working life | 100 ten thousand times |
| Working temperature | -10~75ºC |
| Working pressure | 15Bar |
| Accuracy | ±2mm |
| Medium gravity | >0.55 |
| Accuracy | ±2mm |
| Material | PP |
| CX-FLM-RF-3001-3 |
| Installation | top or bottom flange mounted DN40/50/80(vertical +/-20°) |
| Electric connection | 300mm, UL1430 AWG22 |
| Bar material | SUS304 |
| Working pressure | 6kg |
| Working temperature | ≤80ºC |
| Accuracy | +/-2mm (in the water) |
| Repeatability | +/-1mm (in the water) |
| Switch type | N.C./N.O |
| Work voltage | 250VAC,200VDC |
| Work current | 0.70A |
| Switch power | 70VA |
| Durability | 100000times |
| Float dimension | Dia.28 * dia.9.50*28 |
| Type | CX-FLM-UQK-01 | CX-FLM-UQK-02 | CX-FLM-UQK-03 |
| Protection | DIIBT4 |
| Medium pressure | 1.0 MPa |
| Medium temperature | Normal:≤100ºC ,High-tem:≤350ºC |
| Working life | 5×100^2 |
| Power and contact capacity | AC:220V/1.5A,110V/2.5A ;DC:24V/2.5A,240V/0.5A |
| Net weight | 1.5~2.0Kg |
| Switch difference | ≤8 | 25~550 | 8~1000 |
| Tuning method | Not adjustable | Class adjustable | No-class adjustable |
| Installation type | Horizontal | Horizontal | Vertical |
| CX-FLS-LY |
| Ambient Temperature | -25/+60ºC |
| Fork Body Material | Copper alloy or stainless steel (order as user requirement) |
| Power Supply | AC220V/50Hz DC24V |
| Consumption | 1.5W |
| Output Signal | 2 groups of normal open and normal close contact: contact capacity 220VAC 5A . 24VDC 10A. null has a 10/0mA output |
| Amplitude of vibration | Adjustable, easy for measuring different state and density of material |
| Maximum Outline of Material Grain | ≤10mm |
| Maximum pressure in vessel | 1.0MPa (it should specify pressure while ordering) |
| Working Temperature in Vessel | -20/+200ºC (it should specify temperature while ordering) |
| Vibration Frequency of Tuning Fork | About 200 Hz |
| Amplitude of Vibration at Tip of Tuning Fork | About 0.5mm |
| Damp Time Delay of Tuning Fork | About 2 S |
| Free Time Delay of Tuning Fork | About 7 S |
| Medium should be none viscous material | Without the contain corrosive material to fork body |
| CX-RL-RF SERIES LEVEL CONTROLLER |
| Power Supply | 24VDC; 220VAC |
| Relative Humidity | ≤85% |
| Output Signal | Two groups of normally-opened and normally-closed contact |
| Contact capability | AC220V,5A; DC24V,3A |
| Environment Temperature | -40ºC~+60ºC |
| Medium Temperature | -180ºC~+500ºC |
| Time Delay | 0.2S(0.2~30S adjustable) |
| Protection | IP65 |
| Probe Material | 316 SS, Teflon, High temperature plastic, ceramics |
| Explosive-proof | ExdIIBT4 |
| Connection | 3/4″NPT thread,3/4″pipe thread;flange (alternative);1 – 1/ 2″pipe thread |
| Mounting | Top-mounting, Side-mounting |
| Model | XBD-1 | XBD-2 | XBD-3 | XBD-*R |
| Material Temp. | -10~+80C | -10~+80C | -10~+80C | -10~+300C |
| Mounting Mode | Flange mount. | G1.5 in thread | Flange mount. | Two ways |
| Weight | 2.0Kg | 1.5Kg | 2.0Kg | 2.5Kg |
| Application | upper, lower limited measurement |
| Paddle Speed | 5 or 6 r/m |
| Medium Density | ≥0.2g/cm3(bigger paddle) |
| Sensitivity | Five spans adjustable(mechanism) |
| Ambient Temp. | -10~+80C |
| Power Supply | 36VAC,110V,115V,220V,50Hz |
| Output | Switch signal |
| Con. Capacity | 220V 3A (AC) |
| Consumption | <3W |
