Waterproof Connector 13W3 D-SUB Power High Current Solder Type

Name: Waterproof Connector 13W3 D-SUB Power High Current Solder Type
Brand: china-manufacturer-directory.com
SKU: 753241315
Availability: InStock
Rating: 4.7 (82 reviews)

Supplier:	Dongguan City Adam Electronic Technology Co., Ltd.
Price:	US $ 2.2-5.0/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	AD13w3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Waterproof D-SUB
Interface Type:	13W3
Function:	Waterproof
Certificate:	RoHS, CE
Contact Material:	Copper Alloy
Plated:	Gold Plating
Shell:	SPCC
Current Rating:	10A,20A,40A
Withstand Voltage:	1000V AC for 1 Minut
Delivery:	About 7 Days After Confirming The Order
Application:	PCB
Gender:	Male or Female

Product Description

Waterproof Connector 13W3 D-SUB power high current solder type

Product Description

Description	Details	Code
1. Connector Size	ADAM-D-SUB	D-SUB
2. Current Rating	10-40A	10-40
3. Number of Contacts	3w3,5w5,7w2,9w4,13w3	3w3,5w5,7w2,9w4,13w3
4. Connector Type	Without SR	B
5. Connector Gender	Male ,female	M ,F
6. Contact Gender	Male ,Female	M ,F
7. Assembly Style	Field Installation	A
8. Mating Style	Screw	S
9. Backshell	Straight /45 degree Angle	ST
10. Waterproof Rating	IP6 8	8
Material : Insulator: UV resistent, Nylon+GFUL94V0 Contacts:Brass, Nickle Plated or Gold plated Sealing: Silicone RoHS, CE
Property : Contact Resistance: <5mΩ Insulation Resistance: ≥500 MΩ at DC500V Breakdown Voltage: ≥2.5kV normal, 1 .0kV water Temperature Rating: -45 °C ~+105 °C Protection Ration: IP68 10m Water 2 weeks Durability: 3K plug/Unplug Cycles

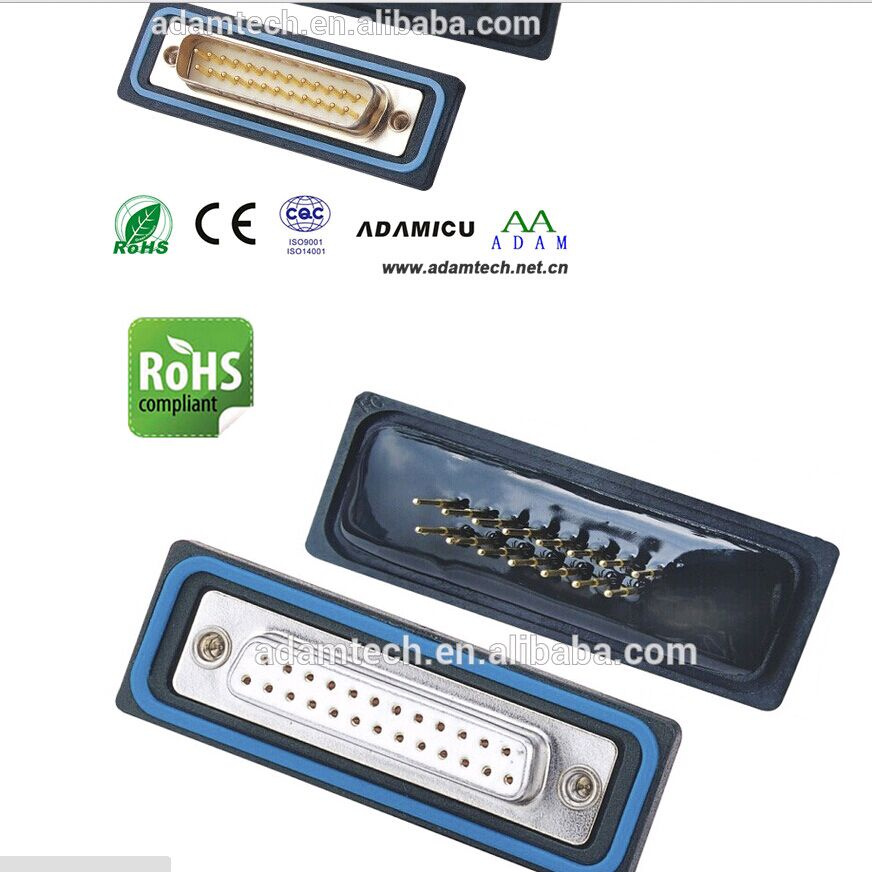

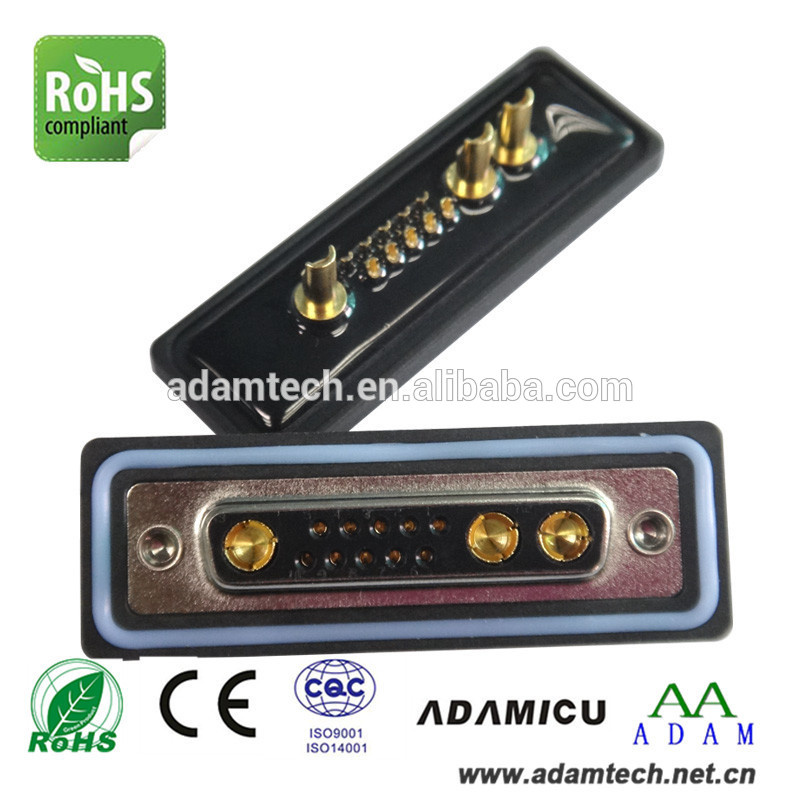

Product show

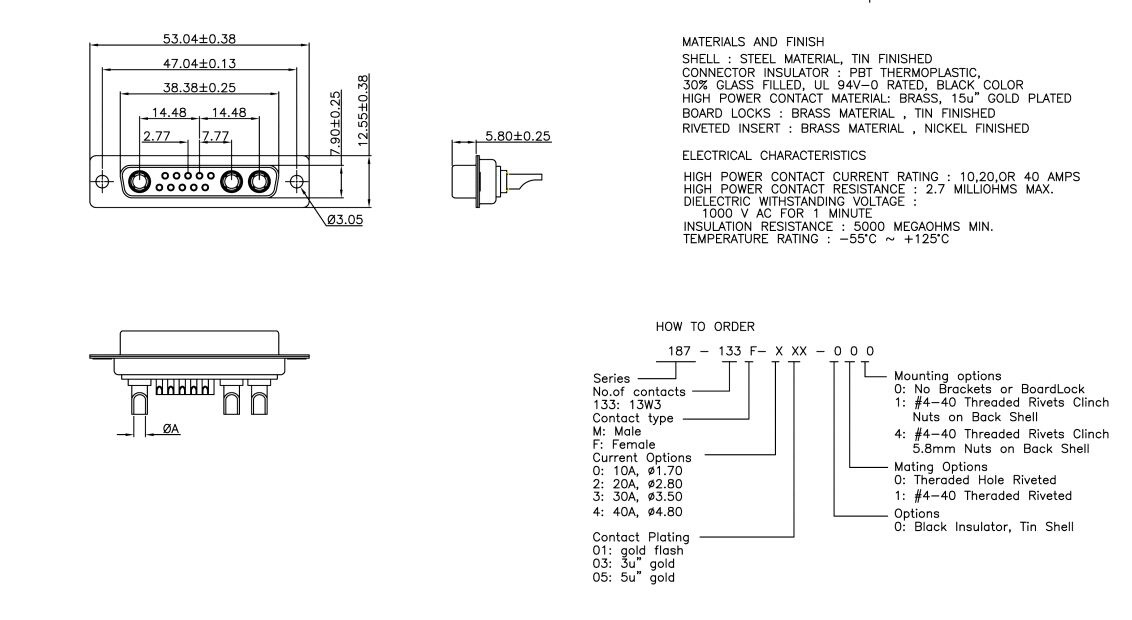

Drawing paper:
