Product Specifications
| Prod Model: |
ADD-SUB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Waterproof Connector, High Voltage |
| Interface Type: |
13W3 |
| Coupling Mechanism: |
Double Bayonet Plug-in |
| Function: |
Waterproof |
| Contact Material: |
Copper Alloy |
| Certificate: |
RoHS, CE |
| Current Rate: |
10A/20A/30A/40A |
| Gender: |
Female |
| Application: |
Power, PCB |
Product Description

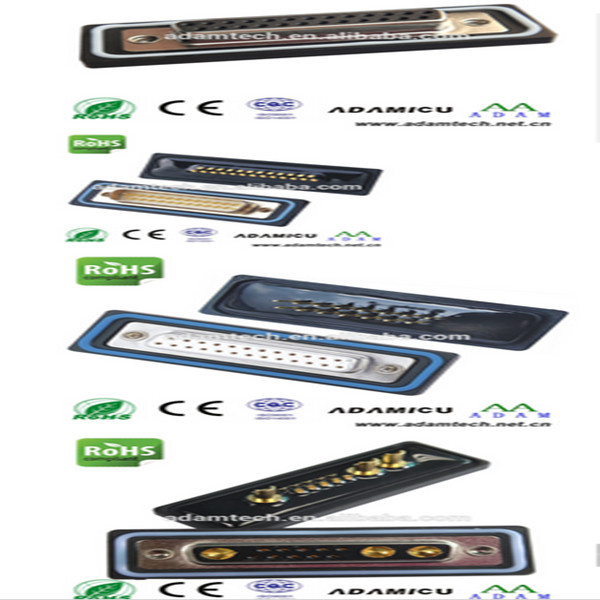

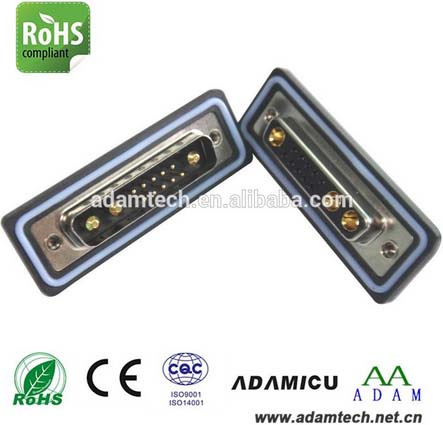

Waterproof Connector Female 13W3 D-SUB power solder type straight for pcb
Specifications
1.many types 2.fast delivery 3.passed CE, ROHS Waterproof Connector Female 13W3 D-SUB power solder type straight for pcb
Description | Details | Code |
1. Connector Size | ADAM-D-SUB | D-SUB |
2. Current Rating | 3-7A | 3-7 |
3. Number of Contacts | 9,15, 25,37,50 | 9,15,25,37,50 |
4. Connector Type | Without SR | B |
5. Connector Gender | Male,female | M,F |
6. Contact Gender | Male,Female | M,F |
7. Assembly Style | Field Installation | A |
8. Mating Style | Screw | S |
9. Backs hell | Straight /45 degree Angle | ST |
10. Waterproof Rating | IP68 | 8 |
Material: Insulator: UV resistent, Nylon+GFUL94V0 Contacts:Brass, Nickle Plated or Gold plated Sealing: Silicone RoHS, CE
|
Property : Contact Resistance: <5mΩ Insulation Resistance: ≥500 MΩ at DC500V Breakdown Voltage: ≥2.5kV normal, 1.0kV water Temperature Rating: -45°C~+105°C Protection Ration: IP68 10m Water 2 weeks Durability: 3K plug/Unplug Cycles |
It is widely used in ·New energy ·LED ·Industrial control product ·Automotive ·Security product ·Power Supply ·Electric Vehicle ·Solar Energy ·IPC ·Various Mold It is high performance and competitive price. Welcome OEM/ODM. |
About us:
1.Our company is specialized in D-sub connector,DVI connector ,HDMI connector,USB connector, DC jacks,DC plug,Cables,Connectors and Components.
2.OEM&ODM are acceptable.
3.We are fully aware of reducing the environmental impact of our products,we implemented ROHS management system to make sure all products accordance.
4.We are professional because we are more studious than others. We are excellent due to we are more aborative and responsible than others.
Quality and marketing
We set up a integrated quality assurance system to guarantee the quality.
Incoming quality control(IQC)
In-process quality control(IPQC)
Outgoing quality assurance(OQA)
All goods have to passed before test and inspection before send to customer.
Dimension inspection
Exterior inspection
Functional test
High Quality + Best Price + Fast Delivery + Quick Response !
Welcome Your Inquiry to Adam Tech Company!
Dongguan ADAM Electronic Technology Co., Ltd., founded in Changan, Dongguan, is a professional manufacturer specialized at connectors and cables. For many years, we have kept up the pace with the market and taken "Think ahead, Innovate continuously, Pursue excellence and Serve customers" as the operation philosophy, allowing our company to be competitive in the market.
Our company is a well-appointed and specialized connector manufacturer with mature mould developing and processing technologies. Our company is influential and product quality is guaranteed. At present, there are 6 injection moulding machines, 6 high speed punches and 18 automatic assembly machines.
Our main products include VGA, DVI, HDMI, FFC & FPC wafers, cards, cables, connectors and components, involving computer interface devices, mobile phones, digital devices, LCD TVs, set-top boxes, game consoles, communication equipment, aviation, exchange and other areas. All the products comply with RoHS standard.
Quick response to market, perfect products and customer satisfaction have just been enlarging our customer group. We take "Human-Oriented, Honest and Trustworthy, Striving for Perfection and Common development" as the principle and "Quality First, Reputation Foremost, Quick Response, Featured Services and Continuous Development" as the operating philosophy. Adhering to excellent quality and reasonable price, we stand on China and embrace the world, and have built up long-term stable cooperative relationships with many customers both from at home and abroad. Our honest working style and excellent quality are highly approved by the fellow traders. We will always provide you with excellent services, and sincerely look forward to building up cooperation with customers from at home and abroad.
Looking into the future, we will spare no effort to enrich our products, stabilize product quality, continue the quality policy of "quality first, customer foremost", and create a bright future together with all customers.
