Product Specifications
| Prod Model: |
TY-3000SZ & TY-1500SZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission Modulation: |
FM |
| Frequency: |
1.2GHz, 2.4GHz |
| Wireless Mode: |
Point to Point |
| Antenna Type: |
External Directional Antenna |
| Support Range: |
3-5km (Los) |
| Function: |
Video, Audio & RS485 Signal |
| Application: |
AV, RS485, Internet and WiFi Transmission, Video Transmission |
| Modulation: |
FM |
Product Description

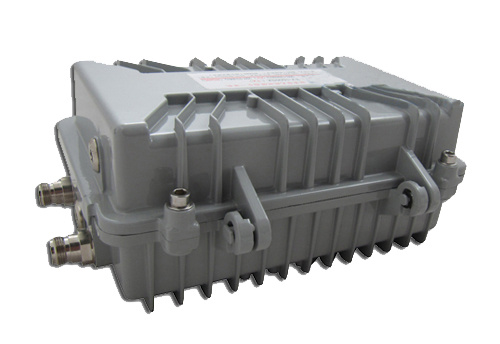

Waterproof wireless AV and PTZ transmitter and receiver system
Product Overview:
TY-3000SZ and TY-1500SZ microwave wireless image transmission system using FM transmission means of microwave remote monitoring video signals and audio signals. Transmission distance, performance, stability, frequency adjustment digital display itself features a waterproof and dustproof, suitable for outdoor and harsh environments. The system is working with the L-band (920 ~ 1300MHz), S-band (2414 ~ 2510MHz) within the full real-time image transmission, transmission distance TY-3000SZ can be transferred to 5 km, while TY-1500SZ is 3KM. With the Following the fear shelter. The system technology is mature and cost-effective.
Product Selection: TY-3000SZ, TY-1500SZ
Main frequency:
921MHz 993 MHz 1021 MHz 1051 MHz 1060 MHz
1080 MHz 1100 MHz 1120 MHz 1140 MHz 1160 MHz
1180 MHz 1200 MHz 1220 MHz 1240 MHz 1260 MHz
1280 MHz 2414 MHz 2432 MHz 2450 MHz 2468 MHz
2370 MHz 2390 MHz 2490 MHz 2510 MHz
|
Microwave Image Transmitter System Index |
|
Working frequency |
0.9GHz~1.3GHz\2.4GHz~2.5GHz |
|
Transmit power |
31dBm~35dBm |
|
Output impedence |
50Ω |
|
Input video |
1 Peak-Peak |
|
Input audio |
0.1~1.0 Peak to Peak |
|
Working voltage |
220 AC V or 12VDC |
|
Modulation format |
FM |
|
Modulation bandwidth |
20MHz |
|
Video format |
PAL |
|
Ambient temperature |
-20~+55°C |
|
Microwave Image Receiver System Index |
|
Input frequency |
0.9GHz~1.3GHz \ 2.4GHz~2.5GHz |
|
Input impedance |
75Ω |
|
Input level |
-65~-35dBm |
|
Noise gate |
6dB Typical |
|
Video format |
PAL/NTSC |
|
Working voltage |
AC110~250V |
Teng Yuanzhi Shenzhen Electronic Co., Ltd. is specialized in high-end wireless video monitoring system, colsed-circuit monitoring system satellite communication system, CATV and microwave remote video surveillance system. Wireless control and image transmission system development and application of high-tech private enterprises. The company is one of the wireless microwave transmission systems and network multimedia communications pioneer and leader.
The company has the strong technology and R&D capacity reserve, also has the climax R&D team, we are all committed long-distance microwave communicate industry, serviced security information and radio & TV industry. To create a peaceful harmonious society, we have the responsibility to revitalize the national science & technology. In today's world, the high-quality Remote microwave video transmission system has been widely used in various industries. Including: Government departments, Military, Security system, Oil field, Construction Corps, Large mining, Factories, Construction sites etc., for others large places discommodiousness span the cable need to set up the remote transmission. We are supplying for customers the wireless communication networking, wireless video surveillance and video conferencing integrated complete set of solve project. At present, our company has developed and had a few categories of products, high-end applications for the mobile, high-resolution image transmission system, base on 2.4/5.8GHz license-exempt bands wireless network transmission systems and traditional analog microwave remote image transmission system, the transmission distance from a few tens of meters to several kilometers. Change system can be applied to mountain, forest, countryside, desert, rivers, islands, oil, electricity, construction sites and other places the transmission environment.
The Remote image transmission system can transmit real-time, long-distance and high-definition video images, because of the image carrier frequency so high, has a strong immunity and transmission long distance, so it be popularitied by customers in the industry and has achieved good social benefits.
