Product Specifications
| Prod Model: |
WDW-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measurement Range Of Test Force: |
2%-100% |
| Test Type: |
Tension, Compression, Bending |
| Software: |
Maxtest Software with English Version |
| Operation: |
with Standard PC |
| Type: |
Universal Testing Machine |
| Weight: |
1000-2000Kg |
| Power Source: |
AC220V |
| Maxcapacity: |
100kn |
| Display: |
Computer Display |
Product Description

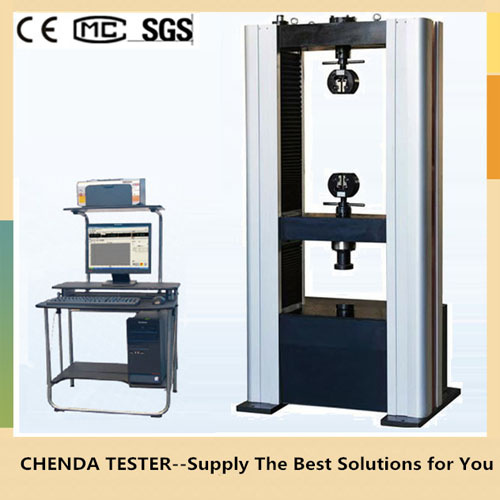

WDW-100 Computer control electronic universal testing machine 100 kn testing machine tensile pressure testing machine
Brief Introductions:
This machine adopts Japan's Shimadzu technical. Widely used in metal and nonmetal materials tensile, compression , shear and bending test. With different fixtures can do the fasteners tensile shear and bending test.
Functions:
1> This series are ideals for testing the tension, compression, bending and peeling of rubber ,plastic, textiles, electric wires, cables, network rope, wire, metal material ,etc. It can measure the tensile strength,bend strength,peeling strength,elongation,and and can print the curve of force-time,force-displacement and the testing reports automatically.
2> Computer closed-loop control, change testing force stages automatically ,save the test results automatically; In processing it can switch the appropriate measuring range by the load automatically ; test results can be arbitrary accessed and simulated reproduction at any moment; several specimens characteristic curves can be superimposed by a number of different colors; test curves can be tracked to show at any moment, any segment of the curve can be enlarged to be analysed; it is stopped if the specimen be breaked, overload, over-current automatically.
Packaging & shiping:
Packing with standard export wooden cases.
Shipping by sea with CFS/CFS from Qingdao sea port or for your requirement.
Technical specifications:
| Type | WDW-100 |
| Max. Test force | 100 KN |
| Measurement range | 1%-100% |
| Accuracy | Better than ±1% |
| Resolution | ±200000 |
| Measurement accuracy range for displacement | Better than ±1% |
| Displacement resolution | 0.001mm |
| Speed range | 0.01mm/min ~ 500mm/min |
| Power | 0.75kW,AC220V±10%,50Hz |
| Tensile space | 700 mm |
| Compression space | 600 mm |
| Test width | 400 mm |
| Working environment | Room temperature 10-35°C, Humidity 20%-80% |
