Price: | US $ 3500/Set |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Set |
Pay Type: | L/C,T/T,Paypal,Western Union |
Application:

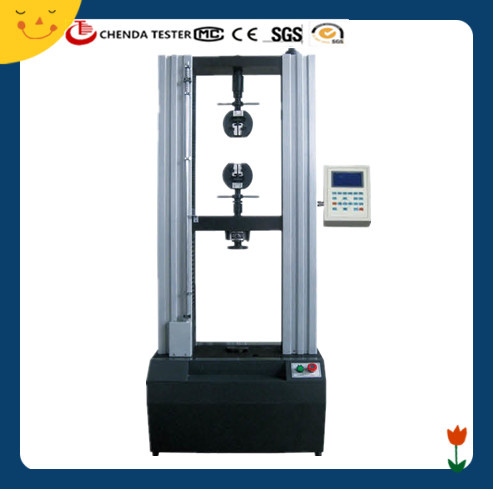

WDS Digital display electronic universal testing machines are designed and manufactured according to ASTM, ISO, DIN, GB etc standards. It is suitable for wide range of material for tension, compression, bending, shearing and low cycle test. With special grips, it can also do torsion and Brinell hardness tester. It is for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Feature:
1.The test adopt high accuracy and digital speed system, precision decelerate structure and precision drive screw ball to realize the max range of test speed. During the testing there is lower noise and smooth operation.
2.Touch button operation, LCD display screen. It includes test methods display screen, test force display screen, test operation and result display screen and curve display screen. It's so convenient and fast.
3.It can achieve the adjustment of crosshead's speed when clamp the specimen.
4.Adopt the USB connector . it can connect the computer to achieve the data's memory, analyze, print and display.

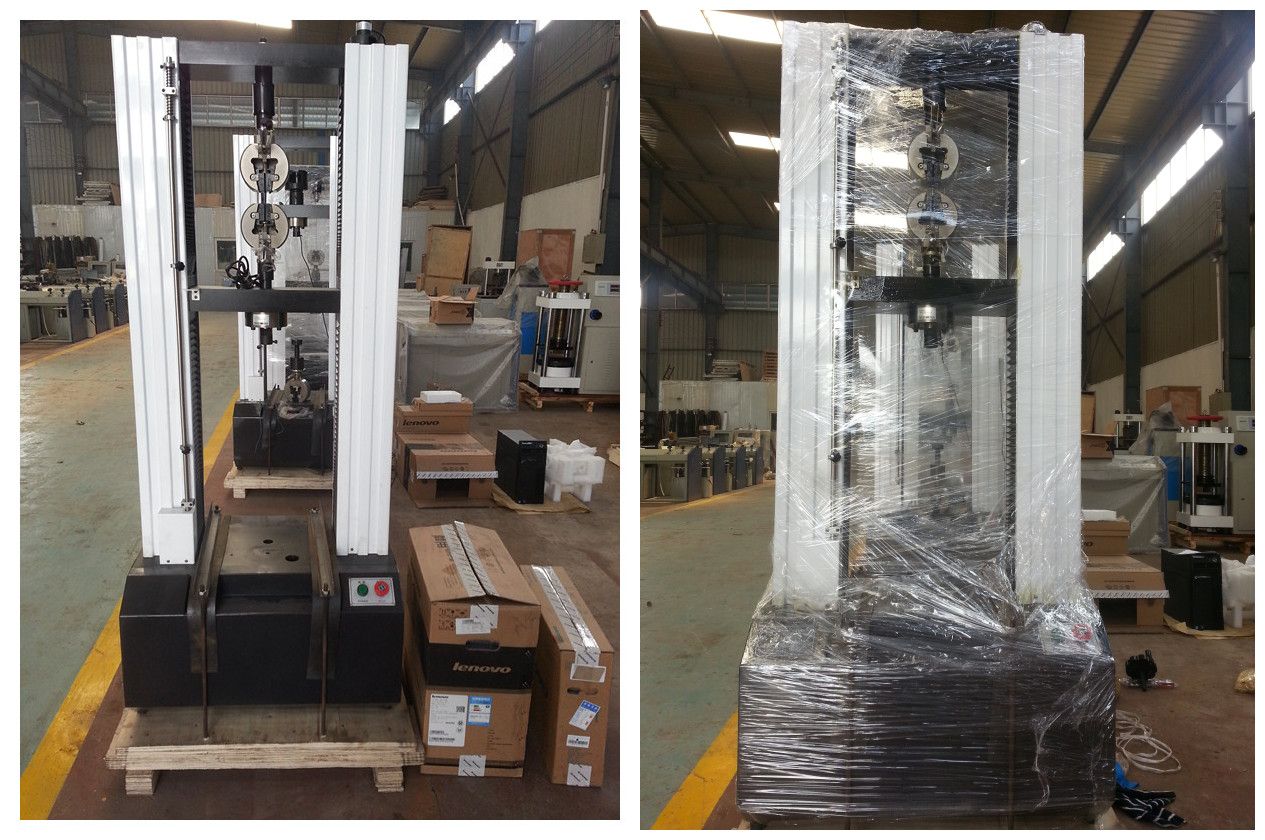

The machine is ready to go:

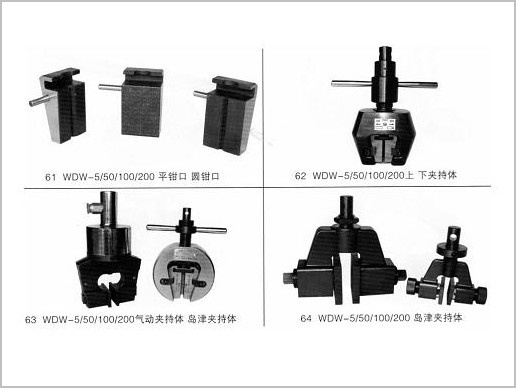

Standard accessories:
1> Test host 1
2> AC servo motor 1
3> Speed governor 1
4> Load cell 1
5> Precision ball screw 2
6> Deceleration system 1
7> Digital control system 1
8> Accompany tools 1
9> Tensile accessory 1
10> Compression accessory 1
11> Bending accessory 1
12> Technical information 1

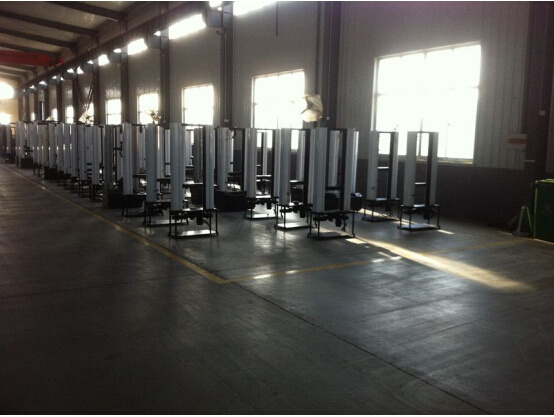

Working shop:
Technical specifications:
Max. test force | 50KN |
Measurement range of test force | 2%-100% |
Test force accuracy | ±1% |
Displacement measurement resolution | 0.01mm |
Speed of displacement | 0.01-500mm/min |
Displacement accuracy | ±1% |
Tensile test space | 550mm |
Compression test space | 600mm |
Host type | door-type |
Host dimension | 600mm×450mm×1500mm |
Prod Model: | WDS-50 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Usage: | Tensile Testing Machine |
Software: | English |
Feature: | Fast Delivery, Good Quality, Competitive Price |
Measurement Range Of Test Force: | 2%-100% |
Displacement Measurement Resolution: | 0.01mm |
Speed Of Displacement: | 01-500mm/Min |
Brand Name: | Chenda |
Type: | Universal Testing Machine |
Weight: | >2000Kg |
Power Source: | AC220V |
