Product Specifications
| Prod Model: |
WDS-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Single-Column Structure or Door Structure |
| Test Method: |
Tensile, Compression, Bending, Shearing Test |
| Control System: |
Full Colsed Lop Measuring and Control System |
| Type: |
Tensile Testing Machine |
| Weight: |
500-1000Kg |
| Power Source: |
AC220V |
| Maxcapacity: |
5kn |
Product Description

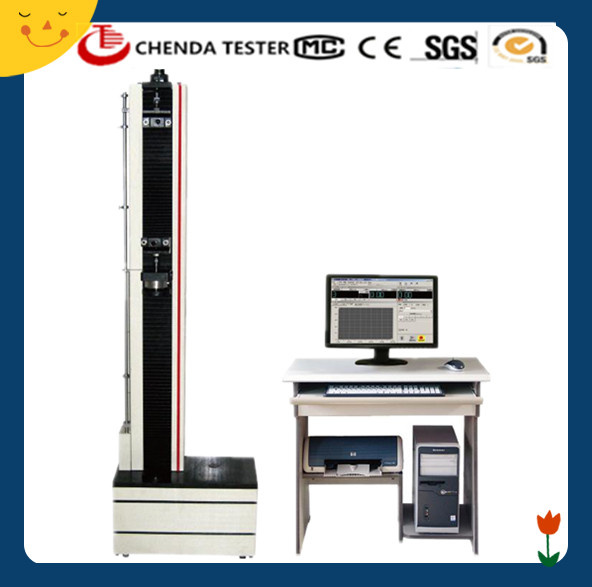

WDS Floor-standing Electromechanical Universal Testing Machine
Introduction of testing machine:
WDS digital tensile and compression machines are suitable for tensile, compression and all other special load test for non metal material for example, plastic, rubber, thread, wood, alloy, PVC, spring , electrical wire and cable, composite, profiled bar, waterproof roll, etc. Add relative optional accessories, it is easy to achieve the test of bending, shearing, peeling, friction, tearing, puncture and hardness test. They are essential testing instruments for quality testing section, university and college, research institution and industrial and mining enterprise. The machine is calibrated as ASTM E4, ISO 75001 international standard. By adding different grips it can do the test of ISO 527, ISO 8295, ISO 37, ISO 178, ISO 6892, ASTM D412, ASTM C1161, ASTM D882, ASTM D885ASTM D918, ASTM D1876, ASTM D4632 and all the force and extension JIS, DIN, BSEN testing standards.
Feature:
1> The test adopt high accuracy and digital speed system, precision decelerate structure and precision drive screw ball to realize the max range of test speed. During the testing there is lower noise and smooth operation.
2> Touch button operation, LCD display screen. It includes test methods display screen, test force display screen, test operation and result display screen and curve display screen. It's so convenient and fast.
3> It can achieve the adjustment of crosshead's speed when clamp the specimen.
4> Adopt the USB connector . it can connect the computer to achieve the data's memory, analyze, print and display.
Packaging & shiping:
Packing with standard export wooden cases.
Shipping by sea with CFS/CFS from Qingdao sea port or for your requirement.
Technical specifications:
| Max. Test force | 50/100/200/500/1000/2500/3000N |
| Measurement range of test force | 2%-100% |
| Test accuracy | ≤±1% |
| Displacement measurement resolution | 0.01mm |
| Deformation accuracy | ≤±1% |
| Adjust speed range | 0.01-500mm/min |
| Host type | Single-arm structure |
| Host dimension | 600*400*1650mm |
| Weight | 120 kg or 150kg |
Jinan Chenda Testing Machine Manufacturing Co., Ltd., was established in 2003, it is a professional comprehensive company which contains research and development, production, marketing and service in one set. The products apply widely on such fields as scientific institutions, colleges, metallurgical, construction materials, railway trains, highway traffic, rubber plastic, wire and cable and fire facilities.
Our company located in the beautiful spring city-Jinan which is the center for developing testing machine in China as well as the largest testing machine producing base. We are specialized in hydraulic universal testing machine which includes computer controlled servo hydraulic universal testing machine, computer display hydraulic universal testing machine, digital display hydraulic universal testing machine. Electronic universal testing machine which includes computer controlled electronic universal testing machine, electronic tensile testing machine, spring testing machine, panel testing machine, fire door testing machine, insulation material testing machine, Ring rigidity testing machine, electronic power testing machine, pellet testing machine, film testing machine, and so on...Friction and wear testing machine which includes: Computer screen display four-ball friction testing machine, computer display vertical universal friction and wear testing machine, screen display type friction and wear testing machine. Complete impact testing equipment and bending testing machine.
Our company regards satisfying clients' Demands as the motive for development, regards technical innovation as means of advancing, regards quality guarantee as essence of surviving and regards employees' Satisfaction as base for existence. We also shoulder the responsibility to provide our clients with first-class equipments for checking materials.
