Product Specifications
| Prod Model: |
WE-300B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Test Force: |
300kn |
| Relative Error Of Test Force: |
Less Than 1% |
| Measurement Range Of Test Force: |
4%~100% |
| Clamping Ways: |
Hydraulic Clamping |
| Round Specimen Fixture: |
Diameter 6-26mm |
| Flat Specimen Fixture: |
0-15mm |
| The Width Of Flat Specimen: |
70mm |
| Max. Tensile Test Space: |
550mm |
| Max. Compression Test Space: |
500mm |
| Motor Power: |
2kw |
| Type: |
Universal Testing Machine |
| Weight: |
1000-2000Kg |
| Power Source: |
AC380V |
| Load Way: |
Oil Pressure Transducer |
| Loading Method: |
Hydraulic |
Product Description

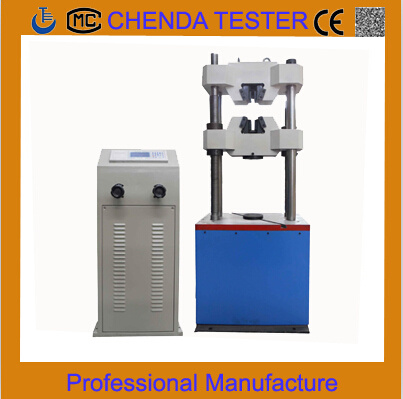

WE-300B hydraulic universal testing machine is adopting oil hydraulic power (as WAW&WEW series) to push the piston in the oil cylinder to provide loading force on specimen. It adopts analog dial dynamometer to display the test result. The loading force display on LCD monitor. The machine have been adopting in many fields like construction area, inspection area, teaching area and so on. . It can test specimen's tensile compression flexure shear and so on.
Features
1> The grips: Wedge clamp, firmly hold the specimens. Convertible grip will fit for all kinds of Specimen
2> Crosshead moving: crosshead is directed by reeling screw column. So that reduce vibrates.
3> Compression test: adopt double test-space , achieve tensile test and bending test at same time.
4> Stroke calculate: crosshead displacement is counted by a scale fixed on the column.
5> Oil cylinder: oil cylinder is put on the bottom to reduce unnecessary machine height.
Technical specification:
| No. | Technical | Specification |
| 1 | Max test force kN | 300 |
| 2 | relative error of test force | ≤±1% |
| 3 | Measurement range of test force | 4%~100% |
| 4 | Clamping ways | Hydraulic clamping |
| 5 | Round specimen fixture mm | Φ6~Φ26 |
| 6 | Flat specimen fixture mm | 0~15 |
| 7 | The width of flat specimen mm | 70 |
| 8 | Max. Tensile test space mm | 550 |
| 9 | Max. Compression test space mm | 500 |
| 10 | Control cabinet Dimensions mm | 1200×560×550 |
| 11 | Host Dimension mm | 730*590*2100 |
| 12 | Motor Power kW | 2 |
| 13 | Host weight kg | 2000 |
| 14 | Column clearance (mm) | 450 |
| 15 | Upper and lower platens size mm | Φ140 |
| 16 | Maximum piston stroke mm | 200 |
| 17 | Piston movement speed mm/min | 80 |
Standard delivery:
| No. | Name | Specification | quantity | Remark |
| 1 | Host | Chenda | 1 |
|
| 2 | Cabinet | Chenda | 1 |
|
| 3 | Measurement
and control system | Chenda | 1 |
|
| 4 | Oil pressure transducer |
| 1 |
|
| 5 | Round specimen jaw
specification | Φ6–Φ13mm Φ13–Φ26mm
|
| Standard delivery is 3 sets
tensile fixtures. The client's
can choice according to
your requirement |
| 6 | Flat specimen jaw
specification | 0-15mm | 1 |
| 7 | Compression specification |
| 1 |
|
| 8 | Bending fixture |
| 1 |
|
| 9 | Accompany document |
| 1 |
|
