Welding Flux Sj101g for Submerged Arc Welding
Product Specifications
| Prod Model: |
LH-SJ101G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Aws Specification: |
Aws A5.17 F7a2-Em12k F7A4-Eh14 |
| Equivalent To: |
Esab Ok 10.71 |
| En Specification: |
En760 SA Fb 1 55 AC H5 |
| Standard Package: |
Kraft Bag with Plastic Lining Inside |
| Quality System: |
ISO9001:2008 |
| State: |
Solid |
| PH: |
Alkaline |
| Type: |
Inorganic |
| Chemical Composition: |
Sio2+TiO2=18-25 Cao+MGO=28-35 |
| Manufacturing Method: |
Sintering |
Product Description
Specifications: EN760 SA FB 1 55 AC H5

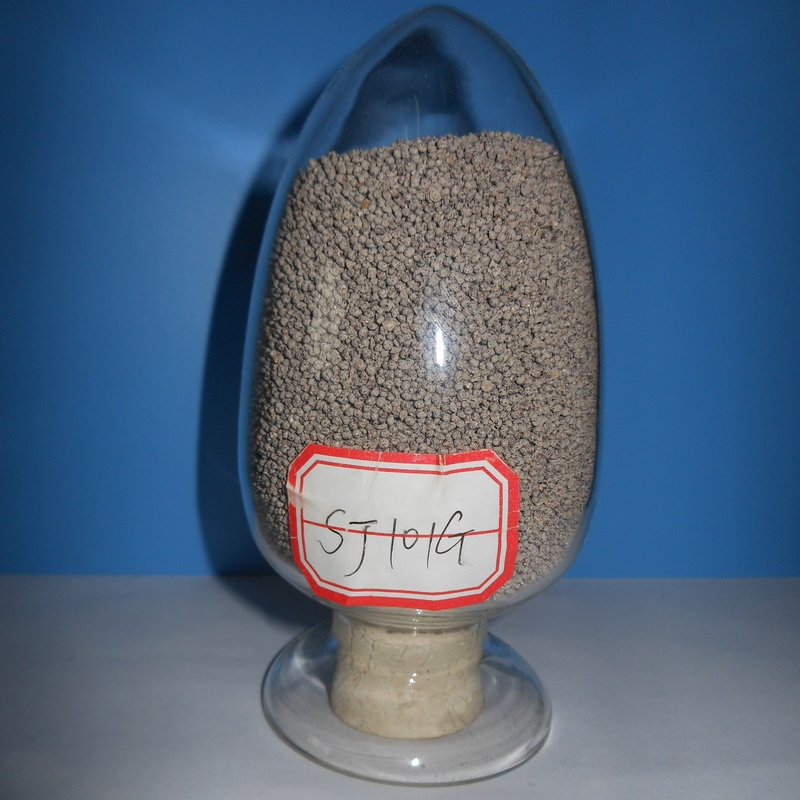

AWS A5.17 F7A2-EM12K F7A4-EH14 LH-SJ101G is a special-purpose sintered flux developed especially for welding steel pipes that are used in the project of Transporting the Natural Gas from the West to the East. With the alkalinity of approx 1.8,it is shaped as grey,round grains and its grain size is 2.01.40 mm(1445 meshes). It can be used with either AC. or DC. The welding wire is connected to the posiitive electrode when used with DC. It has stable arc combustion,good slag detachability and a good appearance of weld. The weld metal has higher low-temperature impact toughness.
As a peculiar production technique is adopted,the flux possesses better moisture resistance and good strength of grains,which may satisfy the requirements for regular transportation,storage and recycling use in welding.The flux has less specific gravity when it is bulk packed.And it is consumed less during the welding. Usage:Matching with suitable welding wires (H08C,H08MnA,H10Mn2,H08MnMoA,H08Mn2MoA),it may weld many kinds of steel pipes,such as X52,X60,X65,X70,X80 etc.It may also be used in multi-layer welding,double-side single-pass welding ,multiple-wire welding and narrow-gap submerged arc welding Chemical Composition(%)| SiO2+TiO2 | Al2O3+MnO | Ca O+MgO | CaF2 | S | P |
| 15~20 | 25~30 | 25~30 | 15~20 | ≤0.05 | ≤0.05 |
Mechanical Performance of the Deposited Metal:
WIRE | Yield
Point
s(MPa) | Tensile
Strength
b(MPa) | Elongation
δ5(%) | Charpy V Notch Impact Strength AKV(J) |
| -20C | -40C | -50C |
| EM12K | ≥400 | 490-600 | ≥22 | ≥60 |
|
|
| EH14 | ≥420 | 510-600 | ≥22 | ≥70 | ≥57 | ≥27 |
| EG | ≥460 | 530-690 | ≥22 | ≥90 | ≥80 | ≥42 |
| EA2 | ≥500 | 600-700 | ≥20 | ≥60 | ≥55 | ≥34 |
Factory Chief Introduction:

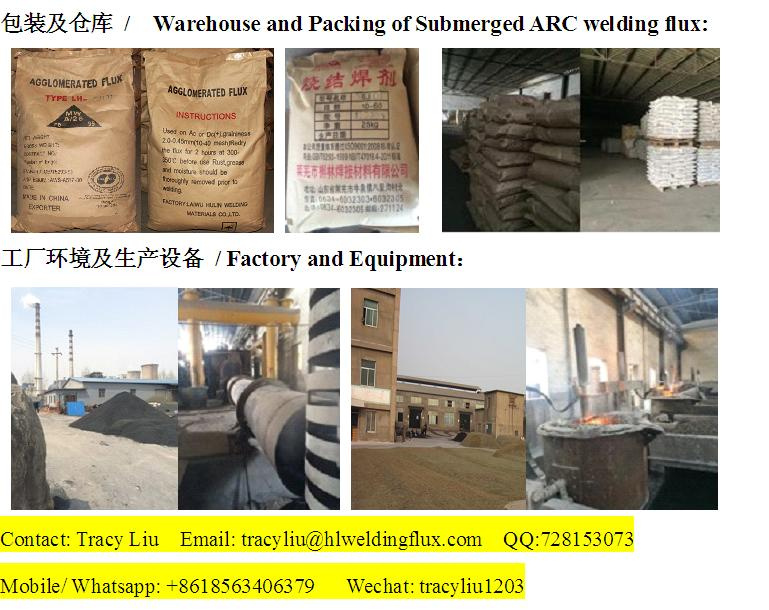

LAIWU HULING WELDING is one of leading biggest manufacturer of Submerged ARC welding flux in China. The annual capacity of production is growing and up to12000 metric tons of agglomerated flux and 5000 metric tons of fused flux. The factory has established the R&D laboratory with the advanced inspection equipments in field of welding materials. Our company is located at Laiwu City near by the Jinan International Airport, and also is near the TAISHAN Mount of Shandong Province, China.
The Submerged-ARC welding flux has been approved and passed the inspection of quality with the province grade and the national grade in China. We strictly executed and produced the welding flux according to the industrial standards ofGB/T 5293-1999, GB/T 12740-2003, GB/T17854-1999 and the China Classification Society-1996 completely. Our quality management has passed IS09001-2008 Quality System Certification.
The welding flux has been widely used in the Chemical engineering equipment, Heavy machinery, Pressure vessel, Boiler, Gas cylinder body, Spiral welded steel pipe, Steel structure building H-beam steel etc. We have been exported the welding flux to India, Indonesia, Egypt, Japan, Philippine and Jordan. The foreign customer usually purchased and preferred to the high quality Agglomerated flux ( LH-SJ101;LH-SJ301;LH-SJ501;LH-HF101G ) and Manganese oxide fused flux.
Laiwu HuLin Welding Material Co. Ltd located in the famous Taishan Mountain Welding Materials Co Ltd, the traffic is convenient. The company was founded in 1994, has an annual output of8, 000 tons and 10, 000 tons of melting solder flux agglomerated flux production lines, advanced production equipment, self-testing, with total assets of 10 million yuan. SAW is currently specializing in the production of variety of agents, one of the biggest enterprises. Due to limitations of the technology, product research and development capabilities, to provide users with various types of automatic submerged arc welding agent. Company production of "top plate" licensing flux, has passed the quality inspection at the provincial and national recognitionQuality performance of various models SAW completely GB/T5293-99. GB/T12470-03, GB/T17854-99 standards. CCS< with shipping regulations "(96) technical requirements, adoption of the ISO 9001 quality management system certification in 2002.2004 made in the People's Republic of China Import and Export Enterprises qualification certificates. "Plate cover" the great majority of users at home and abroad licensing flux sincerely thank the trust and support widely used in machinery, ships, boilersOil, Gas Pipeline, Steel and Roll, Roll repair industry. Electroslag welding steel production, welding, automatic submerged arc welding and welding medicine, welding, powder. Which LH-SJ101, LH-SJ301, LH-SJ501. LH-HJ431. LH-SJ105 massive exports of products such as Indonesia, Egypt, the Philippines, Jordan, Taiwan and other countries and regions. Always in a state of user satisfaction with the quality of products. The company's goals "guarantee 100% pass rate products towards" oak forests in Laiwu City Welding Materials Co Ltd will always adhere to the principle of "quality first. Customer "purposes. "Pursuit of brands, his go beyond the" entrepreneurial spirit, and our long-term cooperation with foreign friends were grand. And good service, you are welcome to the patrons.
