Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Barcode Printer |
| Style: |
Black and White |
| Max. Paper Size: |
57mm Paper Width |
| Type: |
Thermal Transfer Printer |
| Interface: |
Serial(RS-232c, Ttl) Interface/Parallel Interface |
Product Description

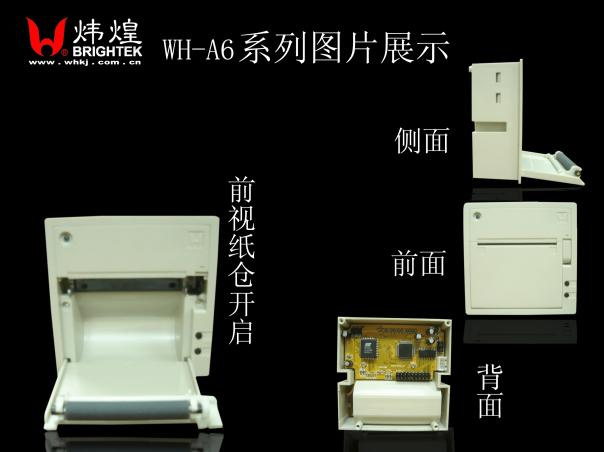

WH-A6 Thermal receipt printer 57mm Serial(RS-232C, TTL) interface/Parallel interfacer
Ultra small size rack mount printer
Very silent printing thru direct thermal printing method
Support 3.3V low voltage system
Serial(RS-232C, TTL) interface/Parallel interface
Support ASCII half-angle letter library
Abundant figure/curves/characters print function
Copy function of LCD screen
Easier paper loading
|
Item |
Specification |
|
Printing method |
Direct thermal line printing |
|
paper loading way |
easy paper loading |
|
Paper width |
57 +0.5 mm |
|
Print width |
48 mm |
|
resolution ration |
8 dots/mm(384 dots/line) |
|
life of printing head |
6x106 character lines |
|
Printing speed |
40mm/sec (when the utilization rate is 25%) |
|
Character size |
6x8dots, 8x16dots, or12x24dots |
|
Chinese character library |
GB2312, 16x16dots, or24x24dots |
|
outline dimension(WxHxD mm) |
85mmx85mmx50/37mm |
|
Installation dimension(WxH mm) |
80mmx80mm |
|
Inlaid deepness |
48mm |
|
Paper supplied |
Thermal roll paper (57mm wide, 30mmø ) |
|
Interface |
Serial(RS-232C , TTL)/Parallel interface |
|
Input Power |
DC 3.5V-9V, 15W/ DC 5V, 3A, MAX 4A/9-24V, 15W |
|
Operating temperature |
5° C ~ 50° C |
|
Storage temperature |
-20° C ~ 60° C |
|
Operating humidity |
10% ~ 80% |
|
Storage humidity |
10% ~ 90% |
Beijing Bright Technology Development Co., Ltd is a leading manufacturer of mini printers for over 16 years. The Company is a high technology firm which was established in 1998, and specializes in research, design, manufacture and sales of mini printers and interrelated products. Now we have many professional direct selling service network in Beijing, Shanghai, Hangzhou, Shenzhen, Guangzhou and other big cities in China.
