Beijing Bright Technology Development Co., Ltd. >> Wh-A7 Miniprinter, Micro Printer

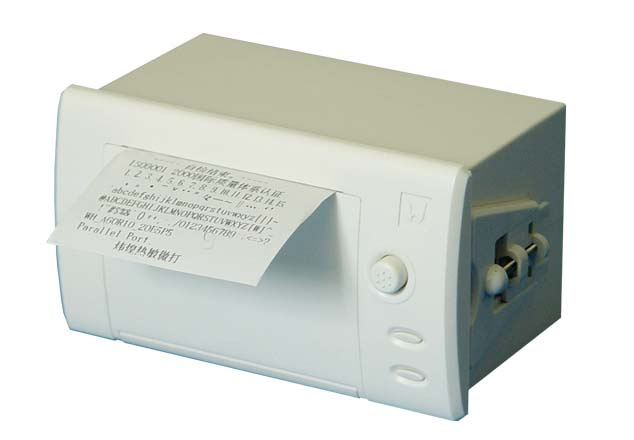

Wh-A7 Miniprinter, Micro Printer

Name: Wh-A7 Miniprinter, Micro Printer
Brand: china-manufacturer-directory.com
SKU: 675859452
Availability: InStock
Rating: 4.4 (116 reviews)

Supplier:	Beijing Bright Technology Development Co., Ltd.
Price:	US $ 37/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	EXW

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Use:	Barcode Printer
Style:	Black and White
Max. Paper Size:	57mm Paper Width
Type:	Thermal Transfer Printer
Interface:	Serial(RS-232c, Ttl) Interface/Parallel Interface

Product Description

WH-A7 Thermal receipt printer 57mm Serial(RS-232C, TTL) interface/Parallel interfacer

Stylish, delicate and elegant appearance
Very silent printing thru direct thermal printing method
High speed and low power consumption option
Support 3.3V low voltage system
Serial(RS-232C, TTL) interface/Parallel interface
Function setting, prompting for self-motion print
Abundant figure/curves/characters print function
Easier paper loading

Item	Specification
Printing method	Direct thermal line printing
paper loading way	easy paper loading
Paper width	57 mm
Print width	48 mm
resolution ration	8 dots/mm(384 dots/line)
life of printing head	6× 106 character lines
Printing speed	40mm/sec (when the utilization rate is 25%. )
Character size	6x8dots , 8x16dots, or12x24dots
Chinese character library	GB2312, 16x16dots, or24x24dots
outline dimension(WxHxD mm)	110.5mmx64mmx66mm
Installation dimension(WxH mm)	103mmx57mm
Inlaid deepness	58mm
Paper supplied	Thermal roll paper (57mm wide, 30mmø ) Roll Core Inner Diameter(12mm)
Interface	Serial(RS-232C , TTL)/Parallel interface
Input Power	DC3.5V-9V, DC 15W/5V, 3A, MAX 4A
Operating temperature	5° C ~ 50° C
Storage temperature	-20° C ~ 60° C
Operating humidity	10% ~ 80%
Storage humidity	10% ~ 90%

Beijing Bright Technology Development Co., Ltd is a leading manufacturer of mini printers for over 16 years. The Company is a high technology firm which was established in 1998, and specializes in research, design, manufacture and sales of mini printers and interrelated products. Now we have many professional direct selling service network in Beijing, Shanghai, Hangzhou, Shenzhen, Guangzhou and other big cities in China.
