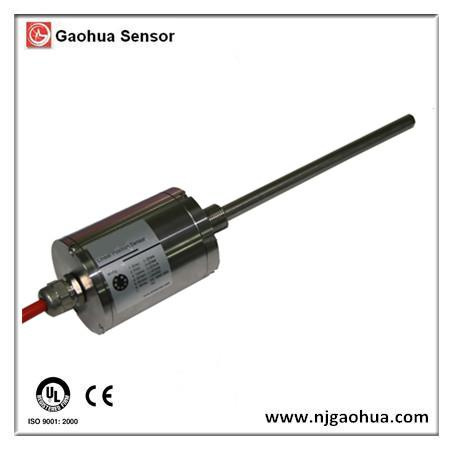

Wh-Analog Magnetostrictive Postion Sensor

Name: Wh-Analog Magnetostrictive Postion Sensor
Brand: china-manufacturer-directory.com
SKU: 699804865
Availability: InStock
Rating: 4.3 (57 reviews)

Supplier:	Nanjing Gaohua Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	WH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measurement Range:	25-7600mm
Analog Signal:	4~20madc(Min. /Max. Load: 0/500 Ohm)
Resolution:	Analog Output 16 Binary Digit D/a
Analog Signal For Choice:	0~10vdc(Min. Load>5k Ohm)
Certification:	CE,RoHS,ISO9001

Product Description

The position sensor

WH Series--Feature
Sturdy, reliable, protection ability IP69K
Absolute location output, no need to return to zero.
Non-contact measurement, no physical deterioration forever.
Nonlinearity degree, <± 0.01%F. S.
Repeatability precision, > ± 0.001% F. S.

Introduction:
WH Series sensor is specially designed for water-proof application, the cable output adopts water-proof connector, the whole sensor protection ability can achieve IP69K. Compact structure, limit installation space required.

Item Name	Index Number
Parameter Measured
Measurement range	25-7600mm
Output signal	4~20mADC(min. /max. load: 0/500 Ohm)
Output signal	0~10VDC(min. load> 5k Ohm)
Resolution	Analog output 16 binary digit D/A
Nonlinearity degree	< ± 0.01% F. S. (min. ± 50μ m)
Repeatability precision	< ± 0.001% F. S. (min. ± 1μ m)
Refresh time	0.5ms(F. S< 0.5m)
	1.0ms(0.5m< F. S< 1m)
	2.0ms(1m< F. S< 2m)
	3.0ms(2m< F. S< 3m)
Electric feature
Outgoing line	Water-proof connector.
Input voltage	24VDC(-15/+20%)
Working current	< 60mA(changing depends on F. S. )
Polarity protection	max. -30VDC
Overvoltage protection	max. 36VDC
Insulating ability	500V(between the signal GND and the housing)
Fault indication	No

Nanjing Gaohua Technology Co., Ltd is located in Nanjing, Jiangsu Province, China and built in 2000, which is an ISO9001: 2008, CE and RoHS qualified OEM SENSOR-manufacturer and professional exporter (exporting to more than 20 countries). Our present workshop covers about 4000 square meters, meanwhile we have our own advanced sensor-developing center, production center, purification center, testing center and metal processing center.

We have own patents of key technology and concentrates on pressure sensors R&D, producing variety of sensors/ transducers/ transmitters (such as pressure, temperature, humidity, Acceleration, Angle, Position, Level etc. ).

With reliable quality and reasonable price, our products are widely used in the process measurement &control of Engineering machinery/ Automotive/ Medical/ Rail transit/ Mine/ Ship/ Internet industry etc.

For important projects which refer to various sensors, we offer one-stop service including customized sensors, standard production and agent procurement.

We looking forward to coorperate with you!
