Product Specifications
| Prod Model: |
SWL30 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type2: |
Skip Loader |
Product Description

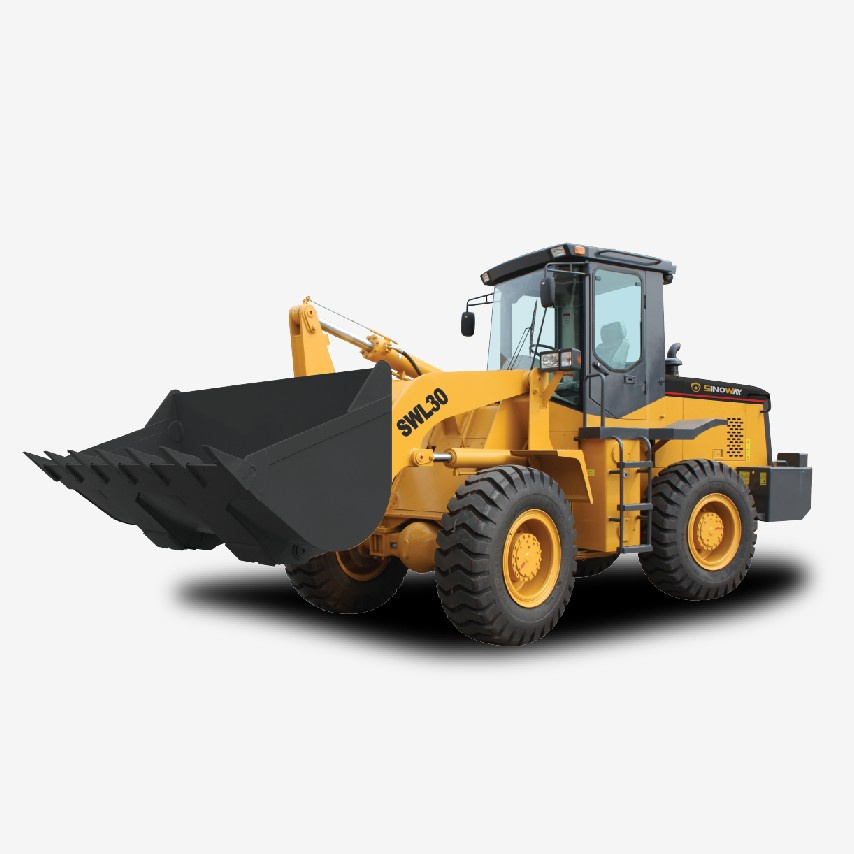

Wheel loader SWL30 is equipped with Cummins 6BT5.9 engine, 2 forward and 1 reverse power shift transmission, combined seal cylinder which obtains high seal performance and more reliability. It is a type of construction equipment which primarily used to scoop up material such as asphalt, demolition debris, dirt, gravel, logs, raw minerals, rock, sand, wood chips, etc, to another place
|
Engine |
|
Model |
Cummins 6BT5.9 |
|
Type |
Vertical,water cooled,four-stroke,direct injection |
|
Rated power |
97KW |
|
Rated speed |
2200rpm |
|
Rated fuel consumption |
200g/Kw.h |
|
Main Technical Specification |
|
Rated load |
3000Kg |
|
Operating weight |
10000Kg |
|
Rated bucket capacity |
1.7m3 |
|
Max. breakout force |
100kN |
|
Max. dump clearance |
3060mm |
|
Dump reach |
1008mm |
|
Dump angle at any position |
≥45° |
|
Digging depth with bucket bottom horizontal |
210mm |
|
Min. turning radius |
|
|
-----Outside of bucket |
5500mm |
|
-----Outside of rear wheel |
5100mm |
|
Oscillating angle of rear axle |
±11° |
|
Lifting time of bucket |
≤5.6s |
|
Lowering time of bucket |
≤3.1s |
|
Dumping time |
≤1.1s |
|
Working Equipment |
|
Model of oil pump |
CBGj2100 |
|
System pressure |
15.6Mpa |
|
Model of multi-way directional valve |
DF25.2C |
|
Pilot valve |
DJS2-UX/UU |
|
Axle And Tyre |
|
Type of main reducer |
Spiral bevel gear, single stage |
|
Gear ratio of main reducer |
5.285 |
|
Type of final reducer |
Single stage planetary |
|
Gear ratio of final reducer |
3.88 |
|
total ratio |
20.5 |
|
Max. tractive force |
97kN |
|
Tyre size |
17.5-25 |
|
Transmission System |
|
Torque Converter |
|
Type |
3-elements,single stage(Sinoway) |
|
Torque ratio |
3.0 |
|
Cooling type |
Pressure oil circulating |
|
Gear box |
|
Type |
Power shift(Sinoway) |
|
Gear shifts Forward/Reverse |
F2/R1 |
|
Traveling speed(Km/h) |
|
Forward/ReverseI |
10.8/14.5 |
|
ForwardII |
32.5 |
|
Braking System |
|
Service brake |
Air-pushing-oil disc brake on four wheels |
|
Air pressure |
0.65Mpa |
|
Parking brake |
Cable-controlled caliper disc brake |
|
Steering System |
|
Type |
Articulated fully hydraulic steering |
|
Model of steering pump |
CBY2050 |
|
System pressure |
9.8MPa |
|
Articulated steering angle |
38±1°(L/R) |
|
Dimensions |
|
Length(with bucket on ground) |
6970mm |
|
Width(to outside of wheels) |
2250mm |
|
Height(To the top of the cab) |
3228mm |
|
Bucket width |
2330mm |
|
Wheel base |
2750mm |
|
Tread |
1850mm |
|
Ground clearance |
360mm |
|
Service Capacities |
|
Fuel tank |
150L |
|
Engine crank case |
20L |
|
Converter and gear box |
32L |
|
Hydraulic tank |
140L |
|
Driving axles(F/R) |
6.5/6.5L |
|
Brake |
4L |
