Product Specifications
| Prod Model: |
JGW-110F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Video: |
Videophone, Network Camera |
| P2p: |
P2p, Plug to Easyly Use |
| Integrate: |
Video Call, Local&Remote Monitoring |
| USD/TF: |
with USB and TF Card Slot |
| Support: |
Support for Local Storage & Online Upgrade |
| Code: |
Learning Code Automatically |
| Function: |
Robot Function, More Function |
| Type: |
Home Alarm |
| Application: |
Indoor |
| Signal Transmission: |
Wireless Alarm |
| Working Mode: |
Active |
| Sensor Type: |
Video Motion Alarm |
| Working Principle: |
Electro-Optical Type |
| Usage: |
Personal |
Product Description

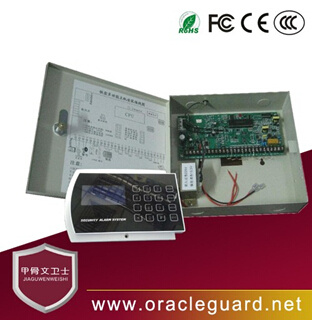

JGW-110F wired or wireless burglar alarm with standard CID networking
Features & Functions:
JGW-110F;wired or wireless burglar alarm;project host with iron case,standard CID networking;
·8 wired and 32 wireless defense zones;
·Connecting 4 sets of telephone No.for alarming and 5 sets phones No.of alarm centers;
·Phone or GSM net dial-up alarm(need to add);
·Password keyboard/controller can set defense zones optionally; 4PCS keyboard can be connected;
·Modes of defencse zones can be setted up on demand;
·Time of the horn sound;timing and remoted setted up & withdraw;
Different defence area can be setted up to dial different telephone No. when alarming;
·Mobile phone with free of charge can defense & withdraw, or message alarm remind remotely;
·with internet:powerful standard CID & 4+2 digital communication protocol;
·with internet: defense & withdraw with free of charge;
·with internet: more quickly and less money to alarm through GPRS;host can be inserted phone card or with internet optionally;
·with internet: 12 v lights and light box can be connected outside;
·with internet:Programming or electricity
changes & timing testing report to center regularly;
·with internet:With the function of patrol patrolling;know patrol location accurately;
Office:
Workshop:
Why choose us?
1. Professional manufacturer in producing alarm systems & video surveillance, ect. for 15 years.
2. Factory direct sales with competitive price but high quality
3. All the other accessories can be added optionally
4. Pass many certifications, e.g.: CE&FCC, etc.
5. Quick response
6. Small MOQ
7. Strong OEM/ODM ability
8.10 minutes to airport
Welcome to visit our factory.
Looking forward to receive your inquiry and our nice cooperation in near future!
Pease contact us by following information:
Tel:+86-0755-27757254 Cell phone:+86-15817395430 Fax:+86-0755-27757585
Skype2:sales01 oracle
|
Power |
AC 220V±15%, (Optional battery: 6-FM-7 12V/7Ah lead-acid battery) |
|
Wireless Working Frequency |
433.92MHz |
|
|
|
AUX Output Current |
<500mA |
|
System Output Current |
≤800mA (The total current of the system's outer equipments should be controlled in this standard.) |
|
Wireless Communication Distance |
≥500m in the open area (PIR to Unit); |
|
≥300m in the open area (Remote Controller to Unit); |
|
≥300m in the open area (Siren to Unit). |
|
Size |
258*260*77 mm (L*W*H) (without considering the height of antenna) |
|
|
|
|
Technologic Parameter of GSM Module |
|
|
Size |
85.1mm*82.5mm*1.6mm (L*W*H) |
|
Weight |
57g |
|
Working environment |
Relative humidity: 30% ~75% |
|
Popular pressure: 86~106Kpa |
|
Working temperature |
-20 degree~+60 degree |
|
Reserve temperature |
-25 degree~+80 degree |
|
Working voltage |
DC12V:10.5V~14.5V, DC5V:4.7V~5.3V |
|
Working current |
Standby ≤14mA(DC12V), ≤40mA (DC5V); |
|
Max ≤180mA (DC12V), ≤60mA (DC5V) |
|
Power |
≤2.1W |
|
Wireless receiving frequency |
850MHz,900MHz, 1800MHz,1900MHz |
|
Wireless remitting frequency |
≤2W (GMS900,850MHZ), |
|
≤1W (GSM1800, 1900MHz) |
|
Wireless impedance |
50Ω |
|
Time to startup the GSM module |
≤2.8 minutes |
|
|
|
Add extra function |
|
1@addition:with patrolling fuction |
|
2@addition:with voice operation function,need another |
|
3@addition;with switch of alarm for signal output,need |
|
4@addition;with 16 wire,need another |
|
5@addition: with high power wireless networking,need another |
Shenzhen Oracle Security Technology Co., Ltd is the pioneer of the professional security products manufactory, which integrates the developing and sales of burglar alarm & security equipment technology as a whole. With more years and enough experience in the alarm technology research and developing, we innovate many new technology and leading products of security. Intra-industry, we are the pioneer manufactory to develop the security products, like voice alarm products with LCD screen & touch screen; TCP/IP network alarm products, all of which can be well compatible with CID Ademco international networking protocol.
Oracle, to be the birthplace of security Burglar Alarm in China, our factory pay high attention to the innovation research as well as quality control. All our products can pass the testing of National ministry of public security as well as CCC certification, Quality Management System-ISO certification, with the standard record and filing under the Technical Supervision Bureau Department of the State, CE certification of European Union, and FCC certification, etc for exporting. Our products are sold to more than 100 countries and regions in the world.
Nowadays, With the alarm products become an inseparable part of people's life, security market is becoming mature gradually, with increasing demand of market. Oracle will continuously explore and self-transcend in the field of product innovation and mass production of the factory. We will always adhere to "the attitude of honest credit & high efficiency". To meet people's different security requirements simultaneously, we also provide the customers with attractive&reasonable price with the excellent service.
We sincerely welcome domestic and overseas buyers, engineering project wholesaler, OEM&ODM partners to visit our factory, and are willing to work with you to create the cause of security.
