Product Specifications
| Prod Model: |

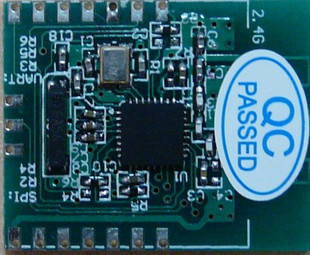

AP1000/NRF24AP2/NORDIC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
2.4GHz Band
RF Channel number: 78
Data rate: 1Mbps(on air)
Modulation: GFSK
RF Power: Max 0dBm
Rx Sensitivity: -85dBm
Work: ANTWireless Network Protocol
Maximun Network Node Number: 2^32
Built-in PCB Loop Antenna
Size: About 25x20mm with Antenna
Single logical channel
Range: About 10M (LOS)
Supply Voltage: 1.9~3.6V
Average Current: ~38 uA
Channel Closed Current: ~2 uA
TX Peak Current: 15mA@0dBm
RX Peak Current: 17mA
Deep Sleep Current: 0.5uA
XUNTONG TECHNOLOGY Co., Ltd, as an promotor of short range distance wireless communication technology, is the first one who brings the Nordic Semiconductor short range distance wireless products into China Market, and has more than over 12 year's experience in providing professional short distance wireless solution, from chip to solution, and from design to product, you can get into this professional field quickly with no fear of trouble in the rear, we can share the world-lead-class wireless technology together.
XUNTONG TECHNOLOGY Co., Ltd has overall wireless short range distance solution, can meet different application demands:
433/868/915/2400MHz-all range of ISM Band wireless short range solution
2.4GHz high quality wireless digital audio solution, include wireless speaker, wireless headset, wireless microphone
2.4GHz Wireless model car, model airplane, toy solution
2.4GHz wireless tags, active RFID
2.4GHz wireless sport, health, fitness solution
2.4GHz wireless mouse, keyboard, computer peripherals.
