| Supplier: | Quanzhou Karassn Security Protection Electronics Co., Ltd. |
|---|---|
| Price: | Negotiable/Piece |
| Min Order: | 10/Piece |
| Quantity:: | |
| Trade Terms: | FOB,EXW,CIF |
|
|
| Prod Model: | KS-858E |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: | 433MHz |
| Type: | Industry Alarm |
| Application: | Indoor |
| Signal Transmission: | Wireless Alarm |
| Working Mode: | Active |
| Sensor Type: | Infrared Alarm System |
| Working Principle: | Electro-Optical Type |
| Usage: | Smoke |

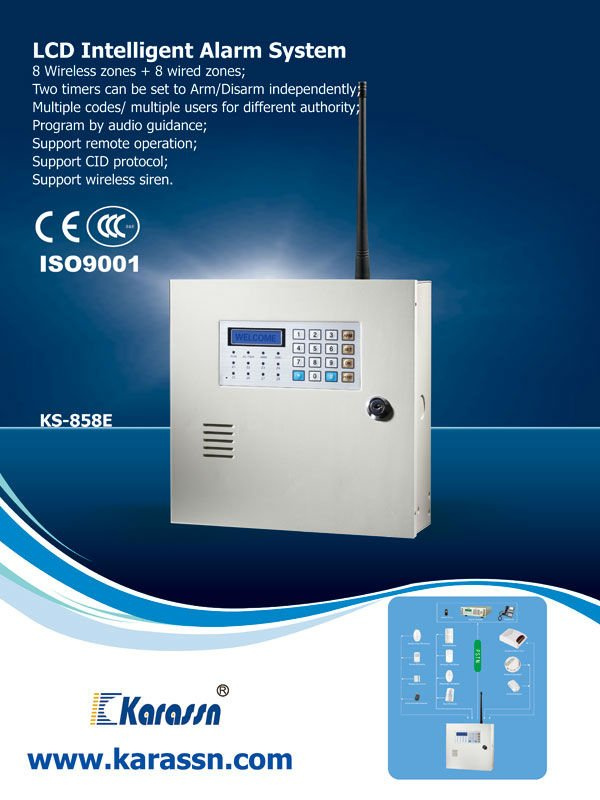

Wireless Network Auto Dailing Fire Alarm
KS-858
Product Summary of Wireless Network Auto Dailing Fire Alarm:
It is a Telephone Networking Alarm Console with LCD display and 4*4 keyboard, and there are 16 zones (8 wireless zones + 8 wired zones). It works with wireless remote controllers (up to 8 remote controllers), various wireless/wired detectors, sensor switch, hand button, and foot switch and wireless/wired sirens. And they make up a completed safeguard system to guard against theft, fire, and so on. It can be stored up to 5 groups of pre-set telephone numbers (fixed/mobile telephone number and pager number). Once alarm happens, the main unit will activate siren to make alarm sound immediately; and dial pre-set telephone numbers at the same time. It is widely used in residence, marketplace, finance system and enterprise.
Main Features of Wireless Network Auto Dailing Fire Alarm
* It is easy to operate with 4*4 keyboard and lattice LCD display.
* Voice pre-recorded. It guides to operate by sound and correctly reports alarm information when alarming.
* 8-wired + 8 wireless zones
* 8 sub zones can be programmed independently. And the zone list can be set freely in each sub zone, 8 remote controllers and 8 user's codes can separately program for 8 sub zones to ARM/DISARM independently.
* Code classification, 1 installer code, 1 master code, and 8 common user 's codes.
* Support to ADEMCO CONTACT ID communication protocol
* 5 groups of telephone numbers (mobile and pager number) can be set.
* DTMF (double-tone multi frequency) and pulse dialing mode are available.
* Alarm delay time (00-99 seconds) and Arm delay time (00-99 seconds) can be set for appointed zones.
* Completed self-check function, Main unit/detector disassembly, AC power cut, backup battery lower of main unit and detector will activate alarming.
* Wired zone respond speed is 50ms-750ms, and the circuit types (Normal Open, Normal Close and Line-end resistance) can be set freely to connect with all kinds of wired detector.
* Linkage with wired/wireless Siren
Technologic Parameter of Wireless Network Auto Dailing Fire Alarm
Power Supply
AC220V±15%, (Optional battey:12V/7Ah lead-acid battery)
Auxiliary Output Power
less than 550mA
Siren Output Current
less than1.5A
Wireless Working Frequency
433.92MHz
Working Environment
Temperature:
0°C-55°C
Humidity
40-70%
Size
26.4*26*8cm (L*W*H) excluding length of antenna
Weight
3.8KG
(Excluding backup battery)
Total Output Current
≤1.5A (the current of outer current should not over it)
Wireless Communication Distance
The distance between PIR detector and alarm host
(in open area≥400m)
The distance between wireless door sensor and alarm host
(in open area≥200m)
The distance between wireless siren and alarm host
(in open area ≥400m)
Wireless Network Auto Dailing Fire Alarm
| Model | KS-858 |
| Brand | KARASSN |
| Power Supply | AC220V± 15%, (Optional battey: 12V/7Ah lead-acid battery) |
| Auxiliary Output Power |
< 550mA |
| Siren Output Current | < 1.5A |
| Wireless Working Frequency | 433.92MHz |
| Working Environment |
Temperature: 0 degree-55 degree |
| Humidity | 40-70% |
| Weight |
3.8KG (Excluding backup battery) |
| Total Output Current | ≤ 1.5A (the current of outer current should not over it) |
| Wireless Communication Distance |
≥ 400m in open area (PIR to Unit) ≥ 200m in open area (Door sensor to Unit) ≥ 400m in open area (Siren to Unit) |
| Size | 26.4*26*8cm (L*W*H) excluding length of antenna |

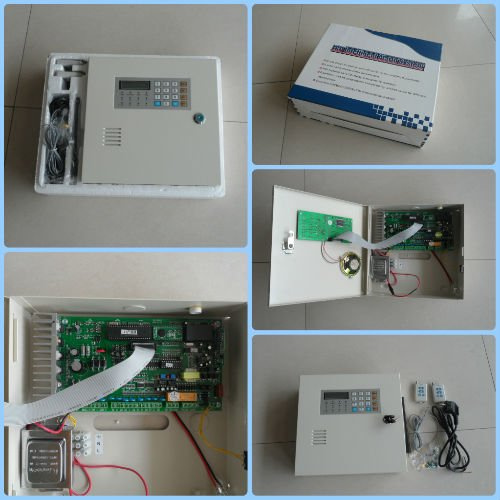

| Standard Packaging | Quantities |
| Main panel | 1pc |
| Wireless remote controller | 2pcs |
| Color-cardboard box | 1pc |
|
Wireless Accessories |
PIR Detector |
KS-307DCT Wireless PIR Detector |
| KS-307WT Wireless PIR Detector (inner-antenna) | ||
| KS-306FCT Wireless Curtain PIR Detector | ||
| KS-308XCT Wireless Ceiling PIR Detector | ||
| Door Sensor | KS-21AW Wireless Door Sensor | |
|
Remote Controller |
KS-13B Wireless Remote Controller | |
| KS-13E Wireless Remote Controller | ||
| KS-15A Wireless Remote Controller (inner antenna) | ||
| KS-12B Wireless Remote Controller | ||
| Keypad | KS-31A Wireless Keypad | |
| Repeater |
KS-55B Wireless Outdoor Repeater (longer distance PIR to unit) |
|
| Panic Button | KS-11D Panic Button | |
| Smoke Sensor | SS-168 Smoke Sensor | |
| Gas Sensor | MT-338A Gas Sensor | |
| Siren | KS-70A Wireless Outdoor Siren | |
| KS-70B Wireless Indoor Siren | ||
|
Wired Accessories |
PIR Detector |
KS-218T Wired Pet Immune PIR Detector |
| KS-208T Wired Outdoor PIR Detector | ||
| KS-208MT Microwave + PIR Detector | ||
| KS-300DLT Wired PIR Detector | ||
| KS-306FLT Wired Curtain PIR Detector | ||
| KS-308XLT Wired Ceiling PIR Detector | ||
| Glass Break | PA-456 Wired Glass Break Sensor | |
| Siren | ES-626 Wired Siren | |
| ES-627 Wired Strobe Light Siren |
