Product Specifications
| Prod Model: |
YD-EM-9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Description: |
Vertical Glass Edging Machine |
| Model: |
Yd-Em-9 |
| Weight: |
3000kg |
| Glass Thickness(Mm): |
4-19 |
| Color: |
for Option |
| CE: |
Certificate |
| Total Nr. Of Spindle: |
9 |
| Profile: |
Flat/Arris |
| Min.Size Of Glass(Mm): |
100×100 |
| Glass Speed(M/Min): |
0.8-3.5 |
| Type: |
Glass Edging Machine |
| Certification: |
CE |
| Control System: |
PLC |
Product Description

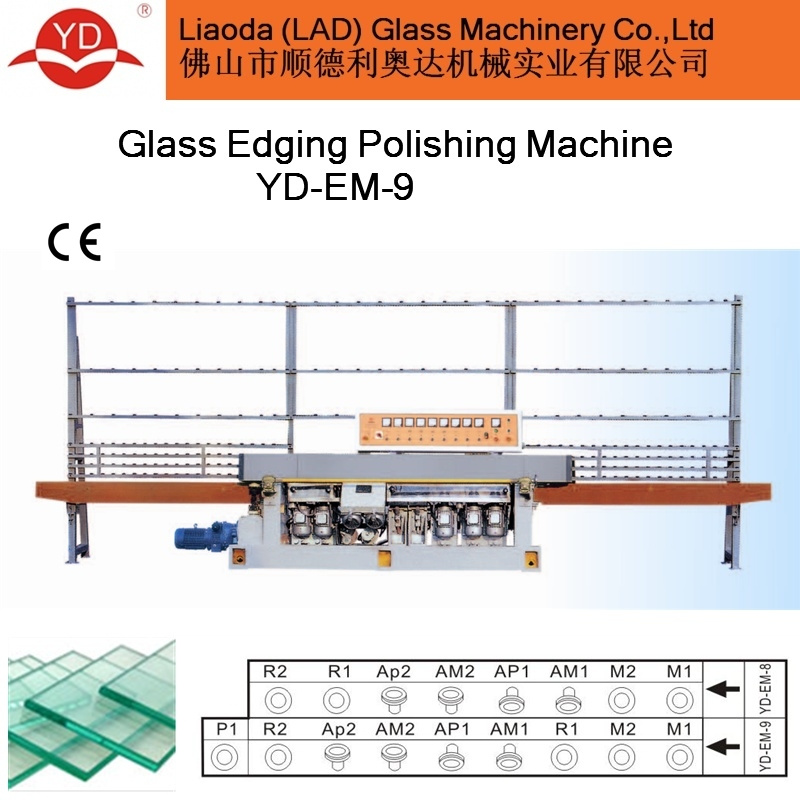

YD-EM-9 is able to process straight-line edge and 45 degree arris with high clearance on glass. Sturdy structure enables 24 hours running without stop, speed is adjusted by frequency inverter or stepless speed varistor, spindle quantity can be added as required; Manual, micro computer, PLC Control and pnuematic polishing for option;Technical parameter
The min processing size: 80*80mm
Processing thickness: 3~27mm
Processing speed: 0.7~5m/min
Weight: 3000KGS
Size: 7000mm*1000mm*2600mm
Spindle quantity: 9 spindles
Machine brief introduction:
Stepless speed adjust

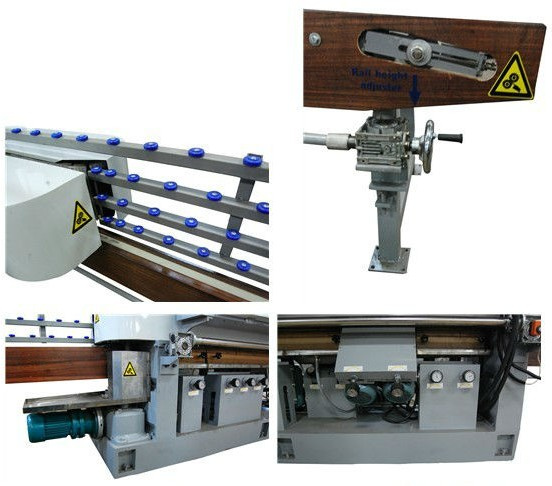

Handle wheel thickness, angle adjustment, beveling width adjustment
High speed inducing motor. Speed 2480rppm/min.
Chain for conveyer
Stainless steel water tank
Cast steel machine base
Aluminum or steel glass support for option
| Model Number | YD-EM-8 | YD-EM-9 | YD-EM-9-45 | YD-EM-10 | YD-EM-10 ex |
| Total no. of spindle | 8 | 9 | 9 | 10 | 10 |
| Profile | Flat/arris | Flat/arris | Flat/arris | Flat/arris | Flat/arris |
| Glass thickness(mm) | 3 ~ 20 | 3 ~ 26 | 3 ~ 26 | 3 ~ 28 | 3 ~ 30 |
| Min. size of glass(mm) | 80 x 80 | 80 x 80 | 80 x 80 | 80 x 80 | 80 x 80 |
| Glass speed (m/min) | 0.7~ 5 | 0.7~ 5 | 0.7~ 5 | 0.7~ 5 | 0.7~ 5 |
| Power(kW) | 15 | 16 | 16 | 18 | 18 |
| Outer dimension (m) | 6.5 x 1 x 2.6 | 7 x 1 x 2.6 | 7 x 1 x 2.6 | 7 x 1 x 2.6 | 8 x 1 x 2.6 |
| Weight(kg) | 2700 | 3000 | 3000 | 3000 | 3000 |
LIAODA(LAD) Glass Machinery Co., Ltd. is the consignee of Yuanda Glass, which is one of the leading glass machinery designer and fabricator in China in manufacturing popular glass cold and hot processing machinery.

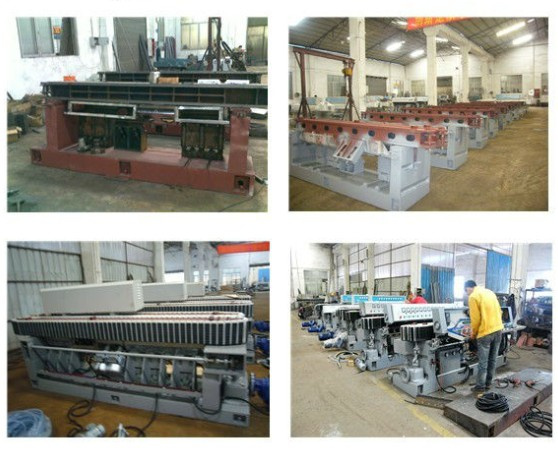

Since 1988 we have worked out first Chinese glass edging machine, with our continuous research and development, in 2000, our first horizontal flat glass tempering furnace has came into being, now hundreds of our intelligent and diligent machines have been running at the sites of domestic and overseas.
All our engineers have years of working experiences in glass fabricating and glass machine manufacturing. On the base of absorbing the latest technologies, we know very well the advantages and disadvantages of all types of existing glass machines, therefore our compact design and sophisticated manufacturing center enable us to construct the most top quality of glass machines at the possible lowest cost.
A LITTLE MORE PRACTICAL, A LITTLE MORE INNOVATIVE is our Motto, on the way of modernization and globalization, we will commit ourselves to satisfy your requirements and our full experiences will absolutely be beneficial to any kind of your needs in flat glass processing.
