Shanghai Jinghao International Trade Co., Ltd. >> Wl Flowmeter/High Accuracy Electronic Digital Turbine Flow Meter

Wl Flowmeter/High Accuracy Electronic Digital Turbine Flow Meter

Name: Wl Flowmeter/High Accuracy Electronic Digital Turbine Flow Meter
Brand: China-Manufacturer-Directory.com
SKU: 772667175
Availability: InStock
Rating: 4.6 (139 reviews)

Supplier:	Shanghai Jinghao International Trade Co., Ltd.
Price:	US $ 40-190/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,CIP

Product Specifications

Prod Model:	JH-WLFM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display:	LCD
Temperature:	-20c~120c
Power Supply:	Battery
Output Signal:	Pulse, 4-20mA
Body Materia:	Aluminium
Connection:	Screw Thread
Pressure:	4.0MPa
Accuracy:	>?à1%
Main Application:	Corrosive Liquid/Gas
Sensor:	Tube/Flange
Type:	Turbine Flow Meter
Measuring Media:	Liquid
Measuring Principle:	Mechanics
Size:	3/4",1",1.5"

Product Description

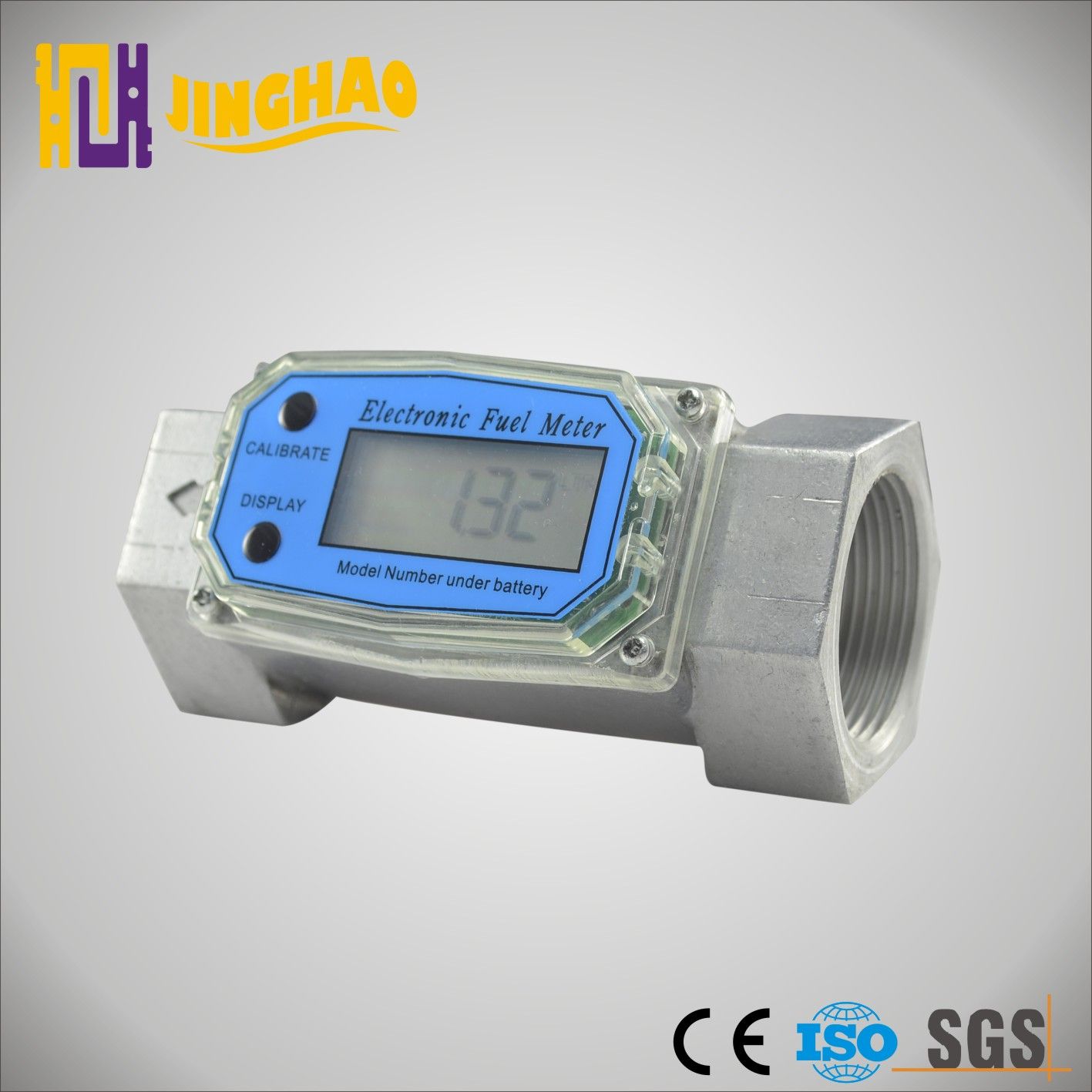

Electronic Digital Turbine Flow Meter

Flow meter adopts low-power CPU core, Turbine sensor signal generated by the amplified
pulse is conveyed to the CPU in, CPU operation in accordance with the flow coefficient
value will flow to a 5 digits on LCD display, LCD reading range of 0.01 ~ 99999.
In addition to the normal work flow meter flow measurement of liquids, but also can
automatically Factory flow coefficient (k) and user manual calibration of the flow coefficient (k) calibration.

Features:
1. High precision, durable and compact turbine flowmeters.
2. Modular design allows for use with Output Modules, Sensors and Remote Transmitters.
3. Local Display Computer features: 2 Totals (1 Resettable, 1 Cumulative); Factory Calibration in gallons and litres; 2 User Calibrations and Flowrate.
4. Internal parts are simple to replace for easy maintenance.
5. Lightweight, compact design allows for easy installation.

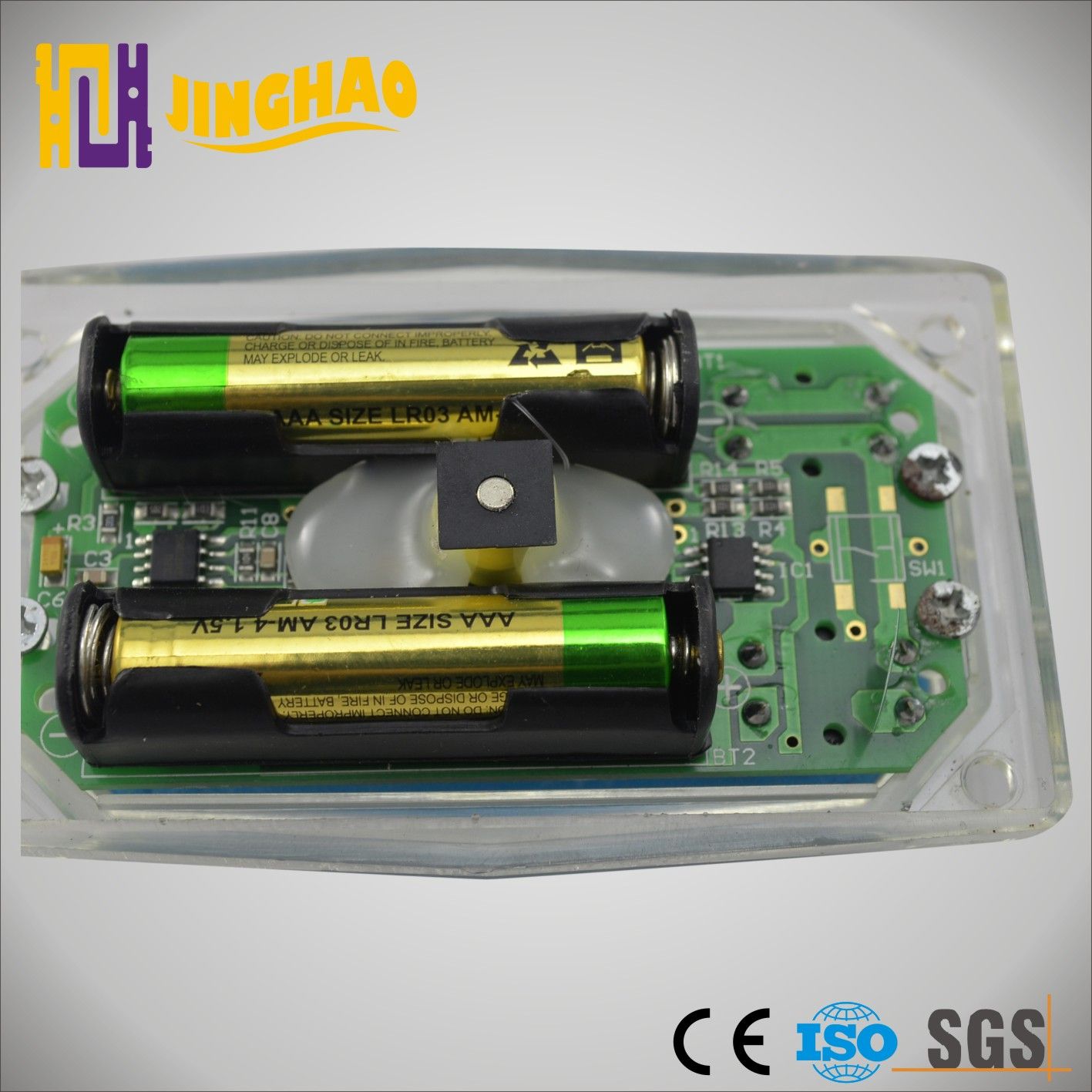

6. Powered by Lithium batteries for approximately 9, 000 hours.

Technical parameters:

Fitting Type:	NPT or BSP
Body Material:	Aluminum
Meter Sizes Available:	3/4" 1" 1-1/2"
Flow Range :	3/4"	2 - 20 GPM (7.6 - 75.7 LPM)
	1"	5 - 50 GPM (18.9 - 190 LPM)
	1-1/2"	10 - 100 GPM (38.0 - 380 LPM)
Accuracy (% of Reading):		Turbine Only	Turbine w/Computer
	3/4"	± 1.5%	± 1.0%
	1"	± 1.5%	± 1.0%
	1-1/2"	± 1.0%	± 0.75%
Repeatability:	± 0.1%
Pressure Rating:	300 PSI / 21 BAR
Operating Temperature Range:	-40°F to +250°F (-40°C to +121°C)
Typical K-Factor:	3/4"	1,100
	1"	565
	1-1/2"	215
Wetted Materials:	Body:	Aluminum
	Bearings:	Ceramic
	Shaft:	Tungsten Carbide
	Rotor:	PVDF
	Rings:	316 Stainless Steel

Frequency Range :	3/4"	37 - 370 Hz @ 2 - 20 GPM
	1"	47 - 470 Hz @ 5 - 50 GPM
	1-1/2"	36 - 360 Hz @ 10 - 100 GPM
Recommended Strainer Size:	3/4"	55 mesh
	1"	28 mesh
	1-1/2"	55 mesh
Maximum Flow:	3/4"	30 GPM (113.6 LPM)
	1"	75 GPM (284 LPM)
	1-1/2"	150 GPM (568 LPM)
